45 Degree 90degree Wood Mdf Board Cutting Panel Saw Woodworking Machine 380V

45 Degree 90degree Wood Mdf Board Cutting Panel Saw Woodworking Machine 380V

45 Degree 90degree Wood Mdf Board Cutting Panel Saw Woodworking Machine 380V
45 Degree 90degree Wood Mdf Board Cutting Panel Saw Woodworking Machine 380V
Categories Panel Furniture Solution
Model Number: TS-45/90
Price: CN¥14,619.80/sets 1-2 sets
type: Panel Saw
use: Woodworking
style: Horizontal
place of origin: Shandong, China
brand name: Superstar
voltage: 380/220V
dimension(l*w*h): 3050*3390*870mm
warranty: 2 years
weight (kg): 650
power (kw): 7
key selling points: Easy to Operate
max.cutting height at 90°(mm): 80
max.cutting height at 45°(mm): 60
max. length of workpiece (mm): 2800
machinery test report: Provided
video outgoing-inspection: Provided
core components: PLC
Main saw power: 5.5kw
Auxiliary saw power: 1.1kw
Main saw speed: 4000-6000r/min
Revolving speed of auxiliary saw: 7000-8000r/min
Sliding Table Size: 3000*375mm
Scoring Blade Size: 120*20mm
Voltage: 380V
Size of the whole machine: 3000*1100*1200mm
Weight: 650kg
Place of Origin: Shandong, China
Brand Name: GTS
Contact Now
Company Info.
Qingdao Xincheng Information Technology Co., LTD
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

45 Degree 90degree Wood Mdf Board Cutting Panel Saw Woodworking Machine 380V

Size Of The Whole Machine 3000*1100*1200mm 45 Degree 90degree Wood Mdf Board Cutting Panel Saw Woodworking Machine 650kg
Product Description
45 degree 90degree Wood Mdf Board Cutting Panel Saw Woodworking Machine

Sliding Table Saw Feature:

This sliding table saw is a high quality machine produced according to international advanced technique.High-quality parts guarantee the machine's precision and long life. Wider duralumin sliding table is firm and durable. High Precision steel guide has been processed ultrahard, which guarantees guide precision and enduring Electric lifting saw blade is easy for operating. Clear dial shows saw blade inclination angle. It is the necessary working tool for furniture production and decoration industry.
Parameters
Model Number
TS-45
Color
Black and Orange (can be Customized)
Sliding Table Size
3000*375mm
Max.Cutting Width
1250mm
Push Table
2800/3000/3200/3800mm
Blade Tilting Angle
0~45°
Main Blade Size
300*30mm
Scoring Blade Size
120*20mm
Main Blade Speed
4000-6000r/min
Scoring Blade Speed
7000-8000r/min
Blade Up and Down System
Manual
Blade Angle Tiling System
Manual
Main Mortor Power
5.5kw
Scoring Morttor Power
1.1kw
Net Weight
600kg
Gross Weight
650kg
Working Voltage
380V/3PH/50Hz (option)
Size of the whole machine
3200*1100*1200mm

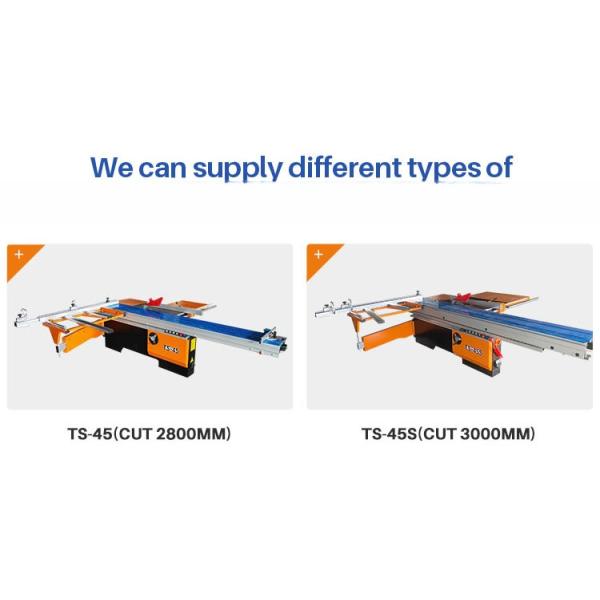

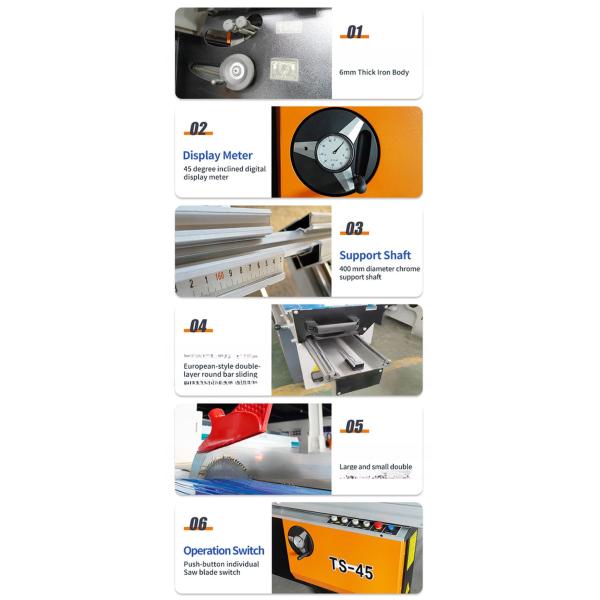

Detailed Images
Sample & Application

We have exported more than 95 countries like UK, Turkey, Italy, France, German, Russia,Canada, USA, Mexico, Vietnam, Thailand, Korea, India,etc.

Superstar CNC products provide Continuous innovation, easier work, better life.
Why Choose Us
FAQ
Q: Are you manufacturer ? A: Yes,We are factory since 2003. Also we have more than 10 countries overseas warehouse and department. Q: Can I get a machine according to my own requirements? A: Sure.We accept OEM and ODM Q: This is the first time I use this kind of machine, is it easy operate? A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well. Q:What’s your MOQ and delivery? A:Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you. Q: How is your after sales service? A: Our sales are online for 24-hours. We can also supply overseas install service. Q: If my machine is broken. Can you repair it for me? A: Yes. We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.
