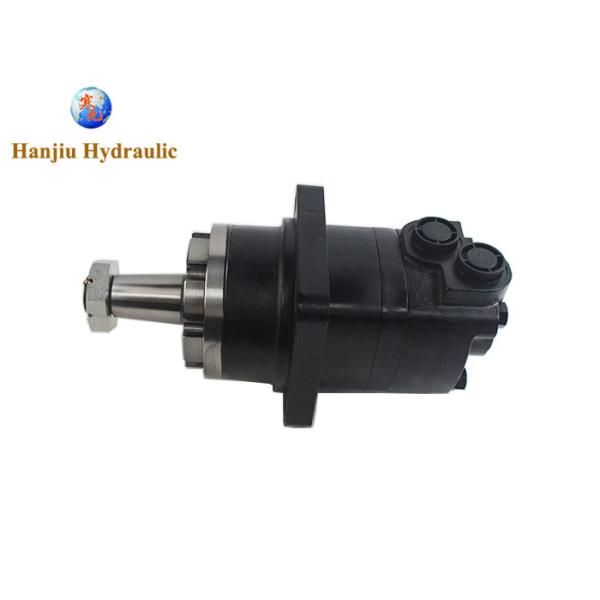

Cast Iron 4 Bolt Disc Geroler 110-1084-006 Hydraulic Orbit Motor 205.5 CM3/R 4 Bolt 12.54 CID 12.54 IN3/R O-Ring Port

Cast Iron 4 Bolt Disc Geroler 110-1084-006 hydraulic orbit motor 205.5 CM3/R 4 Bolt 12.54 CID [12.54 IN3/R] O-Ring Port

Quick review:

110-1084-006

• Displacement: 12.54 CID Mount: 4 BOLT WHEEL Shaft: 1.62 TAPERED - SLOTTED HEX NUT
• Port: 1.06 SAE O RING STAGGERED SERIES: 4000 SERIES DISPLACEMENT: 205.5 CM3/R [12.54 IN3/R]
• MOUNTING TYPE: WHEEL, 4 BOLT; 139.70 [5.500] PILOT DIA.14.27 [.562] DIA. HOLES ON 165.10 [6.500] DIA. BOLT CIRCLE. OUTPUT SHAFT: 41.28 [1.625] DIA. TAPERED WITH 11.112 [.4375] SQ X 31.75 [1.250] STRAIGHT KEY, 1.250-18UNEF-2A THREAD WITH SLOTTED HEX NUT
• PORTS: 1.0625-12 UN-2B SAE O-RING PORTS - STAGGERED PORTS CASE FLOW OPTIONS: .4375-20 UNF-2B SAE O-RING PORT WITH CHECK VALVE

features

• Standard, wheel or bearingless configurations
• Lowest pressure drop motor in the industry
• Highly-efficient Geroler motor provides energy savings

Here are examples we make 109- series motors , motor models contact us to get

Geroler motors offer several key advantages that make them well-suited for a wide range of applications

1. High Torque Output

Geroler motors are renowned for their exceptional torque output, even at low speeds.

This makes them ideal for heavy-duty applications where significant rotational force is required.

2. Smooth Operation

Geroler motors provide a smooth and pulsation-free operation, ensuring consistent performance and reduced noise levels.

3. Compact Design

Geroler motors are known for their compact size, allowing for efficient use of space in various installations.

4. Reversibility

Geroler motors can operate in both clockwise and counterclockwise directions, providing versatility in applications requiring reversible motion.

5. Wide Speed Range

Geroler motors are capable of operating over a wide range of speeds, making them adaptable to various requirements.

6. High Efficiency

Geroler motors generally exhibit high efficiency, converting hydraulic energy into mechanical energy with minimal losses.

7. Reliability and Durability

Geroler motors are designed for reliability and durability, ensuring long-term performance and minimal maintenance.

8. Versatility

Geroler motors are available in various sizes and configurations, making them suitable for a wide range of applications across different industries.

9. Low-Speed Performance

Geroler motors are particularly well-suited for low-speed applications, where they can maintain high torque output without sacrificing efficiency.

10. Ease of Maintenance

Geroler motors typically require minimal maintenance, with simple procedures for inspection and repair.

These advantages make Geroler motors a valuable choice for applications demanding high torque, smooth operation, and reliability.
