Retractable Military Style Galvanized Defensive Hesco Barriers

Retractable Military Style Galvanized Defensive Hesco Barriers

The Application for Defensive Hesco Barriers:

Application
Perimeter Security Barrier and Defence Wall
Temporary Fort and Command Post
Observation Points and Border Checkpoints
Barrier Fortification System
Equipment Revetment
Explosives and Contraband Search Areas
Guard Posts
Personnel and Material Bunkers
Shooting Range
Flood Control Retaining Wall
Protection Engineering of Seaside Area
Protecting Existing Structures
Coastal Erosion Control

Brief Introduction of Defensive Hesco Barriers

1. Wire Diameter: 4.00mm

2. Mesh Size: 3" (76.2x76.2mm), Sometimes according to Panel size to adjust the Hole size.

3. Panel Size: 0.61x0.61M

4. Diameter of Spring: 4.0mm, which is used for connecting the panels,

5. Geotextile:heavy duty UV non-woven polypropylene;

6. Color: Grey and Military Green,Sand color etc.

7. Total Size: 0.61x0.61x1.22M

8. No. of Cells: 2 Cells

9. Finish: Hot dipped galvanized

10. Package: Packed in pallet, with Plastic Film or Shrink Film

The Technical Specifications from SX 1 to SX 19

operational principle

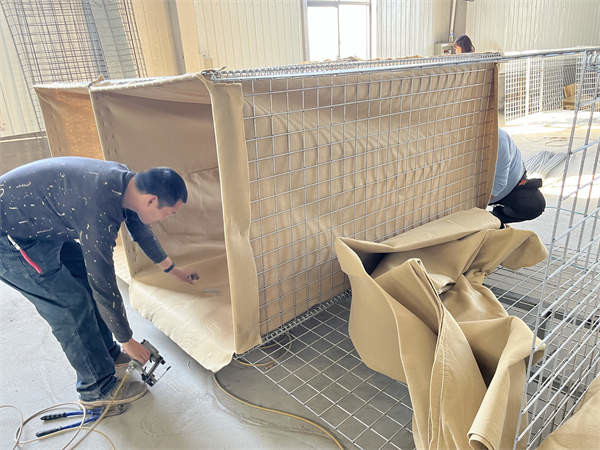

Used Spring to connect the mesh panel together into a rectangle container, which have many cells or single cell, Fill with sand,earth,cement, stone etc as a wall for protection fence.

A geotextile-lined unit suitable for filling with earth, sand, gravel, crushed rock and other granular materials. Geotextile-lined welded Gabion
mesh barrier coated to ASTM A 856. All wires conform to the BS EN 10218-2:2012. Zinc-Aluminum coatings are to BS EN 10244-2:2009,
where appropriate. The geotextile is heavy-duty, non-woven, permeable, polypropylene fabric

The Advantages of Defensive Hesco Barriers:

1. Lifetime

The unit must be made of a Wire Mesh basket which is manufactured from Galvanised coated, welded mesh. The mesh must be made of rust protected alloy materials.The Wire Mesh must have a guaranteed life of not less than 5 years while exposed to environment and 10 years when in store.

2. Collapsible

Mesh Panel is joint by spring which is a circle, Mesh Panle can turn 360° unobstructed, so, when shiping the goods, it is collapsible to save space.

3. Quick Displacement

When you want to use it in another place,Just to move it, It can use many times

4. Easy to repair

As a protection Wall to prevent Bullets and shells, there would be small part damage, Just use one piece of welded wire mesh panel insert into the earth and cover the damage part, it can also work long time.
