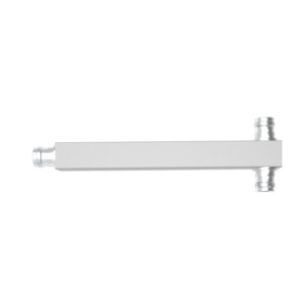

698-4200MHz N Female Power Splitter With ROHS Compliance

Categories RF Power Splitter
Brand Name: Vinncom
Model Number: VN-PS-0742-ONx-S-xxx
Certification: ISO 9000 ROHS
Place of Origin: China
MOQ: 5 pcs
Price: negotiable
Payment Terms: L/C, D/A, D/P, T/T
Interface: N Female
Frequency Range: 698-4200MHz
Impedance: 50
Application: Indoor & Outdoor
ROHS: Compliance
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

698-4200MHz N Female Power Splitter With ROHS Compliance

600-4200MHz 4.3-10 Female Power Splitter


  • Wide band frequency

  • Good VSWR at all ports
  • Good PIM

VN-PS-0742-ONx-S-150.pdf

Part NumberVN-PS-0742-ONx-S-xxx
Operating Frequency ( MHz )698-4200
Impedance ( Ohm )50
Power Partition Coefficient@ONx2-way3-way4-way
VSWR≤1.25≤1.25≤1.25
Split Loss (dB)≤3.3≤5.4≤6.5
IM3 (dBc @ 2×43dBm)@xxx-150
ApplicationIndoor & Outdoor
Degree of ProtectionIP65
Operating Temperature ( ℃ )-40 ~ + 80
InterfaceN Female
Handling Power (Watt, max)300
Peak Power (Watt, max)1200
Dimension (mm)(L×W×H, excl connector)213.5 × 25 × 25240.24× 25 × 25269.54× 25 × 25
Packing Dimensions (mm,L×W×H)260 × 80 × 40320×80×60320×80×60
Packing Carton Size (mm,L×W×H)540 × 420 × 140655×420×140655×420×140
ROHS ComplianceYes
