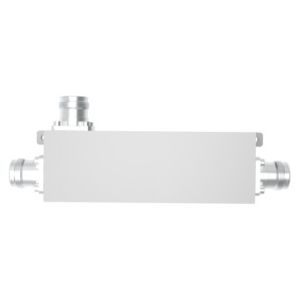

380-6000MHz 4.3-10 Female Directional Coupler

Categories RF Directional Coupler
Brand Name: Vinncom
Model Number: VN-DC-03860-OPx-160
Certification: ISO 9000 ROHS
Place of Origin: China
MOQ: 5 pcs
Price: negotiable
Payment Terms: L/C, D/A, D/P, T/T
Connector Type: 4.3-10 Female
Frequency Range: 380-6000MHz
Operating Temperature: -40°C~+80°C
VSWR: ≤1.35
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

380-6000MHz 4.3-10 Female Directional Coupler

380-6000MHz 4.3-10 Female Directional Coupler


  • Good PIM up to -163@43dBm*2
  • Good returen loss
  • Good VSWR

VN-DC-03860-OPx-160.pdf

Part NumberVN-DC-03860-OPx-160
Operating Frequency ( MHz )380-6000MHz
Impedance ( Ohm )50
VSWR1.35
Coupling (dB)5 ± 1.86 ± 1.87 ± 1.810 ±215 ± 2.220 ± 2.2
Insertion Loss (dB)≤3.00≤2.20≤1.7≤1.1≤0.8≤0.3
Isolation (dB)@MHz≥20≥21≥22≥23≥30≥35
IM3 (dBc) @ 2×43dBm-160
ApplicationIndoor & Outdoor
Degree of ProtectionIP65
Operating Temperature ( ℃ )-40 ~ + 80
Interface4.3-10 Female
Handling Power200(Watt, max)
Peak Power1200 (Watt, max)

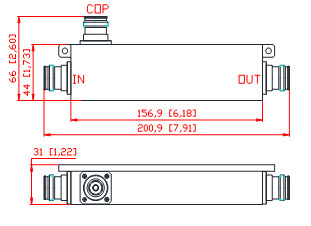

Dimension (mm)156.9X44X31
Net Weight (g)675± 5%
Packing Dimensions (mm)240 × 80 × 35
Packing Carton Size(mm)420 × 250 × 160
ROHS ComplianceYes

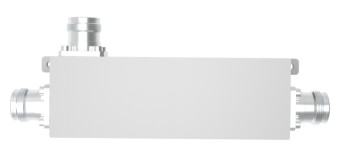

Buy 380-6000MHz 4.3-10 Female Directional Coupler at wholesale prices
