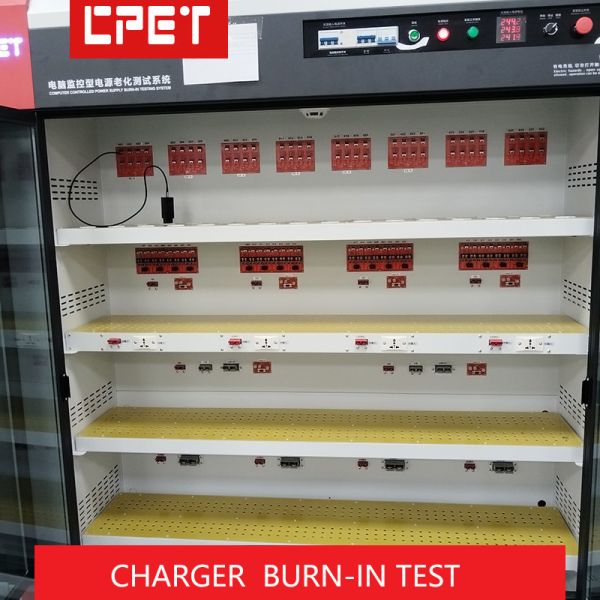

Customizable Aging Test Room for High Frequency Charging Equipment with 200W/CH Power and CC+CV Load Mode

Categories Charger and Adapter Aging Rack Machine
Brand Name: CPET
Model Number: CP-300603
Place of Origin: China
MOQ: 2sets
Price: 7500dollars/set
Payment Terms: L/C
Supply Ability: 30sets/month
Delivery Time: 30 work days
Packaging Details: Wooden case packing
Power of single channel: 200W/CH
Load Mode: CC+CV
Guarantee period: 1year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Customizable Aging Test Room for High Frequency Charging Equipment with 200W/CH Power and CC+CV Load Mode

Aging Test Room For High Frequency Charging Equipment Manufacturer Customized




Application Scope


Power sources such as chargers, power adapters, wireless charging, Power Tool Charger,Sweeper Charger,etc.


excellent function

1. Set various load parameters and real-time monitor for parameters such as voltage, current and power by computer software
2. Be of CC/CV load modes
3. Support parallel channel connection under CC load mode and meet the requirements for power extension of products
Performance parameters
ModelCP-300603
Power of single channel200W/CH
Quantity of load channels192CH
Scope of load voltage2-100V
Scope of load current0.2-10A/CH
Load precision±(1%+0.1%FS)
Load ModelEnergy Saving
Load ModeCC+CV Mode
Number for plies of product zoneSingle side
Height for plies of product zone(mm)170
Width of products zone(mm)Series CC mode 340
Temperature control of
products zone
Temperature control type of products zone: normal temperature-60℃
Structure material of trolleyElaborately processed and produced with cold-rolled sheet
Mode of main controlMonitoring software for burn-in of computer-monitoring type power
Input mode of UUTMulti-purpose socket/speaker wire clip/custom design
Interface mode of UUTConnecting fixture boards (with various specifications) for first choice/custom design
Customizable fast charge
function
QC, PO, FCP, SCP, PPS, etc.
External dimension2050*880*1900/custom design
