| Categories | Inverter Aging Test Equipment |
|---|---|
| Brand Name: | CPET |
| Model Number: | CP-NBQ51 |
| Place of Origin: | China |
| MOQ: | 2sets |
| Price: | 8800dollars/set |
| Payment Terms: | L/C |
| Supply Ability: | 30sets/month |
| Delivery Time: | 35 work days |
| Packaging Details: | Wooden case packing |
| Certification: | CE,ROHS |
| Trolley height: | Cold Rolled Sheet |
| Guarantee period: | 12 months |
| Burn-in product output current: | 80A/bit |
| Company Info. |
| Shenzhen CPET Electronics Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

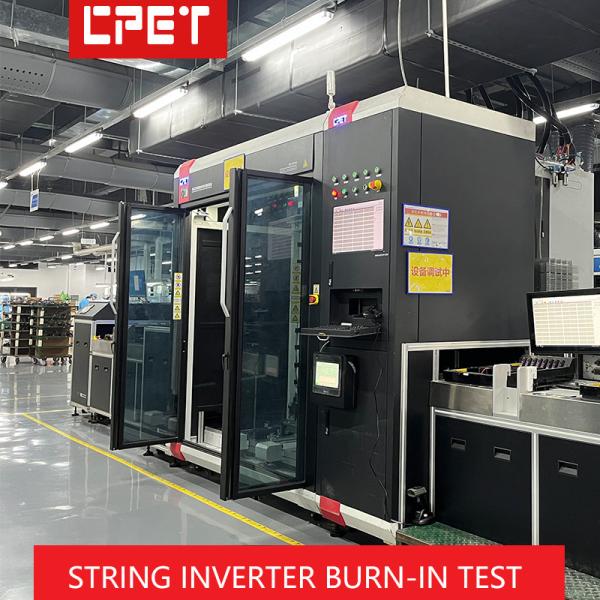

MicroInverter String Inverter Burn-In Test Cabinet Support
Customization

| System | System structure | 1 control cabinet + 2 burn-in cabinets |
| Overall size | 5100*1500*2050mm | |
| Total floor area | 5100*2500mm(Including operation area) | |
| Total input voltage | Three-phase five-wire system 220Vac (rated) | |
| Total input current | 300A | |
| Total input power | 160kW | |
| Application ambient temperature | 0-40℃ | |
| Application environment humidity | 0-95% | |
| Burn-in cabinet | Burn-in bits/cabinet | 9 bits/cabinet |
| Burn-in bits/layer | 3 bits/layer | |
| Burn-in product power | 40kW/bit | |
| Burn-in product input voltage | 200-1000Vdc/bit | |
| Burn-in product input current | 100A/bit | |
| Burn-in Product Load Category | 35kW/bit | |
| Burn-in product output voltage | Three-phase five-wire | |
| Burn-in product output current | 80A/bit | |
| Bit Status Indicator | No | |
| Input power | 380kW | |
| Feedback power | 315kW | |
| Constant temperature range | Room temperature+5°C-60°C | |
| Constant temperature accuracy | ±5°C | |
| Number of temperature control points | 5 | |
| Open type | Sliding door/folding door/side door | |
| Bit space size | 560*550*480mm | |
| Minimum floor height | 300mm | |
| Top floor height | 1320mm | |
| Product area air duct direction | Left and right ventilation | |
| Cooling method | Air cooling | |
| Material | 1.5mm cold rolled sheet | |
| Monitoring software | Display running information |
 |
| Show status information |
 | |
| Display accuracy | ±(1%+0.2%FS) | |
| Control precision | ±(1%+0.2%FS) | |
| Bad way of reporting | Audible alarm | |
| Scan speed | 5S |
|   |
