Energy Saving Hydraulic Double Pre-Heater Thermoplastic Paint Preheater Kneader

Categories Thermoplastic Kneader
Brand Name: HUA QUN
Model Number: CK800/CK1000/CK1200
Certification: ISO
Place of Origin: CHINA
MOQ: 1 Set
Price: Pending
Payment Terms: L/C, T/T
Supply Ability: 5 set per day
Delivery Time: 5-8 working days
Packaging Details: Packed by wooden box
Name: Per-Heater
Type: CK700/CK800/CK1000/CK1200
Warranty of core components: 1 Year
Net weight: 700kg/1000kg/1200kg
Hydraulic tank volume: 40 litres
Application: Road marking
Engine: 15PS electric start evaporation water cooled diesel engine
Material: Steel
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

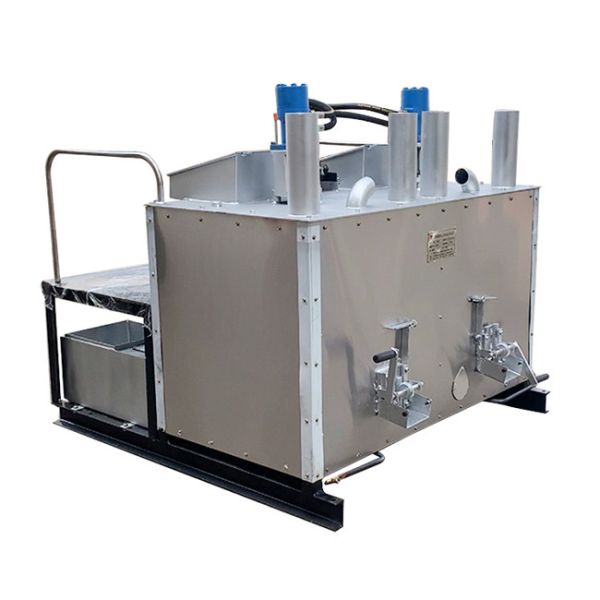

Energy Saving Hydraulic Double Pre-Heater Thermoplastic Paint Preheater Kneader

Energy Saving Hydraulic Double Pre-Heater Thermoplastic Paint Preheater kneader


CK800/CK1000/CK1200 pre-heater is one of the mainequipment for thermoplastic marking construction.It is one kind of thermoplastic paint melting equipmentwith the advantages of high efficiency, quality meltingmaterials,less fuel consumption, energy saving, easyoperation and high safety.


Thermoplastic powder paint will be melted into liquid condition after being heated up to 180°c+, then it can be transferred to thermoplastic road marking machine for traffic line markings.


In the process of marking lines ,the first step is to heat and stir the powdery paint in the preheater until it turns into the liquid paint ,then pours the paint into the marking machine for the marking operation . Since the melting level of the paint has a direct bearing on the quality of marking lines ,the preheater plays an important role among the thermoplastic marking devices and is an essential part for melting paint .


Technical Parameters
TypeCK700/CK800/CK1000/CK1200
Engine15PS electric start evaporation water cooled diesel engine
Hydraulic systemIntegrated multiplex hydraulic control valve , forward and reverse stir CVT
Hydraulic motor typeBM type
Hydraulic tank volume40 litres
The Kettle360x2kg/500x2kg/600x2kg ,Hiigh carbon steel stainless Steel cylinderthe bottom of the pot ,erect paddle mixer
StruictureMultiple heat preservation: normal insulation material, compositeinsulation material, heat transfer oil;
Heating systemMultiple heating methods: normal LPG burner or LPG energy efficient burner
Safety deviceOverload relief device specially designed, can prevent misoperation
SizeCK700:1750X1620X1190mm(Special low kettle for underground parking lot ]CK800:1730X1620X1570mmCK1000:1750X1620X1700mm CK1200:1860X1820X1700mm
Net weight700kg/1000kg/1200kg
