| Categories | GATE VALVE |
|---|---|
| Brand Name: | PVPT |
| Place of Origin: | China |
| MOQ: | 1 pc |
| Price: | EXW FOB CFR CIF |
| Payment Terms: | L/C, T/T, Western Union |
| Delivery Time: | 30 days after receiving the down payment |
| Packaging Details: | wooden case, pallet or as per customer request |
| Pressure: | PN10/PN16 |

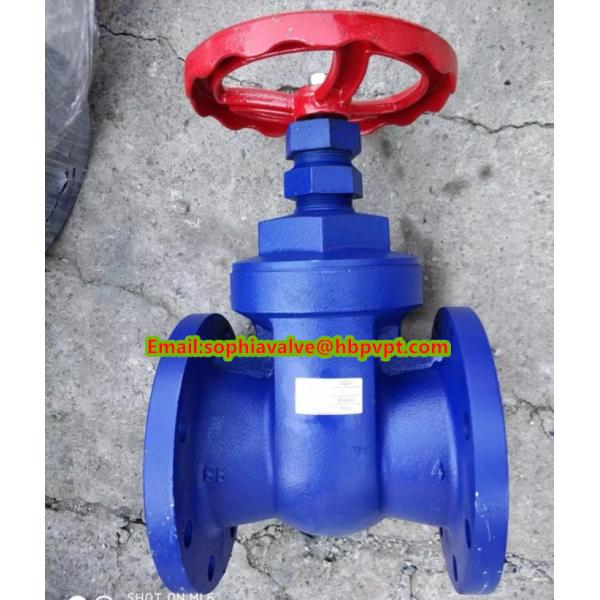

high quality BS PN10/16 cast iron gate valve
Specifications
1.Production Size:2”-12” DN50-DN300mm
2.Pressure range:PN10,PN16
3.Design Standard:BS3464
4.Face to Face:BS5150
5.Flange Standard:EN 1092-2
6.Testing Standard:ISO 5208
Main material of parts:
1.Body:EN-GJL-250
2.Bonnet:EN-GJL-250
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Stem Nut:brass
5.Wedge Ring:Bronze B62/Brass
6.Disc:AEN-GJL-250
7.Seat:Bronze B62/Brass
8.Bonnet Gasket:Graphite
9.Packing:Graphite
10.Hand wheel:EN-GJS-500-7
|
