Portable EV Charger Burn In Chamber with 100kW Power 200A Current and 16 Bits/Cabinet Customized Burn In Test Equipment

Categories EV Charger Burn In Chamber
Brand Name: CPET
Model Number: CP-DC21
Place of Origin: China
MOQ: 2sets
Price: 9200dollars/set
Payment Terms: L/C
Supply Ability: 25sets/month
Delivery Time: 40 work days
Packaging Details: Wooden case packing
Warranty: 1year
Application ambient temperature: 0-40℃
Burn-in Product Load Category: 15kW/bit
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

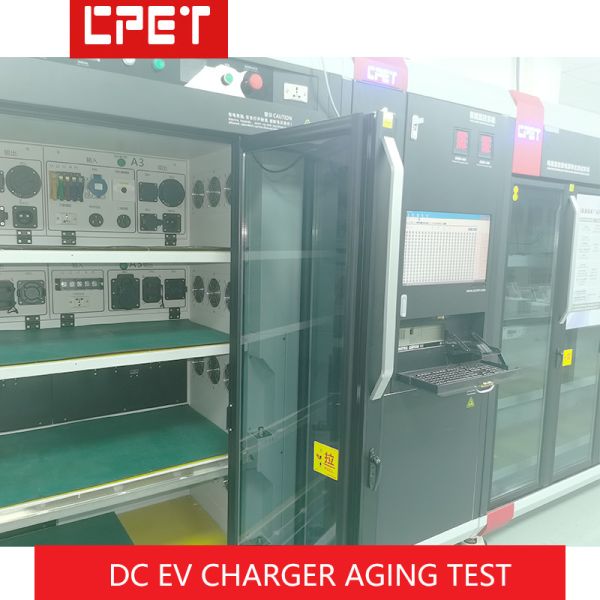

Portable EV Charger Burn In Chamber with 100kW Power 200A Current and 16 Bits/Cabinet Customized Burn In Test Equipment

Portable Ev Charger DC Fast Charging Burn-In Test Equipment Support Customized

Performance parameters
SystemSystem structure1 control cabinet + 2 burn-in cabinets + 4 trolleys
Overall size3800*1800*1900mm
Total floor area3800*2500mm(Including operation area)
Total input voltageThree-phase five-wire system 220Vac (rated)
Total input current200A
Total input power100kW
Application ambient temperature0-40℃
Application environment humidity0-95%
Fire protection requirementsMaterials meet UL 94V0 rating
Environmental requirementsMaterials comply with Rohs, WEEE requirements
Safety requirementsComply with IEC62368 international standard design requirements
Burn-in cabinetBurn-in bits/cabinet16 bits/cabinet
Burn-in product power18kw/bits
Burn-in product input voltage220Vac (single phase)/380Vac (three phase)
Burn-in product input current32A/bit
Burn-in Product Load Category15kW/bit
Burn-in product load current100-800Vdc
Auxiliary voltage of Burn-in products50A/bit
Auxiliary current of Burn-in productsUniversal plug (L1/ L2/ L3/N/PE)
Power Connector TypeGb DC charging interface
Signal Connector TypeRJ45
Input power288kW
Feedback power240kW
Constant temperature rangeRoom temperature
Number of temperature control points5
Volume size2050*600*1900mm
Dimensions in the product area1800*1600mm
Product area layers4th floor
Bit space size450*420mm
Minimum floor height250mm
Top floor height1350mm
Cooling methodAir cooling
Material1.5mm cold rolled sheet
TrolleyVolume size1900*500*1900mm
Layers4th floor
Layer spacing420mm
Load bearing800kg
Mobile wayCasters
Monitoring
software
Display running information

Input voltage, current, power, output voltage
(DC source module communication or product communication)

Show status information

Not Connected / Vacant / Passed / Under Voltage / Under Current / Over Voltage / Over Current /
No Output / Protection

Display accuracy±(1%+0.2%FS)
Control precision±(1%+0.2%FS)
Bad way of reportingAudible alarm
Report formatCSV format
StatisticsYield/CPK/Time Distribution
MES dockingSupport
Scan speed5S
Control cabinetControl systemWindow 10
Display mediumComputers and Monitors
Manipulating mediumMouse and keyboard
Communication methodCable
Type of protectionOver current, leakage, over temperature, smoke, emergency stop
Alarm methodSound and light alarm, remote network
Heat dissipation typeAir cooling
Maintenance modePost maintenance
Material1.5mm cold rolled sheet
Volume size880*860*1900mm
