Outdoor Energy Storage Power Aging Test Equipment with 2.0mm Thick Cold Rolled Sheet and RS485 Communication

Categories Energy Storage Power Aging Test Equipment
Brand Name: CPET
Model Number: CP-CN01
Place of Origin: China
MOQ: 2sets
Price: 8000dollars/set
Payment Terms: L/C
Supply Ability: 30sets/month
Delivery Time: 45 work days
Packaging Details: Wooden case packing
Trolley height: 350mm
Trolley structure material: m thick cold rolled sheet
Install energy consumption module model: CP8118
Energy recovery module control method: RS485 communication mode, upper computer RS232 communication mode
Layer insulation and anti-static method: Epoxy insulation board with heat dissipation holes on the surface
External dimension (L*W*H): L2050*W880*H2050mm (size of a single Burn-in cabinet)
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

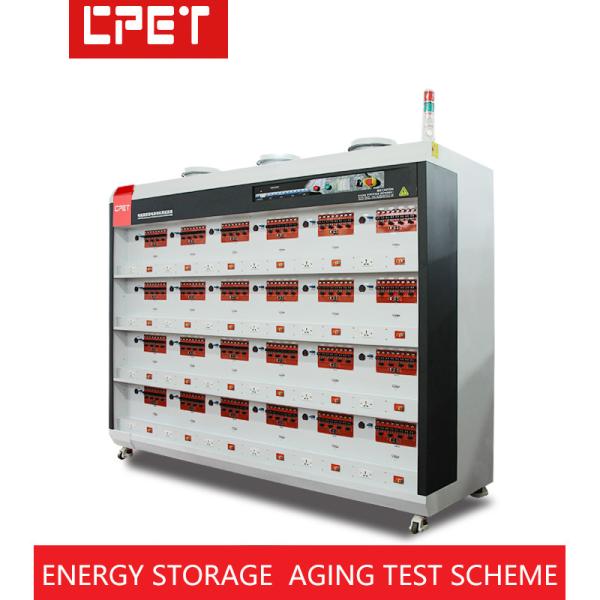

Outdoor Energy Storage Power Aging Test Equipment with 2.0mm Thick Cold Rolled Sheet and RS485 Communication

Outdoor Energy Storage Power Supply Charge And Discharge Aging Test Equipment



excellent function


1. Charge Control System Software control program-controlled power supply, freely set voltage to charge energy storage power supply.
2. Charge monitoring system The software can monitor the voltage and current in the process of charging the energy storage power supply by the program-controlled power supply and calculate the charging power.
3. AC discharge monitoring system Monitor the voltage and current parameter specifications when the AC output of the energy storage power supply is discharged.
4. AC to DC system By monitoring the AC output parameters, the load value of the back-end DC load is automatically calculated and set.
5. Fast charge deception function Support QC/PD fast charge function.
6. DC discharge monitoring system Monitor the voltage and current parameter specifications when the DC output of the energy storage power supply is discharged.
7. Calculation of charge and discharge capacity The capacity range can be judged, for example, when the cut-off discharge capacity reaches the set value, the burn-in can be stopped or the next project can be executed.
8. Multiple load combinations Support multiple load combinations to configure the burn-in cabinet.
Performance parameters
Burn-in cabinet structure
and Burn-in quantity
planning
Trolley size (mm)L2050*W880*H2050mm (size of a single Burn-in cabinet)
Number of trolley layers4 layers, product area depth 400mm, (12 Burn-in positions per layer)
Trolley height350mm
Trolley structure material/appearance color2.0mm thick cold rolled sheet, computer white
Load area cooling methodTop turbine exhaust fan top row type (easy to control the ambient temperature)
Layer insulation and anti-static methodEpoxy insulation board with heat dissipation holes on the surface
Overall burn-in room structureAdopt mobile Burn-in split cabinet; beautiful appearance and easy to move and combine
