LWT provides you with carton automatic packaging production line equipment, including carton steering mechanism, weighing and testing mechanism, labeling, palletizing machine, etc.) and provides you with a one-stop solution for reducing costs and increasing efficiency, which is suitable for food, daily chemicals, medicine and other industries.

Automatic packaging production line process:

Carton steering conveying-weighing and testing-printing and labeling-robot palletizing

Introduction to core equipment:

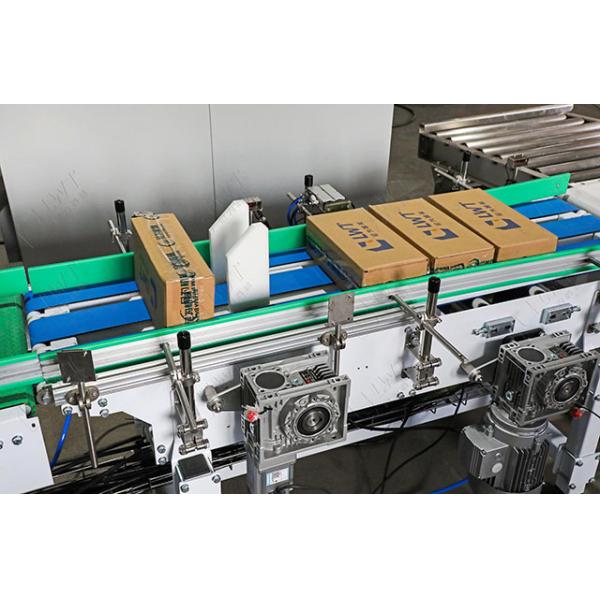

① Carton steering conveying system

Function: Roller conveyor belt carton flips 90°, automatically aligns, and automatically connects upstream and downstream equipment.

Technical highlights: infrared induction positioning, accuracy ±0.5mm; variable frequency speed regulation, suitable for 600-1200 boxes/hour production capacity.

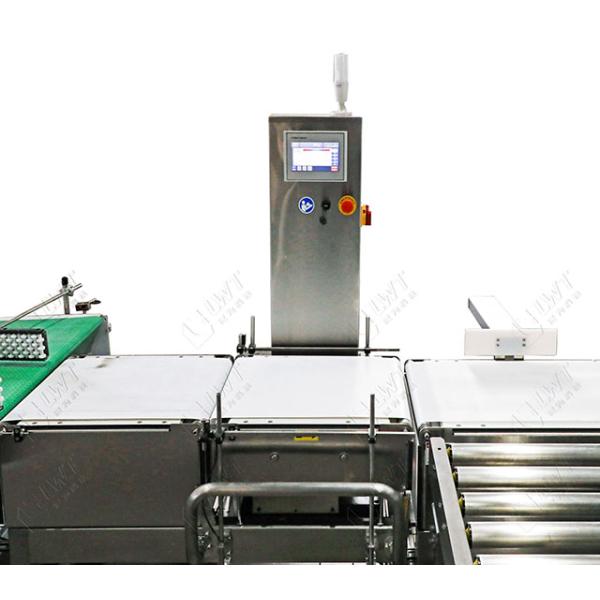

② Weighing and testing machine

Core parameters: weighing range 50g-25kg, accuracy ±0.1%.

Function: Automatically remove unqualified products and support overweight/underweight/empty box detection.

③ Printing and labeling machine

Application scenario: Support multi-specification label printing, including variable data (batch/expiration date/barcode).

Material compatibility: kraft paper, PP synthetic paper, waterproof labels, etc.

Differentiation function: visual verification system, automatic detection of label misalignment/blur; docking ERP system, real-time update of printing instructions.

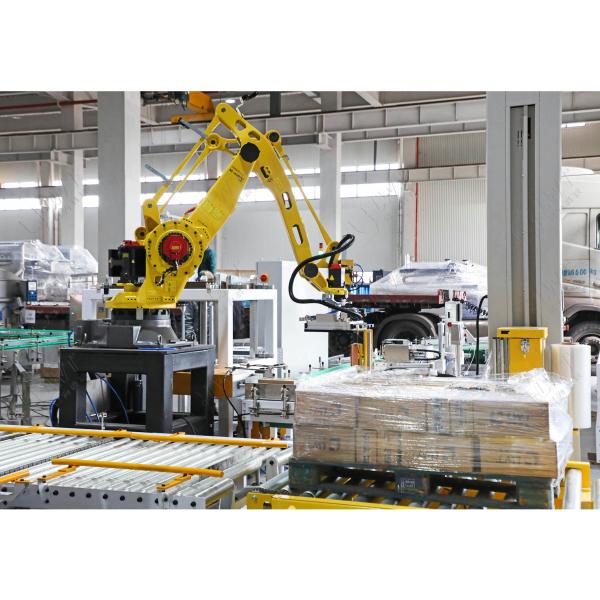

④ Robotic palletizing system

The robotic palletizer has an adaptive stacking mode and can easily cope with various material characteristics and palletizing requirements.

Technical parameters

Load capacity: 3kg-1300kg, widely applicable to a variety of materials, including boxed, bagged, barreled, etc.

Palletizing height: 2 meters (including pallet), which can be flexibly adjusted according to actual needs.

Fixture design: customized according to material characteristics, 2 or 4 boxes can be stacked on the pallet at a time to improve palletizing efficiency.

Cardboard function: The fixture has a built-in cardboard suction function to ensure that cardboard can be accurately stacked between every two layers of cartons and enhance stacking stability.

Control system: The whole line control system integrates intelligent management to achieve full automation of palletizing operations.
