| Brand Name: | JIA SHAN |
| Model Number: | DIN, ASEM, ISO |
| Certification: | ISO |
| Place of Origin: | China |
| MOQ: | 100 |
| Price: | USD0.2/pcs-USD1/pcs |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | Batch order abailable |
| Delivery Time: | 1-5 weekds |
| Usage: | Fastening |
| Style: | shoulder bolt |
| Size: | Various sizes available |
| Head Style: | cap head/shoulder bolt |
| Strength: | High |
| Finish: | Plain |
| Manufacturer: | JIA SHAN Hardware Company |
| Length: | As customisation |
| Package: | Small Packing+Carton Packing+Pallet |
| Standard: | DIN |
| Package Quantity: | 100 pieces |
| Shape: | Self Tapping Screws |
| Measurement System: | INCH, Metric |
| Port: | Shenzhen |
| Quality: | Inspection before shipment |
| Color: | As customisation |
| Material: | stainless steel |
| Company Info. |
| Hunan Jia Shan Hardware Tech Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

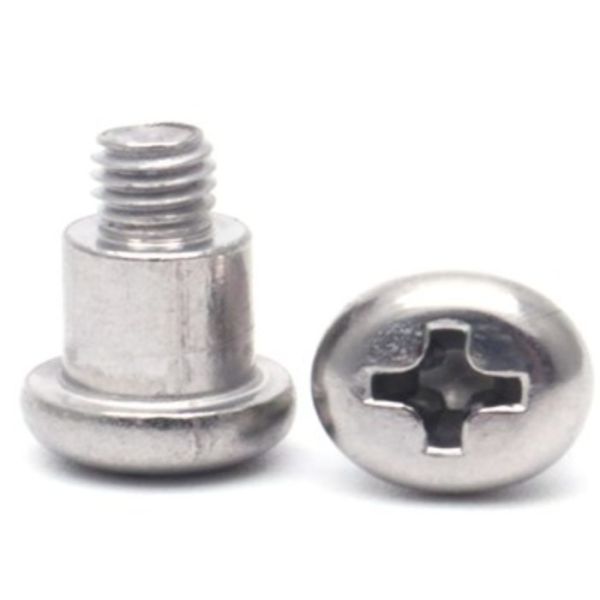

Custom Carbon Steel Shoulder Metal Bolts Phillips slotted furniture bolts in 1/6 8/12 1


Product Description:
A shoulder bolt, also referred to as a shoulder screw or stripper bolt, is a specialized fastener designed for applications requiring precision, alignment, and controlled movement. Its unique design distinguishes it from standard bolts, making it a critical component in machinery, automation, and mechanical systems. Below is an in-depth explanation of its purpose, features, and uses.
A shoulder bolt is characterized by its three-part structure:
Head: Typically designed for tool engagement, such as a hex head or socket head, to allow for easy installation and removal.
Shoulder (Unthreaded Section): A smooth, cylindrical shank with a precise diameter, larger than the threaded portion. This section acts as a bearing surface or spacer.
Threaded End: A smaller-diameter threaded section that secures the bolt into a tapped hole or nut.
The shoulder’s length and diameter can be customized to meet specific mechanical requirements, making it adaptable to a wide range of applications.
Some common uses include:
Automotive: Suspension pivots, throttle linkages.
Aerospace: Control surface hinges, actuator mounts.
Manufacturing: Jigs, fixtures, robotic joints.
Consumer Electronics: Hinges for laptops, rotating displays.
The shoulder must fit snugly into its bore to prevent misalignment.
Thread engagement length should match the tapped hole depth to avoid stripping.
Lubrication may be required for high-rotation applications.
Steel types:
| No. | C% | Cr% | Ni % | Mo % |
| 304 | 0.07 | 17.5-19.5 | 8.0-10.5 | / |
| 316 | 0.08 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 |
| 301 | 0.15 | 16.0-18.1 | 6-8 | / |
| 310 | 0.08 | 24-26 | 19-22 | / |
| 304L | 0.03 | 18-20 | 8-12 | / |
| 316L | 0.03 | 16-18 | 10-14 | 2-3 |
| 321 | 0.08 | 17-19 | 9-12 | / |
201, 304, 316 are austenitic stainless steel, according to the
performance of the non-magnetic, some of the performance of the
weak magnetic because of the smelting of the composition of the
segregation or improper heat treatment leads to the austenite in a
small amount of martensite or ferrite. Austenitic stainless steel
corrosion resistance comes from the formation of chromium oxide
protective layer on the metal surface. When the material
temperature is heated to 450 degrees -900 degrees, the structure
changes, will form chromium carbide along the edge of the crystal
and can not form a protective layer of chromium oxide, thus
reducing the corrosion resistance, this is also known as
‘intergranular corrosion’. As a result, there are 304L and 316L,
the two due to the low carbon content also reduces the
intergranular corrosion. In particular, the higher susceptibility
to intergranular corrosion does not mean that non-low carbon
content is more susceptible to corrosion, in a highly chlorinated
environment, this susceptibility is also higher.
304 stainless steel
304 is a general-purpose stainless steel that is widely used to
make equipment and machine parts that require good all-round
performance (corrosion resistance and formability). In order to
maintain the corrosion resistance inherent in stainless steel, the
steel must contain more than 18% chromium, more than 8% nickel content. 304 stainless steel is a grade of
stainless steel produced according to the American ASTM standard.
A2 stainless steel and A4 stainless steel, A2 is a class of 304
stainless steel, A4 is a class of 316 stainless steel, the main
difference between the two is here, some of the fastener industry
will be 302HQ and 304 referred to as: A2, 316 and 316L (C content
of carbon C is less than 03% of the stainless steel, you can
increase the ‘L’ logo) called A4.
What is the difference between a270 and a470 stainless steel bolts
Nuts are usually used in conjunction with bolts. Hexagonal nuts are
more widely used.C-grade hexagonal nuts are used in steel
structures, machinery and equipment with rough surfaces and low
requirements for precision.A-grade and B-grade hexagonal nuts are
mainly used in machinery and equipment with smooth surfaces and
high requirements for precision.
