Reduce Shock 1B14-371 Suspension Air Spring 3/4 NPTF Air Hole Bellows 578912371

Categories Suspension Air Spring
Brand Name: GUOMAT
Model Number: 1B14-371
Certification: ISO/TS16949, ISO9001
Place of Origin: Guangdong, China
MOQ: 5
Price: Negotiable
Payment Terms: L/C, D/A, D/P, Western Union
Supply Ability: 1000PCS/Week
Delivery Time: 5-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Item NO.: 1B14-371
Net Weight: 5.5 KG
Maximum Diameter: 406 MM
Transport Package: Cartons
Structure: Single Convoluted
Brand: GUOMAT
Cross Code: FS 530-14
Production Process: Burst Resistance
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Reduce Shock 1B14-371 Suspension Air Spring 3/4 NPTF Air Hole Bellows 578912371

Reduce Shock 1B14-371 Suspension Air Spring 3/4 NPTF Air Hole Bellows 578912371


Product Details


Upper cover screw (nut) teeth: 4 X M8
Top plate screw center distance: 158.8 mm
Screw (nut) teeth of the bottom cover plate: 4 x M8
The screw center distance of the bottom cover plate: 158.8 mm
The air hole distance between the nuts is 79.4 mm
Air hole/air inlet: 3/4 N P.T.F.
Top plate diameter (width): 289mm
Diameter (width) of the bottom cover plate: 289 mm
Rubber bellows natural diameter 380 mm
Maximum diameter of rubber bellows: 406 mm
Natural height of rubber bellows: 120 mm
Working stroke: maximum 160 mm to minimum 81 mm


Product Technical Data


Pneumatic Applications - Static Characteristics

Force F [lbf]

Pressure p [psi]406080100120Vol. V [in.3]
Height H [in.]6.5334050606840866010500740
6.0376056907650966011600690
5.54140625083801060012700650
5.04450668089601130013500610
4.54720707094601190014300560
4.04940738098701240014900510
3.551207610102001280015300450
3.052607810105001310015700380
2.553507970107001340016000300

OEM Part Number


Goodyear part number:1B14-371
Goodyear part number:1B14 371
Goodyear part number:1B14371

Goodyear Bellows 578 912 371
Goodyear Bellows 578912371
Goodyear Bellows 578-91-2-371

Cross Contitech NO.:FS 530-14
Cross Contitech NO.:FS53014
Cross Contitech NO.:FS530-14



Other Kinds of Goodyear Air Springs


578912350000195789123500001920094306YENIDINE YI-1B14-350ENIDINE YI-1B14-350
578912351000005789123510000020094308Y1B14-3511B14-351
578912351000041B14-35120094309N1B14-351 Bellows Air Spring1B14-351 Bellows Air Spring
578912351000195789123510001920094310YENIDINE YI-1B14-351ENIDINE YI-1B14-351
578912352000005789123520000020094312Y1B14-3521B14-352
578912352000041B14-35220116210N1B14-3521B14-352
578912352000195789123520001920094313YENIDINE YI-1B14-352ENIDINE YI-1B14-352
578912353000005789123530000020094314Y1B14-3531B14-353
578912353000041B14-35320116211N1B14-3531B14-353
578912353000195789123530001920094315YENIDINE YI-1B14-353ENIDINE YI-1B14-353
578912358000005789123580000020094316Y1B14-3581B14-358
578912358000041B14-35820035777N1B14-358 Bellows Air Spring1B14-358 Bellows Air Spring
578912362000005789123620000020094323Y1B14-3621B14-362
578912362000045789123620000420116212Y1B14-3621B14-362
578912362000195789123620001920094324YENIDINE YI-1B14-362ENIDINE YI-1B14-362
578912364000005789123640000020094325Y1B14-364 EXT1B14-364 EXT
578912364000041B14-36420094326N1B14-3641B14-364
578912364000195789123640001920094327YENIDINE YI-1B14-364ENIDINE YI-1B14-364
578912368000945789123680009420811431YC 1B14-352C 1B14-352
578912371000005789123710000020094334Y1B14-3711B14-371
578912371000195789123710001920094335YENIDINE YI-1B14-371ENIDINE YI-1B14-371
578912372000191B14-37220106777Y1B14-3721B14-372
578912373000005789123730000020140234Y1B14-3731B14-373
578912373000041B14-37320140235N1B14-373 Bellows Air Spring1B14-373 Bellows Air Spring

Related Images

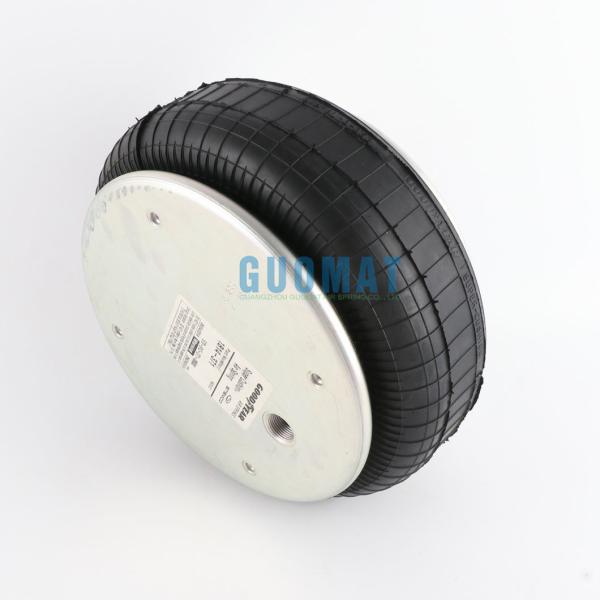

Goodyear Air Spring 1b14-371 with 3/4 NPT Air Inlet M8 Bolts Bellows 578912371 Cross to Contitech Fs530-14
