Goodyear Air Spring Flex No. 579913530 Contitech FS12010 CI G1/4 Single Bellows Cylinder

Categories Goodyear Air Spring
Brand Name: GUOMAT
Model Number: 1B8-850
Certification: ISO/TS16949, ISO9001
Place of Origin: Guangdong, China
MOQ: 5
Price: Negotiable
Payment Terms: L/C, D/A, D/P, Western Union
Supply Ability: 1000PCS/Week
Delivery Time: 5-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Product NO.: 1B8-850
Manufacturer: GUOAMT
Air Connection: G3/4
Bellows Type: Single Convoluted
Bellow Max. Diameter: 336MM
Cross Reference: WBE 300-E2
Key Word: Air Spring Suspension
Quality Assurance: 12 Months
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Goodyear Air Spring Flex No. 579913530 Contitech FS12010 CI G1/4 Single Bellows Cylinder

Goodyear Flex No. 579913530 Contitech FS12010 CI G1/4 Single Bellows Cylinder



Refer Number


Goodyear Part number: 1B8-850
Goodyear Part number: 1B8 850
Goodyear Part number: 1B8850
Goodyear Bellows number: 579-91-3-530
Goodyear Bellows number: 579 91 3 530
Goodyear Bellows number: 579913530

Firestone Part number: W01-M58-6166
Firestone Part number: W01M586166,
Firestone Part number: W01-M58-6166
Firestone Part number: WO1-M58-6166

Firestone Part number: WO1M586166

Firestone Part number:WO1 M58 6166

Contitech Part number: FS 120-10 CI G 1/4
Contitech Part number: FS 120 10 CI G 1/4
Contitech Part number: FS120 10 CI G 1/4

Details of Product


Rubber Bellow Maximum Diameter: 336mm

Structure: Single Convoluted Bellow

Diameter of top cover plate: 228.6mm

Diameter of bottom cover plate: 228.6mm

Center to Center Diameter: 157.5mm

Pneumatic Connection: G3/4

Distance Air Hole Between Screw: 72.9mm


Rubber Damage from Chemicals


Grease and oil are common examples that can cause this condition after prolonged contact with the rubber flexible member.


Possible causes:

  1. Excessive oil in the air supply.
  2. Excessive greasing of universal joints.
  3. Excessive greasing of the fifth wheel.
  4. Leaking seals in suspension components.
  5. Use of petroleum based cleaners on the air spring (use only soap and water for cleaning)


Other Types Of Convoluted Goodyear Air Spring we have:
Goodyear Air Spring OE NO.Goodyear Air Spring
OE Bellows NO.
Goodyear order NO.Bumper or notGoodyear Air Spring OE NO.
1B8-564 Bellows Air Spring1B8-56420449825N1B8-564 Bellows Air Spring
ENIDINE YI-1B8-5645799125640001920095534YENIDINE YI-1B8-564
1B8-564 INTERNATIONAL 3547005C15799125640004220141113Y1B8-564 INTERNATIONAL 3547005C1
1B8-5651B8-56520248442N1B8-565
C 1B8-5605799125670009020810735YC 1B8-560
P 1B8-5605799125680009120810607YP 1B8-560
P 1B8-5505799125690009120811403YP 1B8-550
C 1B8-5625799125700009020811604YC 1B8-562
C 1B8-5645799125710009020811605YC 1B8-564
C 1B8-8505799125720009020811606YC 1B8-850
C 1B8-5505799126270009020806174YC 1B8-550
1B5-8001B5-80020469101N1B5-800
ENIDINE YI-1B5-8005799128000001920095537YENIDINE YI-1B5-800
GOODYEAR 1B5-8015799128010000020607917YGOODYEAR 1B5-801
ENIDINE YI-1B5-8015799128010001920095538YENIDINE YI-1B5-801
1B5-8101B5-81020254245N1B5-810
ENIDINE YI-1B5-8105799128100001920095539YENIDINE YI-1B5-810
ENIDINE YI-1B5-8205799128200001920095540YENIDINE YI-1B5-820
ENIDINE YI-1B5-8215799128210001920224307YENIDINE YI-1B5-821
ENIDINE YI-1B6-8315799128310001920095541YENIDINE YI-1B6-831

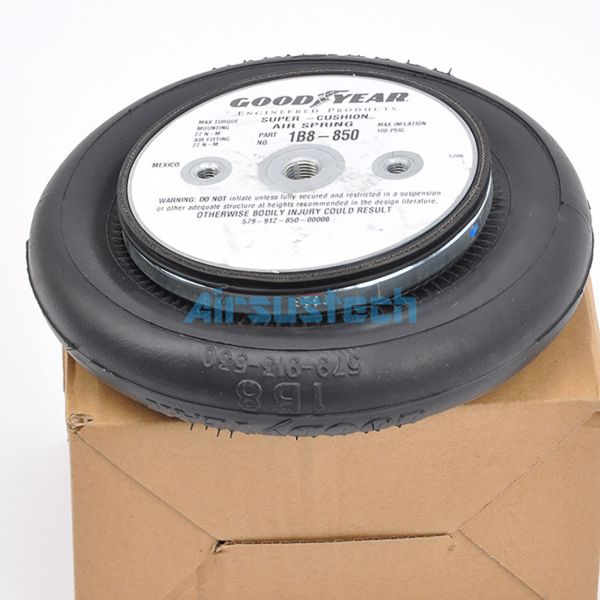

The Related Picture of 1B8-850

Goodyear 1b8-850/579913530 Convoluted Air Spring Cross Contitech Fs12010ci G1/4 BagsGoodyear 1b8-850/579913530 Convoluted Air Spring Cross Contitech Fs12010ci G1/4 Bags


Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.


Goodyear 1b8-850/579913530 Convoluted Air Spring Cross Contitech Fs12010ci G1/4 Bags

Factory Workshop


Goodyear 1b8-850/579913530 Convoluted Air Spring Cross Contitech Fs12010ci G1/4 BagsGoodyear 1b8-850/579913530 Convoluted Air Spring Cross Contitech Fs12010ci G1/4 Bags
