| Categories | One Way Clutch Bearings |
|---|---|
| Brand Name: | SFT |
| Model Number: | FWD331808 BRS |
| Place of Origin: | China |
| MOQ: | negotiable |
| Price: | negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS/MONTH |
| Delivery Time: | 30-45DAYS |
| Packaging Details: | carton,pallet |
| Product name: | FWD331808 BRS One Way Bearing |
| Application: | Reducers , Gearbox ,S-EW Gearbox |
| Height (mm): | 35 |
| Weight (g): | 87 |
| Race Material: | GCr15 |
C

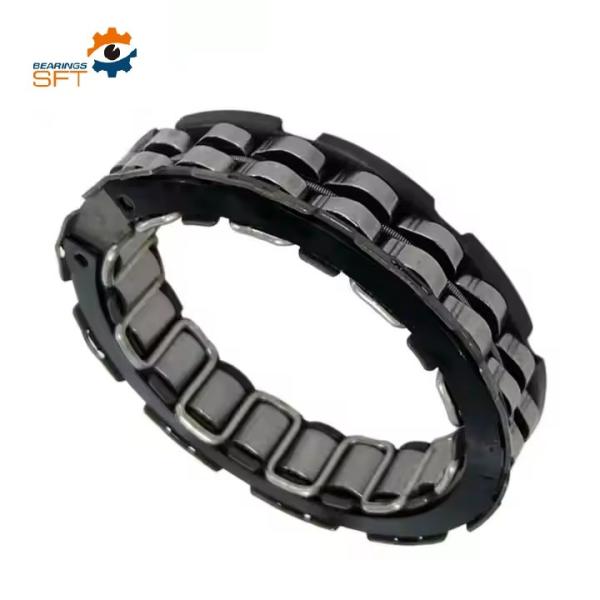

One Way Sprag Clutch FWD331808 BRS Motorcycle Clutch
Feature
1.Germany Technology Introduction
2.Core Technical Team
3.Professional Manufacture Factory
4.Superior Equipment Support
5.OEM / Customization Available

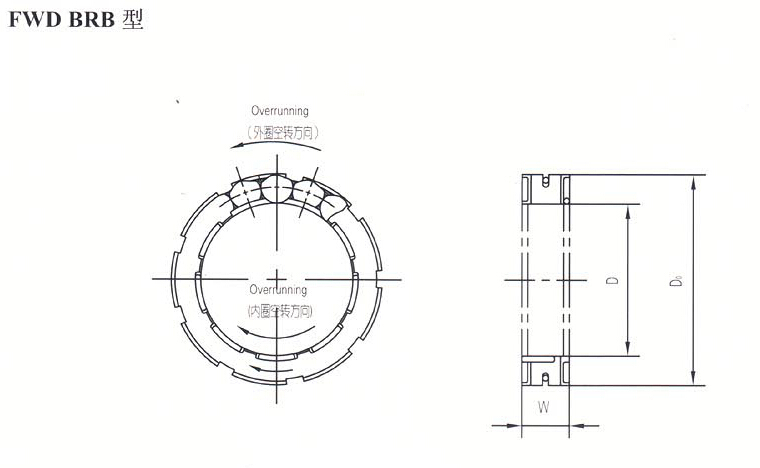

Products Parameters
| Type
| Inner race
| Outer race
| Wmin
| Tkn | Weight |
| D +0.008 -0.005 | DO ±0.013 (mm) | W | (Kgf-m) | (g) | |
| (mm) | |||||
| (mm) | |||||
| FWD331608BRB | 39.627 | 56.294 | 13 | 27 | 73 |
| FWD331808BRB | 45.665 | 62.332 | 13.3 | 35 | 82 |
| FWD332008BRB | 51.71 | 68.377 | 13.3 | 45 | 91 |
| FWD332211BRB | 57.76 | 74.427 | 16.3 | 78 | 134 |
| Type
| Inner race
| Outer race
| Wmin
| Tkn
| Weight |
| D +0.008 -0.005 | DO ±0.013 (mm) | W | (Kgf-m) | (g) | |
| (mm) | |||||
| (mm) | |||||
| FWD331608BRS | 39.627 | 56.294 | 13 | 27 | 77 |
| FWD331808BRS | 45.665 | 62.332 | 13.3 | 35 | 87 |
| FWD332008BRS | 51.71 | 68.377 | 13.3 | 45 | 97 |
| FWD332211BRS | 57.76 | 74.427 | 16.3 | 78 | 134 |
| Type
| Inner race
| Outer race
| Wmin
|
Wmin
| DC | Tkn
| Weight |
| D +0.008 -0.005 | DO ±0.013 (mm) | W | W1 | (Kgf-m) | (g) | ||
| (mm) | (mm) | (mm) | (mm) | ||||
| FWD331608PRB | 39.627 | 56.294 | 13 | 11.4 | 45 | 27 | 70 |
| FWD331808PRB | 45.665 | 62.332 | 13.3 | 11.7 | 51 | 35 | 80 |
| FWD332008PRB | 51.71 | 68.377 | 13.3 | 11.7 | 57 | 45 | 89 |
| FWD332211PRB | 57.76 | 74.427 | 16.3 | 14.7 | 63 | 78 | 130 |
|
