Triple Convoluted Type Bellows W01-358-8006 by Firestone Industrial Air Spring

Categories Firestone Air Bags
Brand Name: AIRSUSTECH
Model Number: 3B12-304
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou,China
MOQ: 1
Price: Negotiable
Payment Terms: T/T,Western Union,Paypal or Others
Supply Ability: 1000PCS/Week
Delivery Time: 5-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Manufacturer: AIRSUSTECH
Quality Assurance: 12 Months
Compressed Height: 4.8 Inches
Air Connection: 1/4 NPTF
Goodyear Bellows NO.: 578-93-3-100
Leland: SC2132
Sample: Available
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

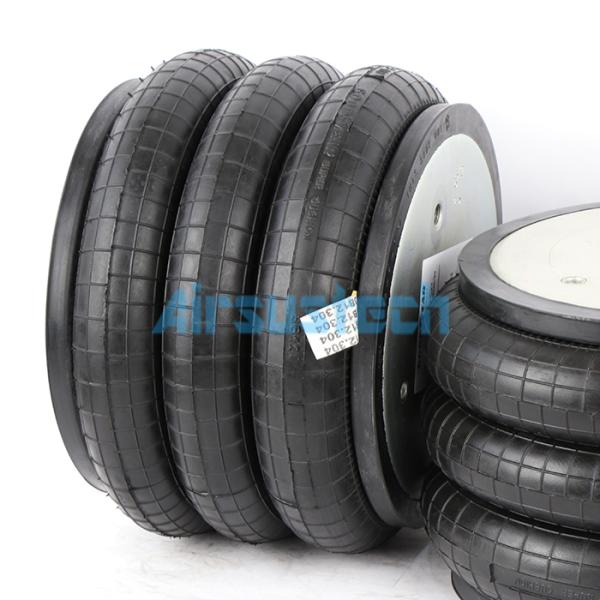

Triple Convoluted Type Bellows W01-358-8006 by Firestone Industrial Air Spring

Triple Convoluted Type Bellows W01-358-8006 by Firestone Industrial Air Spring


OEM Cross References


Firestone

W01-358-8006, W01 358 8006, W013588006

WO1-358-8006, WO1 358 8006, WO13588006

Contitech

FT 330-29 430, FT330-29 430, FT33029 430

Goodyear

3B12-304, 3B 12-304, 3B12304

Goodyear

578933100, 578 93 3 100, 578-93-3-100

Triangle

6334, 4430

Leland

Sc2132, Sc 2132

Arvin Meritor

200320


Product Detailed Datas


Diameter of the Top Cover Plate: 9.00 inches
Center-to-Center Distance of Screws on the Top Cover Plate: 6.20 inches
Diameter of the Bottom Cover Plate: 9.00 inches
Center-to-Center Distance of Screws on the Bottom Cover Plate: 6.20 inches
Screw (Nut) Thread Count for the Top Cover Plate: 3/8-16
Screw (Nut) Thread Count for the Bottom Cover Plate: 3/8-16
Air Inlet: 1/4 NPTF
Minimum Height: 4.8 inches
Product Applications
  • Large drying machines
  • Vibratory conveyors
  • Electronic equipment
  • Compressors
  • Conveyor loading points
  • Textile looms
  • Rotary shaft actuators
  • Conveyor or transfer systems
  • Vertical lift force for platforms and rotating tables
  • Injection or ejection of parts in manufacturing equipment
  • Scissor lifts
We also Provide Other Types Air Shock Suspensions
Single ConvolutedDouble ConvolutedTriple Convoluted
1B12-3052B6-5302B6-5313B12-304
1B14-3502B6-5322B6-5353B14-351
1B14-3522B6-5362B7-5403B14-354
1B14-3642B7-5412B7-5423B15-376
1B15-3762B7-5452B7-5463B15-378
1B15-3782B8-5502B8-5523B12-305
1B12-3132B8-5532B8-5543B14-353
1B14-3512B9-2002B9-2013B15-375
1B14-3622B9-2042B9-2053B15-377
1B15-3752B9-2162B9-250
1B15-3772B9-2512B9-253
2B12-3092B12-218
2B12-4252B12-429
2B12-4372B12-416
2B14-3522B14-353
2B14-3542B14-355
2B14-3622B14-363
2B14-4522B15-375
2B15-3762B15-377
2B15-3782B19-8433
2B22-8539

The Real Pictures



Company Profile


Guangzhou Guomate Air Spring Co., Ltd. is located in Guangzhou, China's first open port, just a fifteen-minute drive from Guangzhou Baiyun International Airport. The company boasts a modern building with an area of ​​approximately 20,000 square meters and state-of-the-art production facilities for rubber air springs. It is currently the largest air spring production base in China. The company's products are primarily used in commercial vehicles, rail vehicles, and industrial machinery and equipment. The main products are: rubber air springs, bus airbags, truck airbags, air springs for the paper machine industry, airbags for large washing machines, and rubber air springs for automobiles. We currently offer hundreds of models and designs and can also design and produce according to customer requirements or existing product specifications. New and existing customers are welcome to contact us for a consultation. Our company utilizes state-of-the-art domestic air spring processing facilities and integrates foreign air spring production technologies. Thanks to our unique production process, we produce according to international standards and thus create world-class products.
