Sinolift 2.5 Ton ~ 3.0 Ton Series Electric Pallet Truck CBD20M Used In The Warehouse Environment

Categories Mate series lifter truck
Brand Name: Sinolift
Model Number: CBD20M
Certification: CE
Place of Origin: China
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 1000 sets/mouth
Delivery Time: 15 days
Packaging Details: Sandard Export Package
Product name: Sinolift 2.5 Ton ~ 3.0 Ton Series Electric Pallet Truck CBD20M Used In The Warehouse Environment
Driving style: Pedestrian
Load capacity Q: 2000kg
Load center C: 600mm
Overall length: 1780mm
Overall width: 690mm
Overall height: 1310mm
Power of driving motor: 1.5kw
Power of lift motor: 2.2kw
Net weight: 350kg
Warranty: 1 year
After service: on-line service,free spart parts
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Sinolift 2.5 Ton ~ 3.0 Ton Series Electric Pallet Truck CBD20M Used In The Warehouse Environment

Sinolift 2.5 ton ~ 3.0 ton series electric pallet truck CBD20M used in the warehouse environment

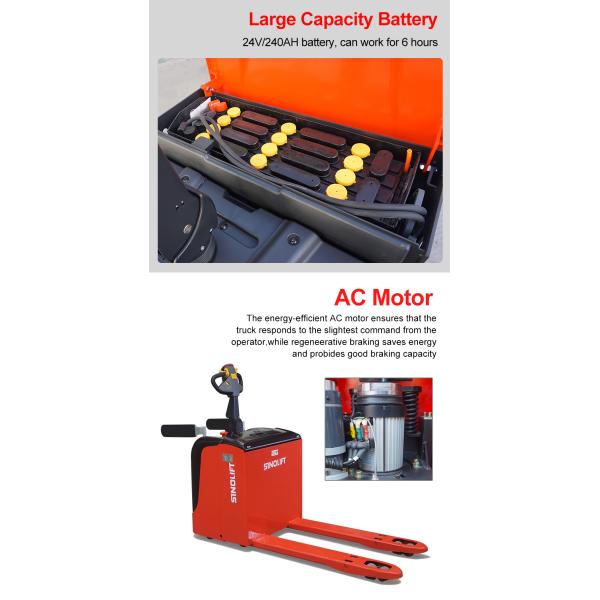

l Maintenance-free AC drive system for optimal performance.

l Premium quality controller ensuring reliable operation.

l Electromagnetic braking system for enhanced safety.

l Concealed shock-absorbing pedal design, offering high comfort during driving.

l High-performance hydraulic station with low noise, minimal vibration, and high efficiency.

l Electronic steering system, offering lightweight control, reduced noise, and effortless maneuvering.

l Emergency reverse device for enhanced safety.

ModelCBD20MCBD25MCBD30M
Power TypeElectricElectricElectric
Operation TypeStand-onStand-onStand-on
Steering ModeElectric Power Steering
Load CapacityQkg200025003000
Load CenterCmm600600600
Wheelbaseymm141014101410
Total Weight(With Battery)kg650650650
Axle Load( Loaded):rear/frontkg900/17501070/20801245/2425
Axle Load( Unloaded):rear/frontkg545/105545/105545/105
Overall LengthL1/L2mm1800/22651800/22651800/2265
Overall WidthW1mm810810810
Fork Sizel/e/smm1150×170×551150×170×551150×170×55
Width of Forkb2mm540/685540/685540/685
Ground Clearance at Forkh3mm858585
Lifting Heighth2mm205205205
Ground Clearance at center of wheelbasem1mm555555
Height of Operating Handlebar(Min./Max.)h14mm1000/13801000/13801000/1380
Turning Radius(Footboard Fold/Unfold)Wamm1660/21001660/21001660/2100
Right Stack Aisle WidthAstmm2400/28402400/28402400/2840
(Pallet size 1000*1200,Footboard Fold/Unfold)
Right Stack Aisle WidthAstmm2315/27552315/27552315/2755
(Pallet size 800*1200,Footboard Fold/Unfold)
Tyre TypePolyurethanePolyurethanePolyurethane
Tyre Size(Front)mm85*7085*7085*70
Tyre Size(Balance Wheel)mm115*55115*55115*55
Tyre Size(Driving Wheel)mm230*75230*75230*75
Tyres Number front/rear(x=drive wheel)4/1x+24/1x+24/1x+2
Drive Damping MethodDrive frame integral rail type spring shock absorption
Traveling Speed(Loaded/Unloaded)Km/h7.5/86.0/75.0/7
Lifting Speed(Loaded/Unloaded)mm/s22/3522/3022/30
Lowering Speed(Loaded/Unloaded)mm/s30/2630/2630/26
Max. Gradeability(Loaded/Unloaded)%858565
Service Brake TypeElectromagnetic/Regeneration
Parking Brake TypeElectromagnetic
Drive Motor Power(AC)KW1.51.51.5
Pump Motor Power(DC)KW0.80.82.2
Battery Voltage/Capacity K5V/Ah24V/21024V/21024V/240
Battery Weightkg188188210
Controller BrandCURTISCURTISCURTIS
Controller Model1232E1232E1232E
Noise LeveldB707070

CBD20M_01.jpgCBD20M_02.jpgCBD20M_03.jpgCBD20M_04.jpgCBD20M_05.jpgCBD20M_06.jpgCBD20M_07.jpgCBD20M_08.jpgCBD20M_09.jpgCBD20M_10.jpgCBD20M_11.jpg
