| Categories | Shipbuilding Steel Plate |
|---|---|
| Brand Name: | GNEE |
| Model Number: | A, B, D, E, AH32/36/40, EH32/36/40 |
| Place of Origin: | China |
| MOQ: | 5T |
| Package: | Steel Strip Packing Or Customize Size |
| Length Range: | 6 M, 12 M, Coils |
| Grade: | A, B, D, E, AH32, AH36, DH32, DH36, EH32, EH36 |
| Standard: | ASTM, AISI, DIN, GB |
| Color: | RAL Color,as Customers' Requirement |
| Width Range: | 1000 Mm - 3900 Mm |
| Type: | Steel Plate,Steel Coil |
| Thickness Range: | 5 Mm -150 Mm |
| Company Info. |
| Gnee Steel (tianjin) Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Gnee Steel specializes in providing ABS high-strength steel plates in ABS Grade AH32. ABS Grades AH32, DH32, and EH32 are structural steels with higher strength, each having a minimum specified yield strength of 46 ksi.

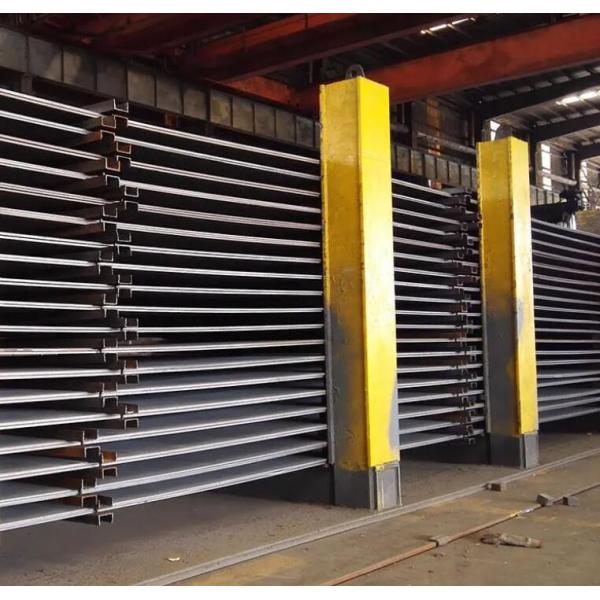

The AH32 shipbuilding steel plates are appropriate for use in container and bulk cargo vessels, as well as in cruise ships, ferries, and yachts.
Product Name | Marine steel plate |
Standard | AISI,ASTM,DIN,JIS,GB |
Length | Can be customized |
Width | Can be customized |
Thickness | Can be customized |
Material | A,B,E,AH32,AH36,DH32,DH36,EH32,EH36 etc CCS,ABS,GL,LR,DNV,BV,RINA,NK,KR |
Payment | T/T |
Application | Marine steel plate has a wide range of applications in
shipbuilding. First, Marine steel plates can be used to manufacture
the shell and internal structure of ships. Secondly, Marine steel
plates can also be used to manufacture mechanical equipment and
parts of ships |
| C | Si | Mn | P | S | Al (acid) min. | Nb |
|---|---|---|---|---|---|---|
| 0.18 | 0.10-0.50 | 0.90-1.60 | 0.035 | 0.035 | 0.015 | 0.02-0.05 |
| V | Ti | Cu | Cr | Ni | Mo | |
| 0.05-0.10 | 0.02 | 0.35 | 0.20 | 0.40 | 0.08 |
Mechnical property for ABS Grade AH32 shipbuilding plate:
| Yield strength (≥Mpa) | Tensile strength (Mpa) | Elongation in ≥, % | |
|---|---|---|---|
| 315 | 440-590 | 200mm | 50mm |
| 19 | 22 |
Gnee Steel: A reputable steel plate manufacturer in China with over 18 years of export experience, Gnee Steel stands out as one of the premier shipbuilding steel plate manufacturers in the country.
Shipbuilding Steel Plate: Shipbuilding steel plate is hot-rolled steel specifically designed for constructing ship structures in compliance with construction society standards. It is commonly utilized for specialized steel orders, scheduling, sales, and various components of a ship, including ship plates and steel.
Q: What is the brand name of the Shipbuilding Steel Plate?
A: The brand name is GNEE.
Q: What are the available model numbers for the Shipbuilding Steel Plate?
A: The available model numbers are A, B, D, E, AH32/36/40, EH32/36/40.
Q: Where is the Shipbuilding Steel Plate manufactured?
A: The Shipbuilding Steel Plate is manufactured in China.
Q: Does the Shipbuilding Steel Plate come with various thickness options?
A: Yes, the Shipbuilding Steel Plate is available in various thickness options.
Q: Are custom orders for the Shipbuilding Steel Plate accepted?
A: Yes, custom orders for the Shipbuilding Steel Plate are accepted to meet specific requirements.
|
