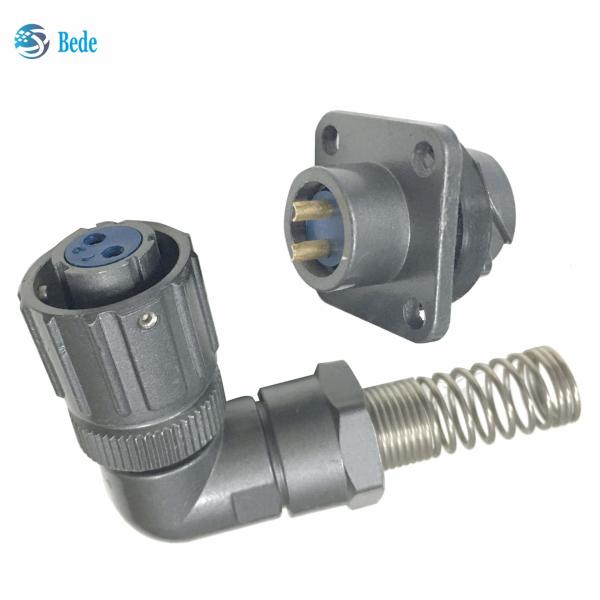

Brief introduction of the FQ connectors
FQ series waterproof circular electrical connectors comply with DZ4Q/RE008-84 standard, adopting high reliability squirrel cage type, advanced structure and high reliability.
Products with low contact resistance, anti-vibration, anti-shock, strong sealing, plug seat connection fast, etc., simple to use, easy to operate, widely used in a variety of electronic equipment between the electrical connection.

Materials of FQ 18 Cricular Connetors

1. Contact pins : Gold plated brass 2. Shell: Zinc Alloy with color painting

3. Wire Cage: Stainless Steel Spring 4. Sealing Rings: Silicone Rubber

Pins Distribution and Rating Current

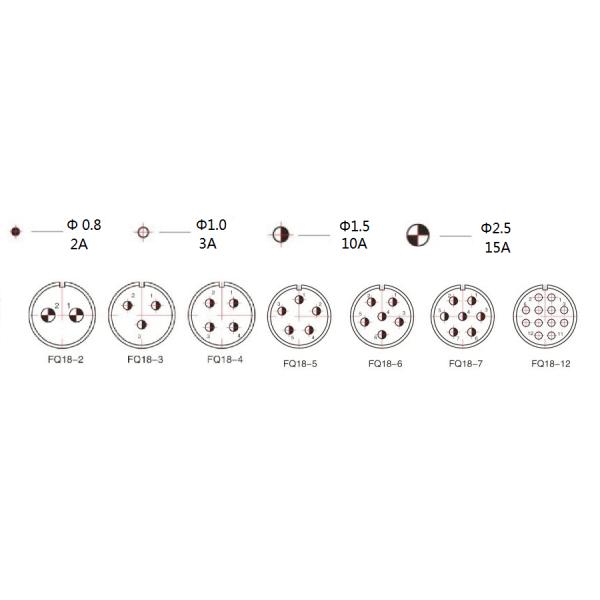

FQ 18 series connectors are available in 2~7pin and 12pins, you can check their current ratings according to the following figure

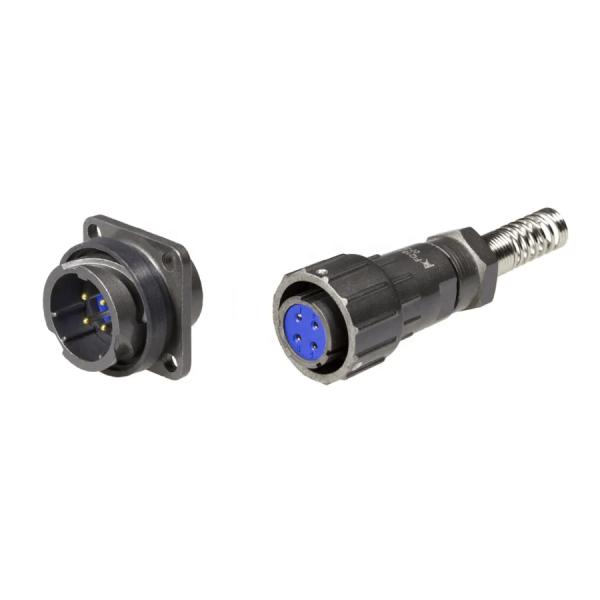

Plugs and sockets used in conjunction

1. FQ18 Straight wire spring plug

2. FQ18 Right Angle wire spring plug

3. Circular Receptacle With Circular

4.Cable Receptacle With Square Flange

5. Square Flange Receptacle

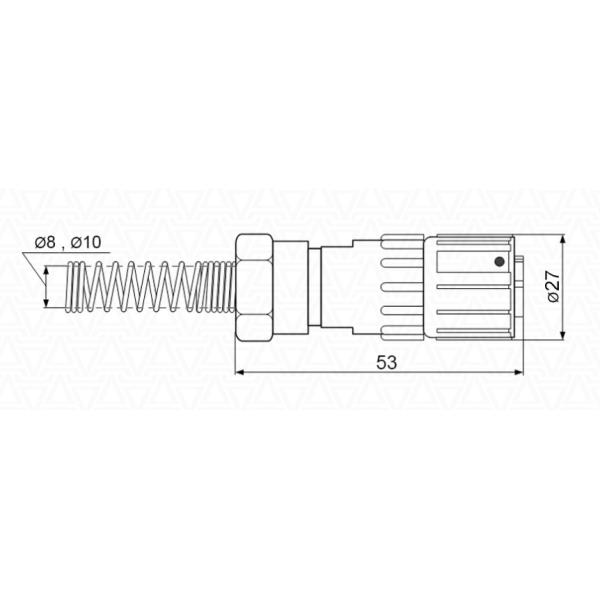

Size of FQ18 Straight wire spring plug

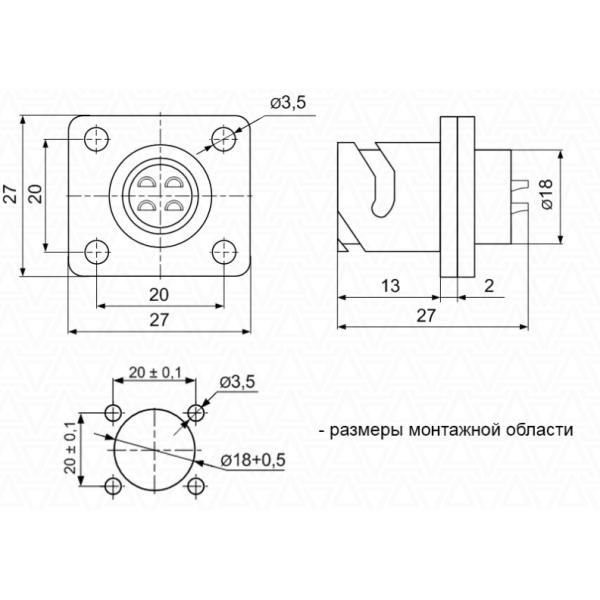

Size and amounting diameter of Cable Receptacle With Square Flange

TECHNICAI CHARACTERISTICS
Temperature: -55°C ~ +105°C
Relative humidity: 98± 3% at 40°C
Vibration: 10-2000HZ, 150m/s²
Shock : 500m/s²
Atmospheric : 1 KPa
Resistance: 0.1MΩ Min.
Endurance: 500 cycles

How to inquiry and buy

Please tell us the code and quantity as shown in the picture below and we will offer you the best price and services.
