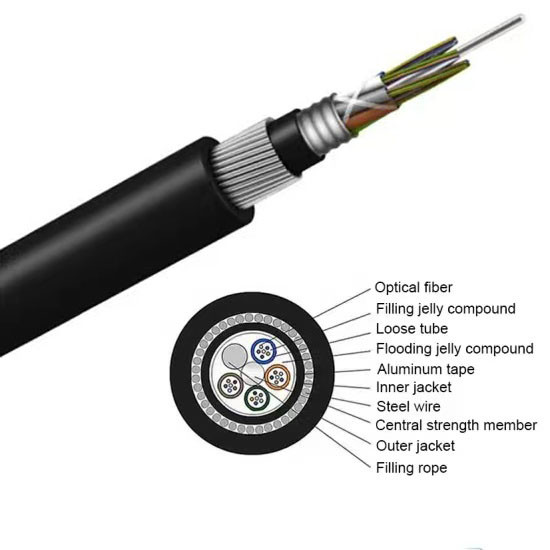

Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying

Submersible Cable 24 32 36 48 72 96 144 Cores G652D SM Underwater Submarine Optical Cable GYTA33

Application

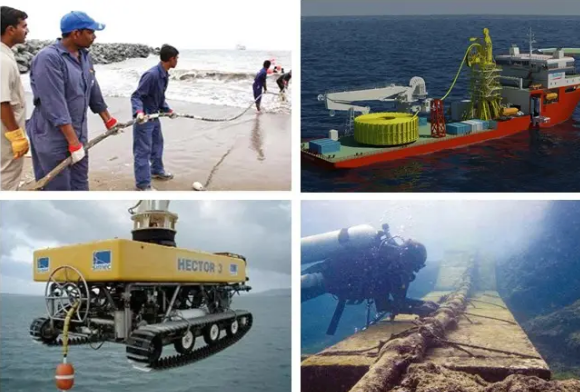

Suitable for directly buired laying or Underwater method

Optical Characteristics

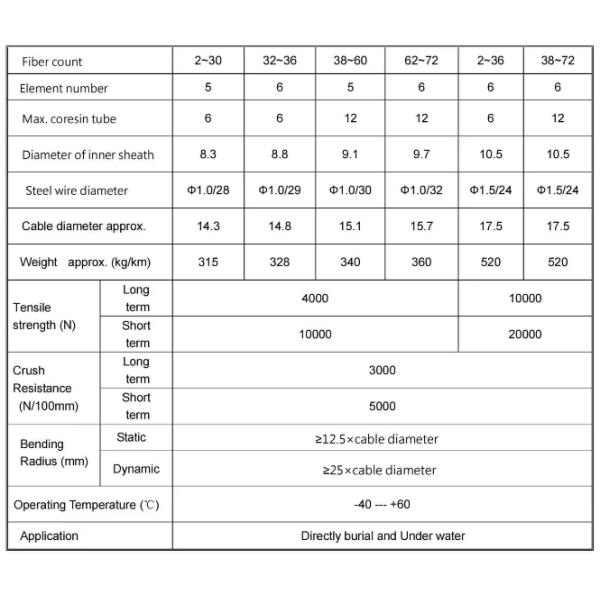

Technical Parameters

Fiber Count	Diameter (MI)	Weight (KG/KMI)	Min.Bend Radius		Mlin.Tension (N)		Crush (N/100MMl)
			Static	Dynamic	Long Term	Short Term	Long Term	Short Term
2-30	13.5	245	10 Times Diameter	20 Times Diameter	4000	10000	3000	5000
32-36	13.8	252			4000	10000	3000	5000
38-60	14.5	275			4000	10000	3000	5000
62-72	15.0	285			4000	10000	3000	5000
74-96	15.5	295			4000	10000	3000	5000
98-120	16.0	305			4000	10000	3000	5000
122-144	17.0	315			4000	10000	3000	5000
146-216	19.0	345			4000	10000	3000	5000
218-240	20.5	365			4000	10000	3000	5000
242-288	21.5	395			4000	10000	3000	5000

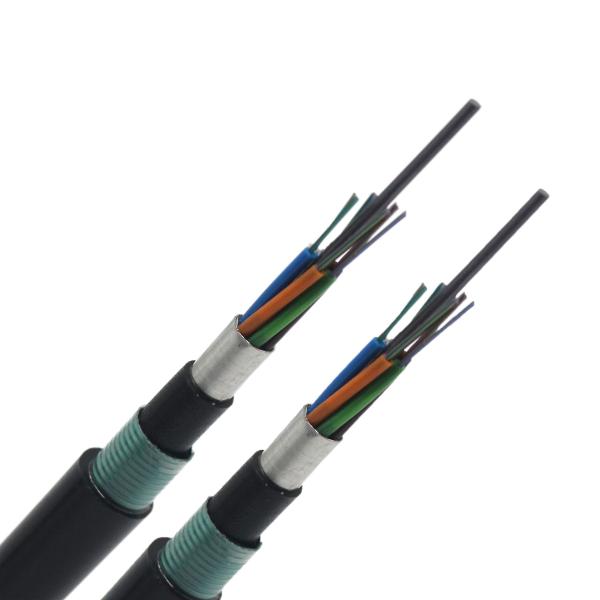

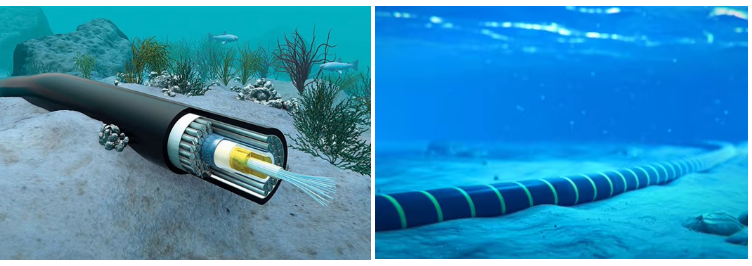

Product show

Related-products: GYTA53

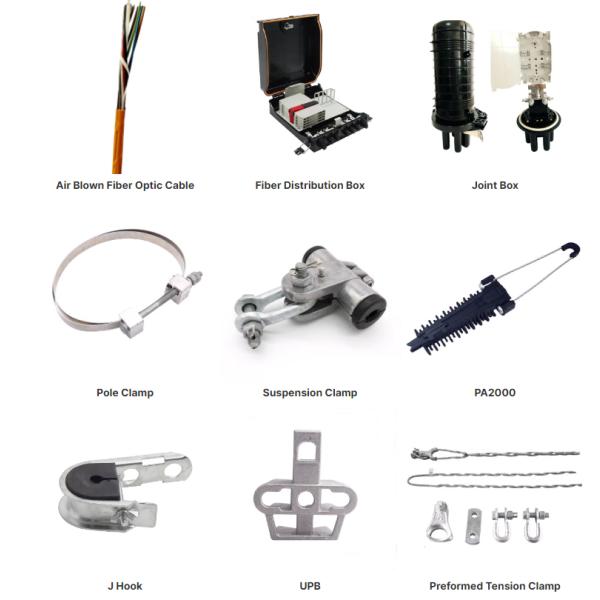

Fiber Cable & Fiber Accessories

Packing

1/2/3/4km or customized length export wooden drum

1. Factory Directly Supply Price.

2. Life Time Warranty:More 25years

3. Fastest Delivery Time: 1 days for Samples, 3-15 days for bulk production.

4. 100% test before shipping.

5.OEM/ODM is available.

6. Professional manufacturer.
