Single Natural Rubber Bellow W01R584050 Firestone Air Spring with Flange Ring

Categories Industrial Air Spring
Brand Name: GUOMAT
Model Number: 1B4.5×1P
Certification: ISO/TS16949, ISO9001
Place of Origin: Guangdong, China
MOQ: 1
Price: Negotiable
Payment Terms: L/C, D/A, D/P, Western Union
Supply Ability: 1000PCS/Week
Delivery Time: 5-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Model NO.: 1B4.5×1P
Type: Single Convoluted
Dunlop: SP2906
Contitech: FS 22-3 DI
Pneumatic Connection: G3/8
Design Height: 78 MM
Compatibility: Universal
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Single Natural Rubber Bellow W01R584050 Firestone Air Spring with Flange Ring

Single Natural Rubber Bellow W01R584050 Firestone Air Spring with Flange Ring


The Introduction of GUOMAT Air Springs


Air springs are extremely durable, precisely engineered, and cost-effective for a variety of actuation and vibration isolation applications. AIRSUSTECH air springs feature a proven design, natural rubber flex member construction, and corrosion-resistant end retainers to deliver superior quality and performance.


1B4.5×1P Air Bag Detailed Datas


Cover Plate Diameter: 110 mm

Center to Center Distance: 93 mm

Air Hole: G3/8

Natural Height: 78 mm

Max Rubber Bellows Width: 120 mm

Bellows Type: Single Convoluted


OEM Cross References


Firestone Part Number

W01-R58-4050, W01 R58 4050, W01R584050

WO1-R58-4050, WO1 R58 4050, WO1R584050

Dunlop Pneuride Part Number

4 1/2" x 1, 4 1/2' x 1, 4 1/2 x 1

Dunlop Springride Part Number

SP2334, SP 2334, SP 23 34

Contitech Part Number

FS 44-5 DI, FS44-5 DI, FS445 DI

Norgren Part Number

PM/31041, PM31041, PM 31041

Parker Part Number

9109400


Guide to Temperature Ranges for Air Spring Applications


1. Continuous service
The maximum operating temperature for all GUOAMT air springs must not exceed +70ºC. Continuous service is defined as 40 hours or more per week of operation at this temperature.


2. Intermittent service
The maximum permissible temperature should not exceed 70°C. Intermittent service is defined as less than 40 hours per week of operation at this temperature. For products made with natural rubber, the minimum permissible operating temperature is +70ºC. Please note that minor cracking may occur during prolonged operation at these minimum temperatures.


We Have Other Single Convoluted Air Suspensions


GUOMAT NO.FirestoneDunlop PneurideDunlop SpringrideContitechNorgrenParker
2 3/4''×12 3/4''×1SP2906FS 22-3 DI9109025
4 1/2''×1W01R5840504 1/2''×1SP2334FS 44-5 DIPM/310419109400
1B6×1T(AI)W01R5840786''×1(Al)SP2913FS 76-7 DIPM/310619109004A
1B6×1T(Steel)W01R5840526''×1(Steel)SP1536FS 76-7 DSM/310619109004
1B8×1TW01R5840548''×1SP1537FS 138-8 DSM/310819109014
1B10×1TW01R58405710''×1SP2523FS 210-10 DSM/311019109024
1B12×1TW01R58406012''×1SP1540FS 412-10 DSM/311219109044
1B14 1/2''×1TW01R58406314 1/2''×1SP1543FS 614-13 DSM/311419109064
1B16×1TW01R58406616''×1FS 816-15 DSM/311619109126

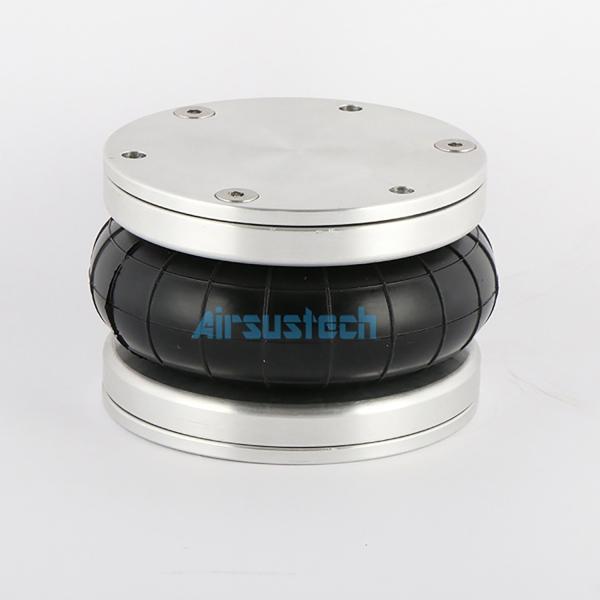

The Detailed Pictures of 1B4.5×1P


Convoluted Dunlop Sp2008 Air Spring Assembly Fire-Stone W01-R58-4043 Pneumatic Cylinder

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
Convoluted Dunlop Sp2008 Air Spring Assembly Fire-Stone W01-R58-4043 Pneumatic Cylinder


Factory Workshop
Convoluted Dunlop Sp2008 Air Spring Assembly Fire-Stone W01-R58-4043 Pneumatic CylinderConvoluted Dunlop Sp2008 Air Spring Assembly Fire-Stone W01-R58-4043 Pneumatic Cylinder
