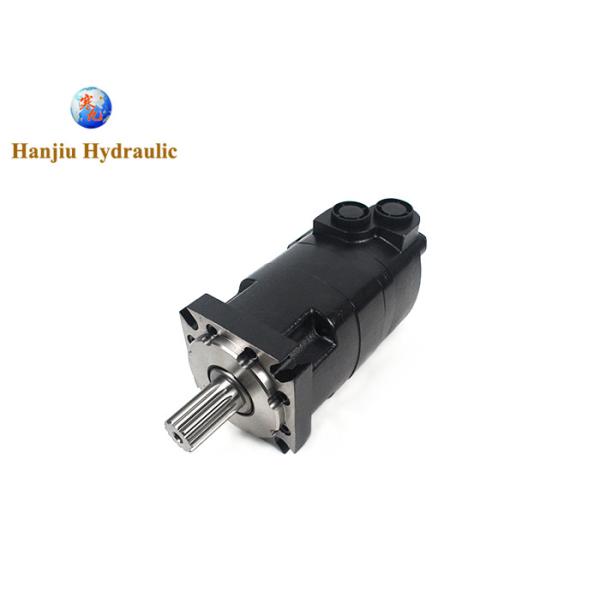

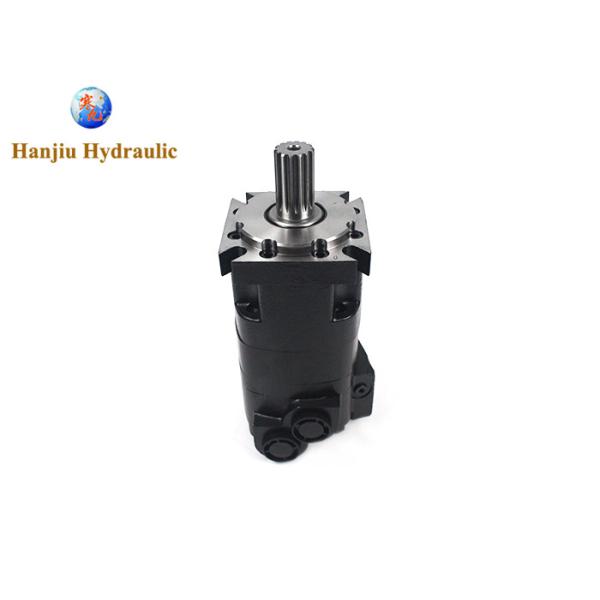

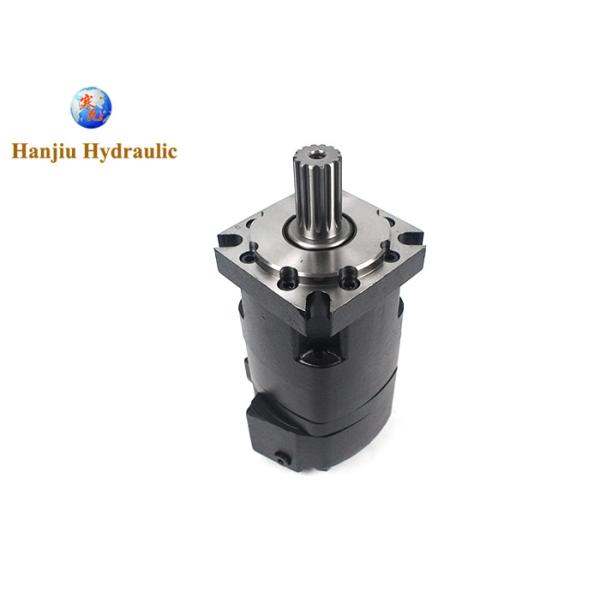

EATON / CHAR-LYNN 109-1119-006 Hydraulic Geroler Disc Valve Motor 850 Nm 303 Rpm

EATON / CHAR-LYNN 109-1119-006 Hydraulic Geroler Disc Valve Motor, 850 Nm, 303 Rpm

Product details:

DISPLACEMENT:311.8 CM3/R [19.03 IN3/R]

MOUNTING TYPE:STANDARD, 4 BOLT; 101.60 [4.000] PILOT DIA 14.7 [.58] SLOTS ON 127.00 [5.000] DIA.BOLT CIRCLE. (SAE B)

OUTPUT SHAFT;31.75 [1.250] DIA. FLAT ROOT SIDE FIT, 14 TOOTH, 12/24 DP 30 DEG. INVOLUTE SPLINE, 38.1 [1.50] MINIMUM FULL SPLINE LENGTH WITH .375-16UNC-2B THREAD

PORTS:1.0625-12 UN-2B SAE O-RING PORTS - STAGGERED PORTS

CASE FLOW OPTIONS:.4375-20 UNF-2B SAE O-RING PORT WITH CHECK VALVE

Main Specifications:

Geroler motor working principle

Advantages of Geroler Motors

High torque output Ideal for heavy loads.

Smooth operation Consistent output without pulsations.

Compact design Efficient use of space.

Reversible Can operate in both clockwise and counterclockwise directions.

Wide speed range Versatile for various applications.

Applications of Geroler Motors

Construction equipment Excavators, cranes, drilling rigs

Agricultural machinery Tractors, harvesters

Industrial machinery Presses, conveyors, mixers

Marine applications Winches, steering systems

Mobile equipment Forklifts, aerial work platforms

Would you like to know more about specific applications or how to select the right Geroler motor for your project

Shijiazhuang Hanjiu Technology Co.,ltd. is a professional manufacturer of industrial hydraulic components, located in China - Hebei City. Since 1995, Hanjiu focused on the development and production of full series of hydraulic components, orbit motors, steering orbitrols, directional control valves.

Our products include: GEROLER and GEROTOR motors, hydraulic steering units, directional control valves. More than 50 series, 2000 types. Personalized products and services to provide customers with a significant advantage. Due to the high quality of our products and reliable performance, they are widely used in mobile, industrial, fluid power, dynamic, agricultural, construction, marine, automation, transport, sanitary, etc.

Hanjiu Technology brings together the world's top professional talent and technology, has a highly qualified international personnel. Set from software development to hardware design, system testing, technical services are completed by professional and technical personnel. We have R & D base in Hebei, well-known institutions of higher learning and research institutions at home and abroad, work closely with national patent applications for 63, a number of the core technological achievements and technical indicators at the international advanced level.

To ensure the quality and stability of the machine, we use the most advanced production and testing equipment to check the quality and performance of our hydraulic motors and steering units and valves in each production step to ensure our hydraulic components perfect quality and stable performance.

We provide customers with affordable, high-quality hydraulic components. In order to achieve the advantages of Asia, the full benefit in terms of quality and cost, procurement of key machine from Germany, and the production and manufacturing in China. We have the best supply chain in China and parts manufacturers, and a solid record of quality and innovation, to prove that our 20+-year performance of the hydraulic components

Quality product performance and good reputation, our products are not only successful sales in China, and have been exported to more than 120 countries and regions in the world, including: Germany, Japan, Italy, Spain, Poland, Russia, Belarus, South Korea, Turkey, Egypt, Brazil, Argentina, Chile, India, Australia, the United Arab Emirates, Saudi Arabia, USA, Mexico and other countries, the products are subject to a great welcome and praise.

Our goal is simple: to sell the best hydraulic motors, steering units, valves, components at the best prices, and provides industry-leading customer service. We personally get to know each of our customers, and we know how to discover the most valuable part of our business is Perfect Hydraulics, to help others achieve their goals.

For more detailed information on our hydraulic components, please do not hesitate to contact us! We welcome your inquiries, and look forward to working with you.
