Firestone Pneumatic Air Spring W01-R58-4060 Convoluted Bellow G1/4 Air Connection

Categories Firestone Air Bags
Brand Name: AIRSUSTECH
Model Number: 1B12×1P
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou,China
MOQ: 1
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal or Others
Supply Ability: 1000PCS/Week
Delivery Time: 5-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Manufacturer: AIRSUSTECH
Product NO.: 1B12×1P
Dunlop: SP1540
Contitech: FS 412-10 DS
Port Size: G 1/4
Bellows Type: Single Convoluted
Working Stroke: 51 MM to 150 MM
Condition: Brand New
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Firestone Pneumatic Air Spring W01-R58-4060 Convoluted Bellow G1/4 Air Connection

Firestone Pneumatic Air Spring W01-R58-4060 Convoluted Bellow G1/4 Air Connection


1B12×1P Replaces These Air Spring Models


Norgren

PM31121, PM 31121, PM/31121

Firestone

W01-R58-4060, W01R584060, W01 R58 4060

WO1-R58-4060, WO1R584060, WO1 R58 4060

DUNLOP PNEURIDE

12''×1, 12'×1, 12×1

DUNLOP SPRINGRIDE

SP1540, SP 1540, SP 15 40

Contitech

FS 412-10 DS, FS412-10 DS, FS41210 DS

PARKER

9109044


1B12×1P Air Bellow Specifications


Maximum Rubber Bellow Diameter: 325 mm

Installation Spce: 340 mm

Cover Plate Diameter: 228 mm

Compressed Height: 51 mm

Max. Expanded Height: 150 mm

Full Stroke: 99 mm

Air Hole: G1/4

Center to Cenetr Distance: 157.5 mm

Distance Between Air Inlet and Screw: 73 mm

Screw Type: 2×M8×15mm


Product Applications


  • Papermaking equipment
  • Scissor lift
  • Mechanical Hopper vibration and damping handling stop
  • Direct force
  • Platform lift
  • Short stroke mechanical linkage
  • Hot foil stamping press
  • Impact absorbtion
  • Roller tensioning
  • Quick lock device
  • Reel tensioning
  • Machine isolation

Air Spring Introduction


Features: Integrated casting process, strong airtight, leakproof, high surface density, burst resistance
Installation: Dimensions are the same as the original model, direct replacement without modification, easy to install
Quality: Using advanced technology improves product destruction, acid resistance, corrosion resistance, long service life
Design: Designed for comfortable suspension with high compression strength and excellent sound isolation to ensure driving comfort and safety.

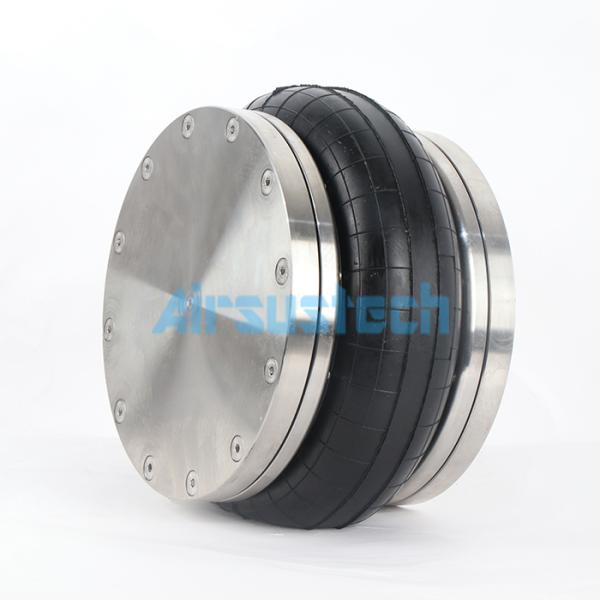

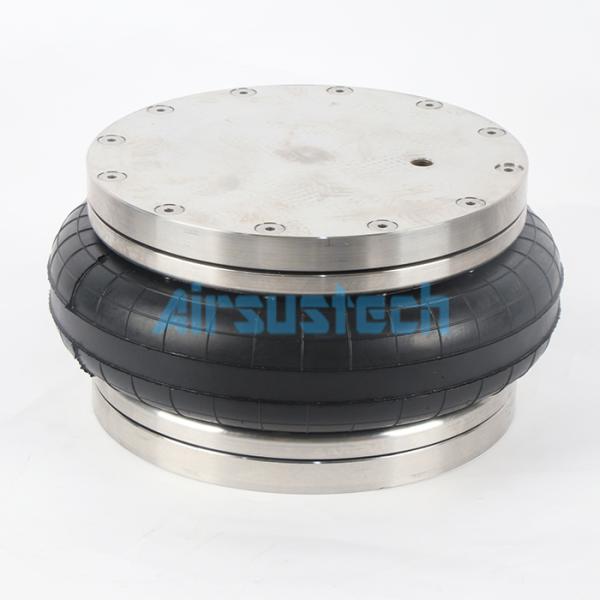

1B12×1P Real Pictures
