MV Underground Power Cables 3.6kV To 35KV Copper Or Aluminum Conductor Copper Wire Screen Standard AS/NZS 1429.1

MV Underground Power Cables 3.6kV To 35KV Copper Or Aluminum Conductor Copper Wire Screen Standard AS/NZS 1429.1

MV Underground Power Cables 3.6kV To 35KV Copper Or Aluminum Conductor Copper Wire Screen Standard AS/NZS 1429.1
MV Underground Power Cables 3.6kV To 35KV Copper Or Aluminum Conductor Copper Wire Screen Standard AS/NZS 1429.1
Categories Medium Voltage Power Cables
Brand Name: Zhenglan Cable
Model Number: Medium voltage tape armoured XLPE Insulation power cable
Certification: CE ISO CCC
Place of Origin: China
MOQ: 3000m
Payment Terms: T/T, Western Union, L/C
Supply Ability: 2500 Kilometers per month
Packaging Details: Wooden drum/Iron wooden drum

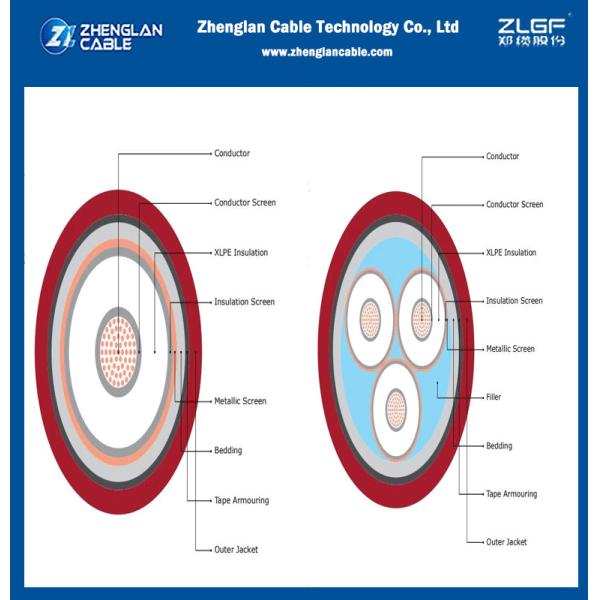

Structure: Cu(Al)/XLPE/CWS/PVC
Conductor: Copper/Aluminum
Screen: Copper wires
Installation Method: Direct Buried/Aerial/Underground
Insulation: XLPE
Core: Single or Three
Contact Now
Company Info.
Zhenglan Cable Technology Co., Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

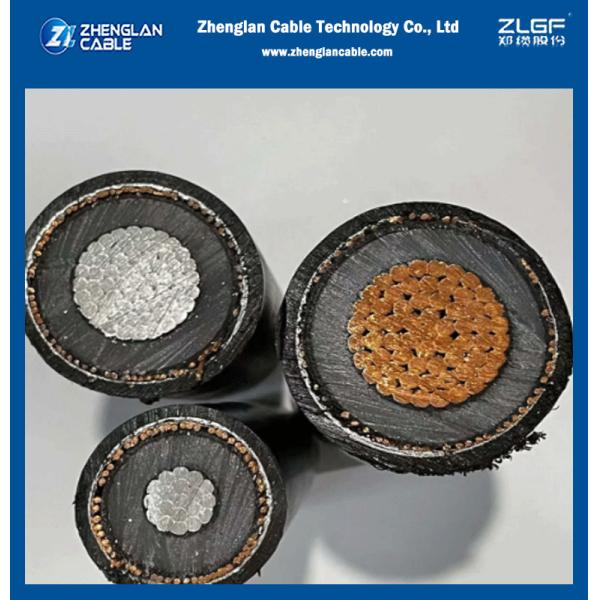

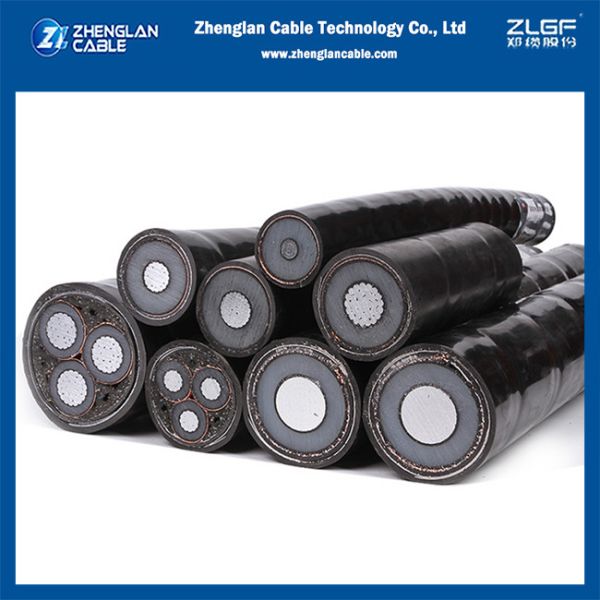

MV Underground Power Cables 3.6kV To 35KV Copper Or Aluminum Conductor Copper Wire Screen Standard AS/NZS 1429.1

Product Description:

Medium voltage power cable for static application in ground, within and outside facilities, outdoors, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.

Features:

  • Product Name: Medium Voltage Power Cables
  • Number Of Cores: 1-3
  • Size: 25~630mm2
  • Conductor: Copper/Aluminum
  • Insulation: XLPE
  • Armour:Three cores:Galvanized Steel Wire(SWVA)
  • Screen: Copper wires
  • Outer sheath: PVC (Polyvinyl chloride), PE( Polyethylene), LSZH(Low Smoke Zero Halogen)

Standard:

AS/NZS 1429.1

Technical Parameters:

Aluminum copper

mm2mmmmmmmm2no x mmmmmmmmmm
356.93.414.923.814x0.8518.242.62.547.6
508.13.416.032.319x0.8519.345.22.550.2
709.63.417.646.027x0.8520.948.92.553.9
9511.43.419.361.336x0.8522.652.82.557.8
12012.83.420.768.140x0.852455.82.560.8
15014.23.422.168.140x0.8525.459.02.564.0
18515.73.423.668.140x0.8526.962.32.567.3
240183.425.968.140x0.8529.267.43.1573.7
30020.13.428.368.140x0.8531.672.63.1578.9
400233.431.168.140x0.8534.679.83.1586.1
50026.53.434.768.140x0.8538.287.63.1593.9

Image:

Support and Services:

The Medium Voltage Power Cables product technical support and services include:

- Assistance with cable selection and specification

- Installation and commissioning support

- Troubleshooting and fault analysis

- Maintenance and repair services

- Consultancy services for system design and integration

Packing and Shipping:

Product Packaging:

  • The medium voltage power cables will be packed in strong and sturdy wooden reels to ensure safe transportation.
  • The reels will be wrapped with shrink wrap to protect the cables from dust, moisture, and other external factors.
  • The cables will be labeled with all necessary information, including product name, size, length, and quantity.

Shipping:

  • Shipping will be arranged by our team and will be delivered by a reliable and trusted shipping carrier.
  • The medium voltage power cables will be loaded onto a flatbed truck and secured properly to prevent any damage during transit.
  • Customers will be provided with a tracking number to monitor the shipment and ensure on-time delivery.

About Zhenglan Cable Technology Co., Ltd

Zhenglan Cable Technology CO., Ltd., formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large-scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan, and its headquarters are located on the 49th floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou Cable Science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.


RFQ:

1. Is your company a factory or a trade company?
Factory, more than 20 years in China


2. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.


3. What are your payment terms?
We normally accept a T/T 30% deposit and a 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance is also available.


4. What’s the delivery time?
Sample order needs 3~5 days.

Formal order depends on the quantity, usually, it needs 15 working days after you get your payment.


5. What is your MOQ?
Generally it is 1000m.
