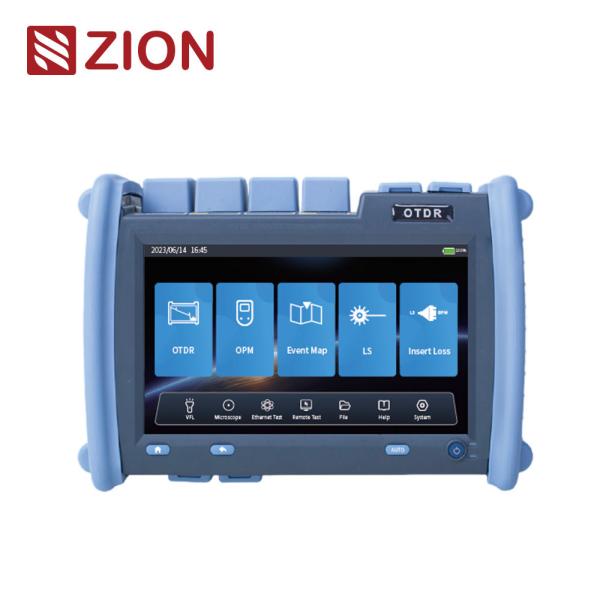

ZCOTDR-6800 High performance OTDR Optical Time Domain Reflectometer

ZCOTDR-6800 series high-performance OTDR adopts 7-inch color screen, which makes the operation easier. It integrates multifunction functions to help customers solve the communication link field test and later maintenance more effectively. The maximum dynamic range is 45dB. It can be penetrated through the light splitter to effectively improve the performance in PON network test. ZCOTDR-6800 series are mainly used to measure the length, loss and connection quality of optical fiber and cable. It is widely used in engineering construction, line maintenance test, emergency repair, development and production measurement of optical fiber and optical cable. It is mainly used in urban trunk line, backbone network and metropolitan area network.

Product features

• Quad-core processor, Linux system, smooth control

• The min event blind area is 0.8m, the max dynamic range is 45dB

• Large storage capacity, internal storage >12GB

• Generate PDF test and diagnosis report with one click

• HD multi-touch capacitive screen, resolution 1024X600

• PON network splitter test, up to 1/64 support

• Standard SOR file output format

• The file name can be output in both Chinese and English

• Integrate OTDR/VFL/LS/OPM/Event Map/Loss Test /End Face Identifie/Ethernet Remote/Network test

Technical specifications

ZCOTDR-6800 OTDR

Model

S1

S2

D0

D1

D2

D3

D4

T1

T2

T3

T4

F1

M1

SM1

Type

SM

MM

SM/MM

Wavelength

1650nm

1310nm 1550nm

1310nm 1490nm 1550nm

1310nm 1550nm 1625nm

1310nm /1550nm /1650nm

1310nm 1490nm 1550nm 1625nm

850nm 1300nm

850nm 1300nm 1310nm 1550nm

MaxDynamic Range(dB)

33

38

32 30

35 33

38 36

42 40

45 43

38 36 36

32 30 30

42 40 40

42 40 40

37 35 35 35

26 28

26 28 35 33

Event Blind Zone

1m

0.8m

0.8m

1m

0.8m

1m

1m

1m

ATT Blind Zone

5m

4m

4m

5m

4m

4m

5m

5m

Test Range

100m/500m/1.25km/2.5km/5km/10km/20km/40km/80km/125km/260km/420km

Pulse Width

3ns/5ns/10ns/20ns/30ns/50ns/80ns/100ns/200ns/300ns/500ns/800ns/1us/2us/3us/5us/8us/10us/20us

Ranging Accuracy

±(0.75m+Sample interval+0.005%xTest distance)

Loss accuracy

±0.01dB/dB

Max Sample Points

≥256k

Sample Resolution

0.05m-4m

OTDR

Reflection accuracy

0.03dB/dB

File Format

SOR Standard File Format

Loss Analysis

4-point method /5-point method

Laser Safety Level

Class Ⅱ

Refresh Rate

3Hz (Typ.)

Data Storage

≥12GB

Connector

FC/UPc(Interchangeable SC,ST)

OPM

Wavelength range

800nm~1700nm

Connector

Universal FC/SC/ST

Test scope

-50dBm~+26dBm/-70dBm~+10dBm

Uncertainty

±5%

Calibration wavelength

850nm/980nm/1300nm/1310nm/1490nm/1550nm/1625nm/1650nm

LS

Wavelength

Consistent with OTDR output wavelength

Output power

≥-5dBm

Stability

CW, +0.5dB/15min (Test after 15 minutes of preheating)

Connector

FC/UPC(Interchangeable SC,ST)

VFL

Wavelength

650nm士20nm

Output power

≥10 mW

Mode

CW/1Hz/2Hz

Connector

FC/UPC(Interchangeable SC,ST)

TheOptical LossTest index refers to the above light source and optical power meterindex.

Others

Display

7 inch color touch screen,resolution 1024X600

Power supply

AC/DC adapter: input: 100v~240V, 50/60Hz,0.6A, Qutput: 12V-19v, 15A, Lithium battery: 7.4v, 5200mAh

working temperature

-10°C~+50°C

Storage temperature

40°C~+70°C

relative humidity

0~95%,NonCondensing

Weight

<1.2kg

Size

227mmx160mmx70mm

Data interface

USB-Ax2,Type-C port, RJ45 LAN 100/1000Mbit/s

Power dissipation

<6W

Functions ofHost: OTDR/OPM/FL/LS/Event Map/fiber End Detection /Optical Loss Test /Ethemet Remote/Network test

Configuration list

NO.

Name

Quantity

Remark

1

Host

1

2

AC/DC Adapter

1

3

U disk(containing analysis software/ User’s Manual)

1

4

Data line

1

5

OTDR SC adapter

1

6

OPM SC adapter

1

7

User’s Manual

1

8

Calibration Certificate

10

9

Certificate/ Warranty card

1

10

Clean cotton piece

1

11

Leather knob

1

12

Special backpack for instrument

1
