Solderable super Thin 0.032mm Enameled Copper Winding Wire

Categories Ultra Fine Enameled Copper Wire
Brand Name: Ruiyuan
Model Number: 0.032mm
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Place of Origin: China
MOQ: 10 Kilogram/Kilograms
Price: Negotiation
Payment Terms: Negotiation
Supply Ability: 200 Ton/Tons per Month
Delivery Time: 2-15 days
Packaging Details: Carton
Product name: Solderable super Thin 0.032mm Enameled Copper Winding Wire
Diameter: 0.032mm
Insulation: UEW
Thermal class: 155/180
Type: Solid
Key word: Solderable super Thin 0.032mm Enameled Copper Winding Wire
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

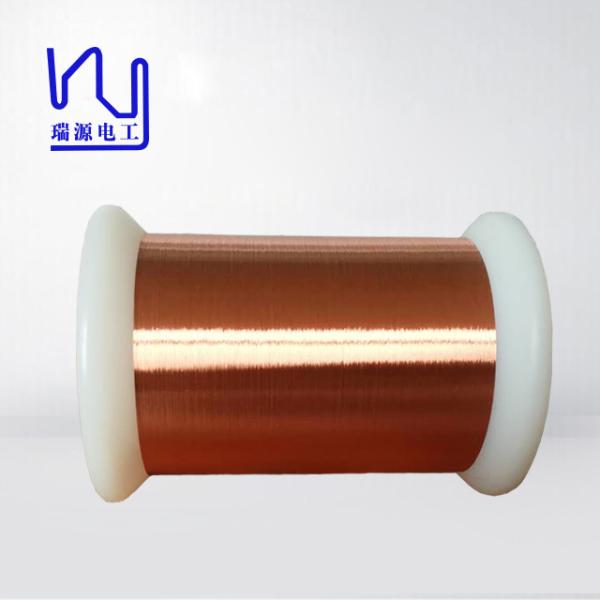

Solderable super Thin 0.032mm Enameled Copper Winding Wire

Solderable super Thin 0.032mm Enameled Copper Winding Wire


Transformers are essential components in electrical systems and also rely on our high-quality enameled copper wire. The efficiency of a transformer depends largely on the quality of the winding wire used in its construction. Ruiyuan's ultra-fine enameled wire has excellent electrical properties, ensuring that energy losses are minimized during operation. Using our wire, manufacturers can produce transformers that are not only efficient but also compact to meet the growing demand for space-saving solutions in electrical engineering.


Characteristics

Technical requests

Test Results

Conclusion

Sample 1

Sample 2

Surface

Good


OK

OK

OK

Bare Wire Diameter

0.032±

0.001

0.032

0.032

OK

0.001

Coating Thickness

≥ 0.005 mm

0.009

0.008

OK

Overall Diameter

≤ 0.042 mm

0.041

0.04

OK

Conductor Resistance

≤ 22.843 Ω/m

22.032

22.076

OK

Elongation

≥ 10 %

14

15

OK

Breakdown Voltage

≥ 275 V

1456

1312

OK

Pinhole Test

≤ 5 faults/5m

0

0

OK

Continuity

----

----

----

----

Test Items

Technical Requests

Resulat



Adhesive

Coating layer is good

OK



Cut-through

230℃ 2min no breakdown

OK



Heat Shock

200± 5℃/30min no crack

OK



Solder Ability

390± 5℃ 2Sec Smooth

OK



Solvent Resistance

No blister, no expansion, no shed

OK
