| Brand Name: | JINZHOU SHITAN |
| Model Number: | Gy 200 |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 20000 sets per year |
| Delivery Time: | 7-12 days |
| Packaging Details: | Standard Export Package |
| Product Name: | Gy 200 Soil Testing Drilling Rig |
| Drilling Depth: | 300m |
| Drilling Diameter: | 75-200mm |
| Type: | Borehole Drilling Machine |
| Power Type: | Diesel |
| Usage: | Water Well,geological exploration |
| Voltage: | 380V |
| Power(W): | 16.2kw |
| Dimension(L*W*H): | 1730*860*1360mm |
| Weight: | 2.5T |
| Company Info. |
| Jinzhou City Shitan Machinery Equipment CO. LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |

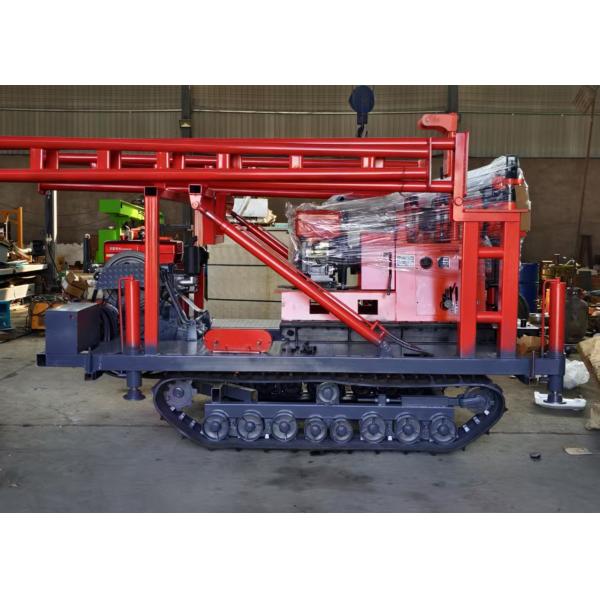

200-Meter-Deep GY200 Crawler-Type Soil Testing Drilling Rig Geological Exploration Core Sampling Equipment
GY 200 Borehole Drilling Machine Information:
The GY200 series soil monitoring drilling rig is a lightweight and versatile engineering exploration equipment, primarily used in geological surveys, environmental monitoring, foundation detection, and small-scale pile foundation construction. Below is a comprehensive summary of its core information
GY 200 Borehole Drilling Machine Technical Data:
| Drilling depth | 60 225 295m |
| Drilling diameter | 300 76 46mm |
| Drill pipe diameter | 50 42mm |
| Spindle Turnable Angle | 0-360degree |
| Net weight(excluding the power machine) | 670kg |
| Dimension(length*width*height) | 1820*980*1400mm |
| Revolving Plate | |
| Spindle speed | 900 475 388 205 157 68 r/min |
| Maximum torque | 2000N*m |
| Driving travel | 400mm |
| Maximum Cylinder driving force | 2,9000N |
| Maximum Cylinder lifting force | 3,9000N |
| Lifter | |
| Lifting capacity | 3,0000N |
| Bobbin line speed (2 layers) | 0.27 0.64 0.83 1.58 1.64 m/s |
| Bobbin diameter | 135mm |
Core Functions and Features






|
