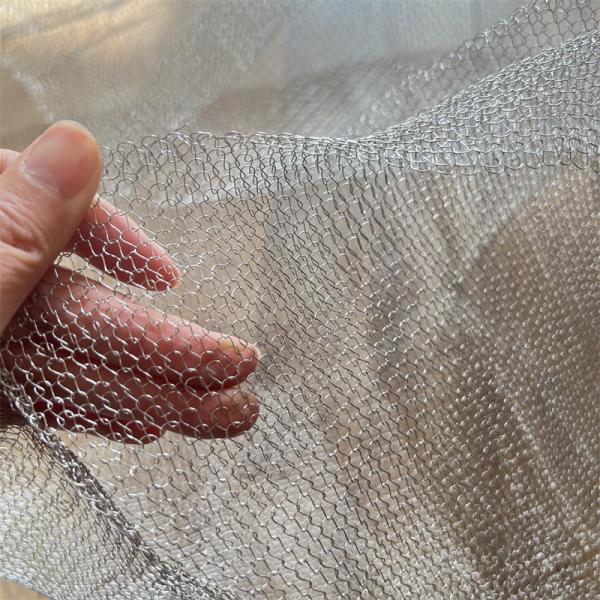

Knitted Woven Insulation Mesh

Quick details of Knitted Woven Insulation Mesh

Material:304, 304L, 316, 316L 430, 410 stainless steel wire,copper wire

Wire diameter:0.07-0.55mm; common wire diameter: 0.2mm-0.25mm

Opening size:(2x3mm) to (4x5mm) to the (12x6mm) also according to customer requirements on the hole size fine-tuning. The cutout form of the large hole and the orifice cross-arranged (the size of the holes in the longitudinal direction is the same,width is different).

Woven style:Single wire woven; Double wires woven; several wires woven

Standard Forms:Standard type; High-efficiency type; High wear type; Damping type

Width:40mm 80mm 100mm 150mm 200mm 300mm 400mm 500mm 800mm 100mm etc

Length:30m 50m 100m or as your requested

Mesh shape: Flat type and Corrugated type

Description of Knitted Woven Insulation Mesh

knitted woven insulation mesh types: Round wire knitted mesh,Flat wire knitted mesh, Single-strand knitted mesh, Multi-strand knitted mesh

Knitted mesh is also known as vapor-liquid gas-liquid filter mesh, broken foam network, (referred to as gas-liquid network, also called mist nets, woven wire mesh, knitted net, braiding wire, shielding wire mesh).
Knitted mesh is a kind of a special the form of woven wire mesh for the chemical industry in the production of wire mesh demister,catalyst and distillation, evaporation, absorption process in the droplet entrainment in the gas and liquid foam to eliminate or capture.

Specification of Knitted Woven Insulation Mesh

Recommendations:
Below is a list of our recommendations based on various knitted wire mesh needs.
For maximum strength and temperature, we recommend the 0.0095” and 0.011” wire diameters.
For applications that are either sewn or require less frequent replacement, we recommend the 0.008” wire diameter.
For maximum flexibility, we recommend the 0.006” wire diameter.
For extremely high temperature applications, we recommend the crimped mesh. Although it is reduced in coverage, the crimped mesh allows for a slight air gap in extremely high temperature applications as well as counteracts the tendency of the material to toll back when cut.
For exhaust applications, we recommend versions 309 and 310 in Stainless Steel.

Application of knitted woven insulation mesh

Knitted wire mesh is widely used as demister pads for gas and liquid separators.
Knitted wire mesh can be used for cleaning machines, kitchens and other components and parts.
Compressed knitted wire mesh can be installed in the engines to decrease noise and reduce shocks.
Knitted wire mesh can be used as shielding mesh for EMI/RFI shielding.
