W01-358-7103 Firestone Single Convoluted Air Bellow for Truck Air Spring Assembly

Categories Firestone Air Bags
Brand Name: AIRSUSTECH
Model Number: 1B53014
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou, China
MOQ: 1
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal or Others
Supply Ability: 1000PCS/Week
Delivery Time: 5-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Manufacturer: AIRSUSTECH
Product NO.: 1B53014
Compressed Height: 2 Inches
Expanded Height: 6 Inches
Other OEM NO.: Goodyear 1B14-350
Warranty: One Year
Operation: Gas-Filled
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

W01-358-7103 Firestone Single Convoluted Air Bellow for Truck Air Spring Assembly

W01-358-7103 Firestone Single Convoluted Air Bellow for Truck Air Spring Assembly


Product Technical Data


Maximum Diameter @ 100 PSIG (inches)15.2
Maximum Height (inches)5.5
Maximum Stroke (inches)3.5
Minimum Usable Height (inches)2
Force @ 80PSIG at Stroke of 1 Inch (pounds)10220
Force @ 80PSIG at Stroke of 3 Inch (pounds)6460
Force @ 80PSIG at Stroke of Maximum Stroke (pounds)4950
Material2-Ply Standard Cord
Bead Plate Type2
Blind Nut Centers (inches)6.25
Design Height5
Load (at Design Height) at: 40 psig (pounds)3010
Load (at Design Height) at: 60 psig (pounds)4610
Load (at Design Height) at: 80 psig (pounds)6460
Natural Frequency (@80 psig) (cpm)152
% of Isolation at Forced Frequency 400 CPM83.1
% of Isolation at Forced Frequency 800 CPM96.3
% of Isolation at Forced Frequency 1500 CPM99

Other OEM Number


Firestone: W01-358-7103, W01 358 7103, W013587103

Contitechr: FS 530-14, FS530-14, FS53014
Triangle: AS-4442, AS4442, AS 4442
FleetPride: AS7103, AS-7103, AS 7103
Goodyear: 1B14-350, 1B 14-350, 1B14350
Goodyear Flex No. 578913351
Taurus: 6326
TRP: AS71030, AS 71030, AS-71030
Peerless: 0550-00015, 055000015, 0550 00015


1B Style Industrial Air Springs We Have


AIRSUSTECH NO.Cross References
1B9×5

Goodyear 1B9-204
Goodyear 1B9-202
Goodyear Bellows No. 578-91-3-201

1B8×6

Firestone W01-358-7598
Goodyear 1B8-580
Firestone W01-358-7605

1B7070

Contitech FS 70-7
Phoenix SP 1B 05
Bosch 8224 19002
Festo EB-165-65
Weforma WBE 200-E1
Firestone W01-M58-6155

1B4060

Contitech FS 40-6
Phoenix SP1B04
Weforma WBE100-E1

1B5510S

Goodyear 1B5-550
Goodyear Bellow NO. 579-91-3-501
Enidine Inc. YI-1B5-510

1B6910

Firestone W01-M58-6374
Contitech FS 200-10
Phoenix SP 1B 12
Dunlop(FR) 9 1/4x1 S09101
Bosch 822419004
Festo EB-250-85
Norgren PM/31091(8 1/4x1)


The Reason Why Choose Us?


1. Variety of products and high quality. We have hundreds of models to meet your needs. And our products have passed ISO/TS 16949:2009 certification, reaching international standards, with high quality.
2. Respond promptly. We generally reply within one day.
3. Good after-sale service. Customer satisfaction is our greatest pursuit. Once the product has any damage or quality problem, please advise us and we will replace it.

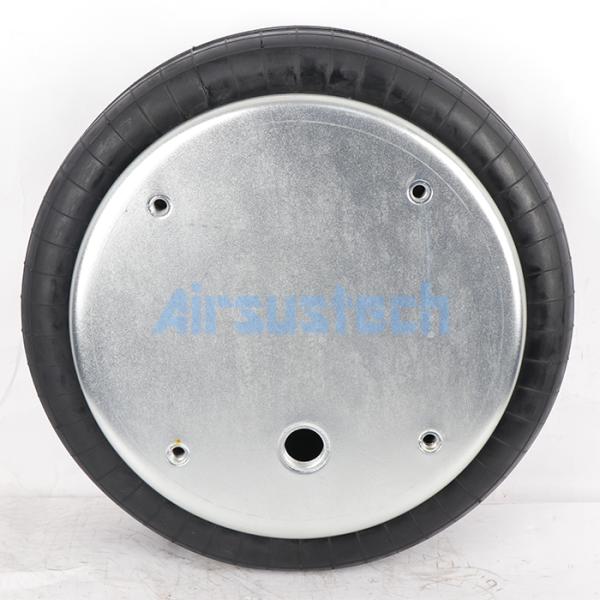

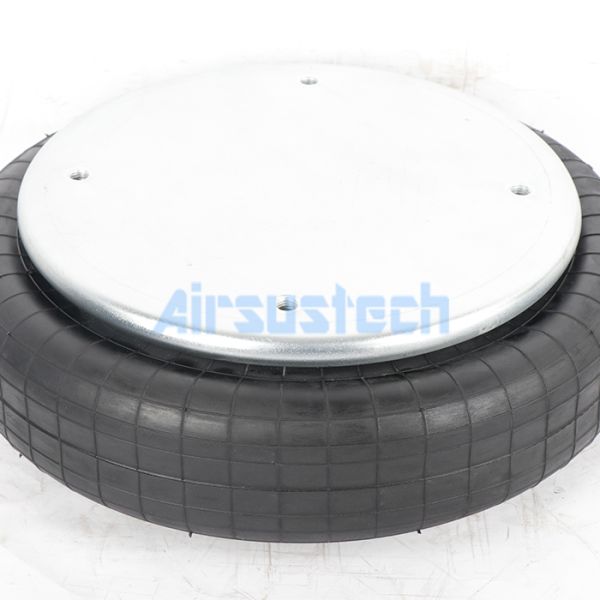

1B53014 Detailed Pictures
