| Categories | BALL VALVE |
|---|---|
| Brand Name: | PVPT |
| Place of Origin: | China |
| MOQ: | 1 PC |
| Payment Terms: | L/C, T/T, Western Union |
| Delivery Time: | 30 days after receiving down payment |
| Packaging Details: | wooden cases, pallets or as per customer request |
| Design standard: | DIN3357 |
| Pressure: | PN16 |

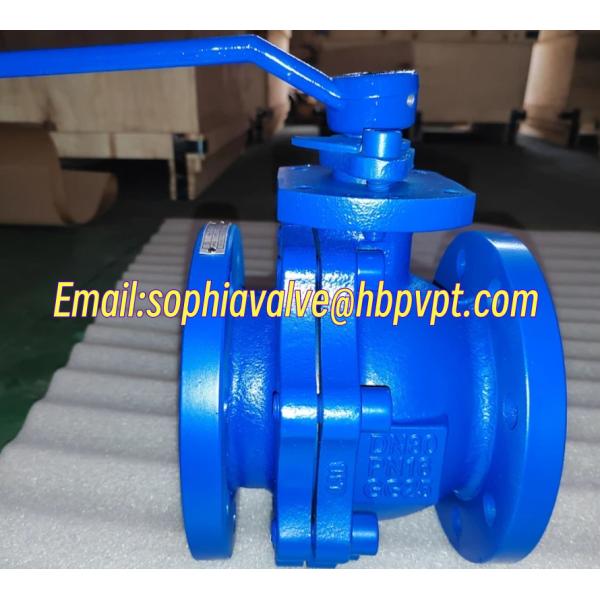

DIN3357 PN16 cast iron 2-pc ball valve
Specifications
DIN ball valve is widely used in petroleum refining, long-distance pipeline, chemical industry, paper, pharmaceutical, water conservancy, electric power, municipal, steel and other industries.
cast iron 2-pc ball valve range:
1.Production Size:2"~10".DN50~DN250
2.Pressure:PN16
cast iron 2-pc ball valve standard
1.Design Standard:DIN 3357
2.Face to Face:DIN 3202,EN558-1,DN15-DN150(F4),DN200(F5)
3.Flange Standard:DIN2533,EN1092-2
4.Testing Standard:EN12266,DIN3230,ISO5208
cast iron 2-pc ball valve main material of parts:
1.Body:GG25,GGG40
2.Bonnet:GG25,GGG40
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Ball:SS304,SS316
5.Gasket:PTFE
6.Seat:PTFE,RPTFE
7.Stem Packing:PTFE
8.Handle:ASTM A536 65-45-12
Product show
|
JIS 10K 20K flange end cast steel SCS13 ball valve
ANSI PTFE flange end cast iron ball valve
stainless steel SCS13 JIS10K flange end ball valve
FC200 JIS standard 10k cast iron ball valve
DIN3202 F6 PN16 flange end ball valve
PAWOFUOU VALVE 300LB 304 ball valve
DN25/DN40 PN16 GG25 cast iron flanged ball valve
DIN3357 floating ball valve cast iron flanged ball valve
2-PC cast iron flanged ball valve with DIN standard
JIS10K 2-PC FC200 cast iron ball valve
