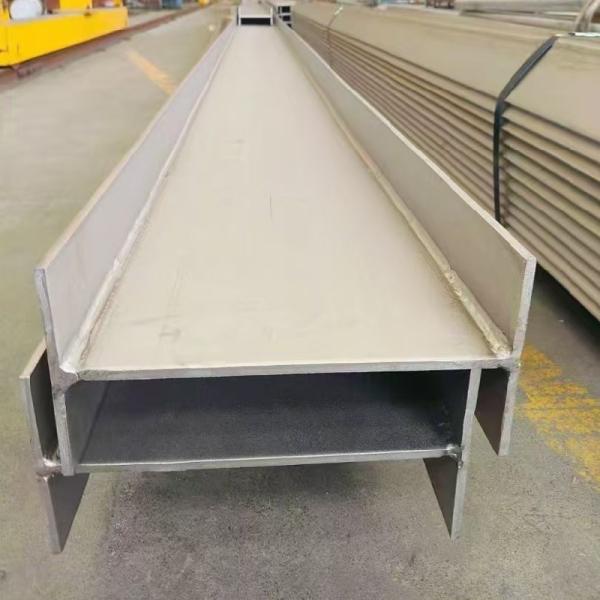

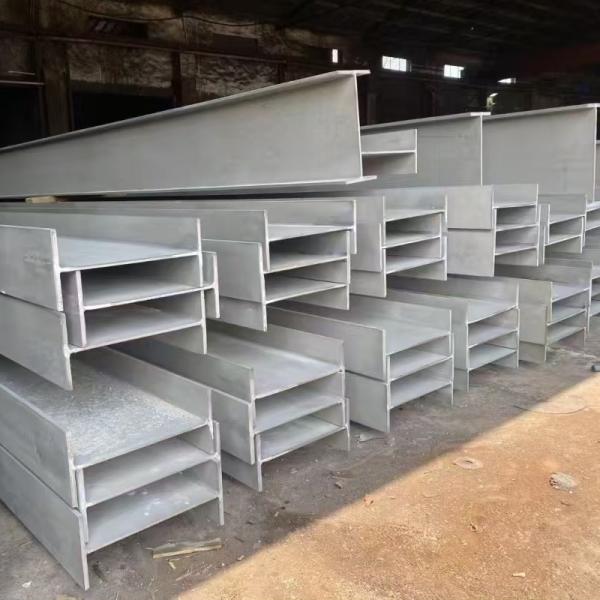

Stainless Steel H Beam / I Beam With Holes 201 304 316L 310S for Structure

Stainless Steel H-Beam / I-Beam With Holes 201 304 316L 310S for Structure

Products Specification

Stainless steel H-shaped steel introduction
Stainless steel H-shaped steel is a section of "H" shaped long steel, made of stainless steel, with excellent corrosion resistance and high strength, widely used in construction, machinery manufacturing, Bridges and other fields.

specification
The specifications of stainless steel H-shaped steel are usually expressed in terms of height (H) × width (B) × web thickness (t1) × flange thickness (t2). Common specifications are:

• 100 * 100 * 6 x 8
• 150 * 150 * 7 x 10
• 200 x 200 x 8 x 12
• 250 x 250 x 9 x 14
• 300 x 300 x 10 x 16

Production technology

• Raw material preparation: Select the appropriate stainless steel blank.
• Heating: The billet is heated to a suitable temperature.
• Rolling: Forming by hot or cold rolling.
• Cooling: cooling after rolling to control the structure properties.
• Straightening: Make sure the steel is straight and flat.
• Cutting: Cut as required.
• Surface treatment: polishing, pickling and other treatments to improve surface quality.

peculiarity

• Corrosion resistance: Stainless steel makes it excellent in harsh environments.
• High strength: strong bearing capacity, suitable for heavy load structures.
• Beautiful: smooth surface, suitable for high appearance requirements.
• Easy processing: welding, cutting, drilling and other processing performance is good.
• Long life: Corrosion resistance and high strength extend the service life.

Apply

• Building structure: Used for factory buildings, high-rise buildings, etc.
• Bridge engineering: Used for bridge main beams and support structures.
• Machine building: Used for heavy machinery frames.
• Shipbuilding: for hull structure.
• Chemical equipment: equipment for corrosion resistance requirements.

The difference with channel steel and Angle steel

Section shape:

• H-shaped steel: H-shaped, wide flange, thin web.
• Channel steel: channel shape, narrow flange, thick web.
• Angle steel: L-shaped, with wings of equal or unequal length.

Mechanical properties:

• H-shaped steel: good bending and compressive properties, suitable for large-span structures.
• Channel steel: good torsional resistance, suitable for local load bearing.
• Angle steel: good tensile properties, suitable for connection and support.

Application scenario:

• H-shaped steel: large buildings, Bridges, etc.
• Channel steel: machinery and equipment, vehicle manufacturing, etc.
• Angle steel: building frame, bracket, etc.

Processing properties:

• H-shaped steel: complex processing, need special equipment.
• Channel steel: Processing is relatively simple.
• Angle steel: the simplest processing, suitable for a variety of connection methods.

Stainless steel H-shaped steel is widely used in many fields because of its corrosion resistance and high strength. Compared with channel steel and Angle steel, H-beam steel is different in section shape, mechanical properties and application scenarios, and the selection should be determined according to specific needs.
