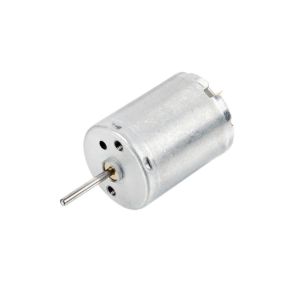

RF-370CA-12560 Mini Brushed DC Electric Motor 12V-24V 7000rpm 24mm For Auto Actuator Cleaner

RF-370CA-12560 12V-24V 7000rpm 24mm Mini 370 Motor for Auto Actuator Cleaner

RF-370CA-12560 Micro Motor Features:

1.Model: RF-370CA-12560

2.Motor diameter: 24.4mm Max

3.Motor length: 30.8mm

4.Output shaft diameter: 2mm

5.Output shaft length:10.5±0.2mm or as your request

6.Weight: 50g

7. Test data:

Voltage: DC6V Speed: 1800RPM Current: 0.01A

Voltage: DC9V Speed: 2700RPM Current: 0.01A

Voltage: DC12V Speed: 3600RPM Current: 0.01A

Voltage: DC18V Speed: 5400RPM Current: 0.02A

Voltage: DC24V Speed: 7200RPM Current: 0.06A

RF-370CA Brushed dc Electric Motor Technical Parameters:

RF-370 Product Standard Specification

Storage Test under low temperature:

Still can't find ideal motors?

Obtain a quote in 12 Hours Get in touch now! Any enquiries regarding the Micro DC Motor, specifications, data sheet, quote, etc.

If you would like the RK-370 small motors to be connected with a bespoke lead wire. For example, different lead wire and strip lengths with a connector . You can use the footer form to get in touch with us and explain your needs. Please do not hesitate to contact us using the footer form; any issues will be treated carefully and handled professionally.
