| Brand Name: | EDL |
| Model Number: | 504P-86A |
| Certification: | ISO9001, ISO14001, RoHS |
| Place of Origin: | China |
| MOQ: | 1pcs |
| Price: | Negotiate |
| Payment Terms: | T/T |
| Supply Ability: | 30,000pcs/day |
| Delivery Time: | 3-15days |
| Packaging Details: | Carton |

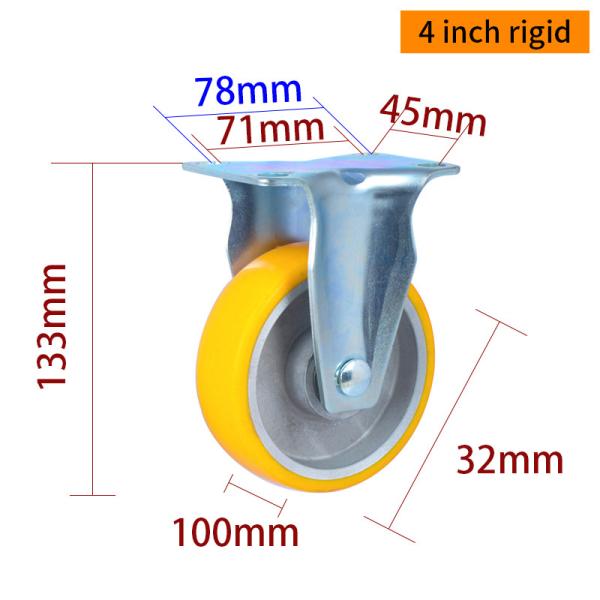

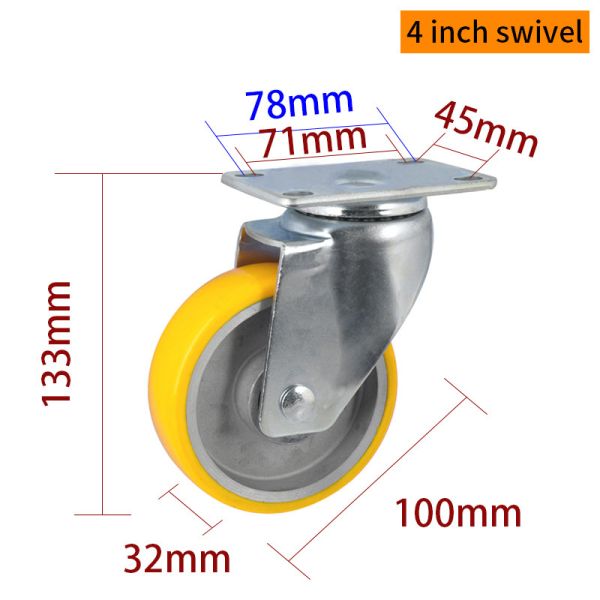

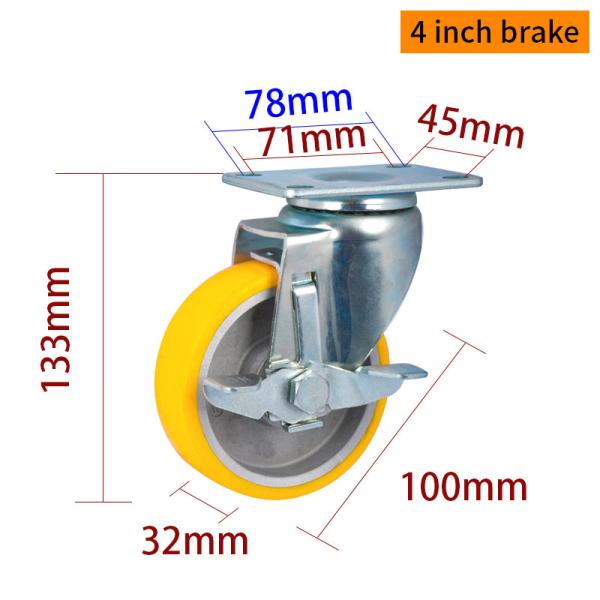

| Wheel Diameter: | 4inch(100mm) |
| Dynamic Load: | 150kg |
| Tread Material: | TPU |
| Core Material: | Aluminum |
| Mounting Type: | Rigid/Swivel / Brake |
| Mounting Height: | 133mm |
| Plate Thickness: | 4mm |
| Bracket Thickness: | 2.5mm |
| Frame Material: | Cold-Rolled Plate |
| Surface Treatment: | Zinc Coating |
| Bracket Width: | 41mm |
| Wheel width: | 32mm |
| Bearing: | Double ball bearings |
| Tread Color: | Yellow |
| Applicable Temperature: | -20℃～80℃ |
| Tread Hardness: | 92A |
| Name: | Industrial Caster Wheels |
| Company Info. |
| Guangzhou EDL Casters Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
EDL Medium Duty 4inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type 504P-86A
The EDL Medium Duty 4-inch 150kg Plate TPU Caster 504P-86A features high-performance TPU for excellent wear resistance, smooth and quiet rolling, and reduced floor damage. The aluminum alloy wheel core is lightweight yet impact-resistant, enhancing durability. Dual ball bearings ensure flexible movement, while the 4-inch size supports up to 150kg, ideal for industrial and commercial use. The plate mount ensures stability, offering both rigid and swivel types, along with side brake and iron dual brake options for safety. Its bright yellow design enhances visibility and professionalism. EDL 504P-86A delivers premium materials and craftsmanship for demanding mobility needs.
Wheel Item No. | Size | Wheel Diameter | Wheel Width | Bracket Width | Load Capacity | Core | Tread | Bearing | Applicable Temperature | Hardness |
| 504-86A | 4" | 100mm | 32mm | 41mm | 150Kg | Aluminum | TPU | Double ball bearing 6001 | -30℃～80℃ | 92A |
FAQ:
Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.
Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from
Yiwu. Welcome to visit.
Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.
Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product
it's 50%) of deposit upon signing the PI and the rest will be
cleared by T/T before delivery.
Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.
|
