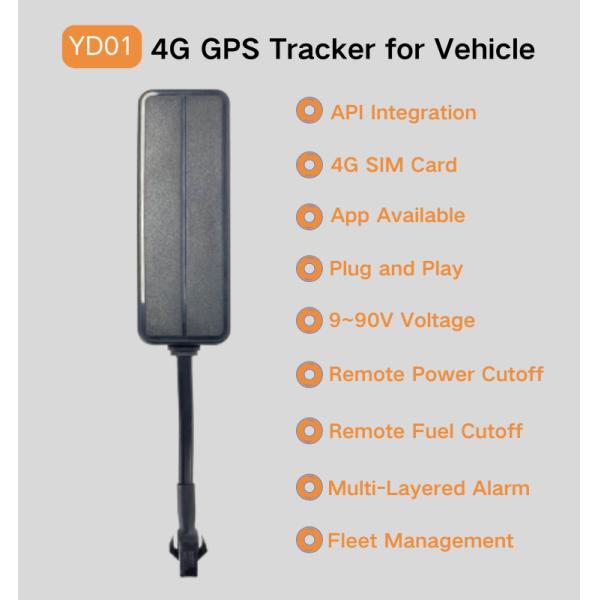

| Categories | GPS Tracker For Car |
|---|---|

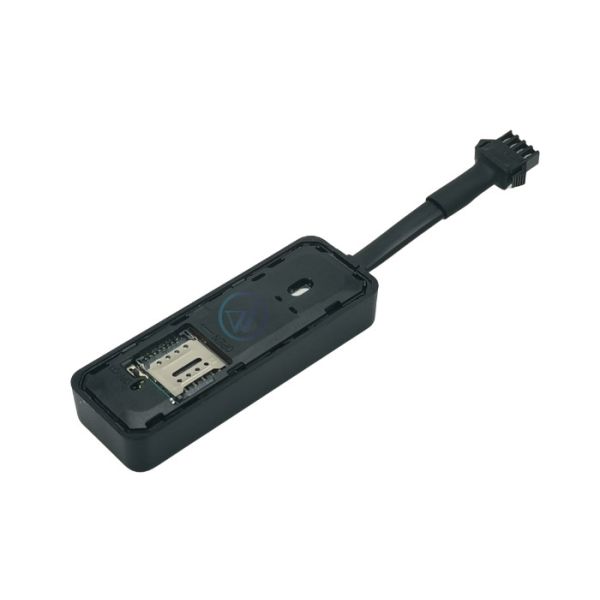

| Brand Name: | YOUWEI |
| Model Number: | YW-D01 |
| Certification: | CE FCC RoHS |
| Place of Origin: | Guangdong, China |
| MOQ: | 10 |
| Price: | USD 8-20 UNIT |
| Payment Terms: | T/T, Western Union, MoneyGram, D/A, L/C, Paypal |
| Supply Ability: | 10000pcs |
| Delivery Time: | 5-7 business days |
| Packaging Details: | Cardboard Box/ Cartons |
| Network type: | 4G |

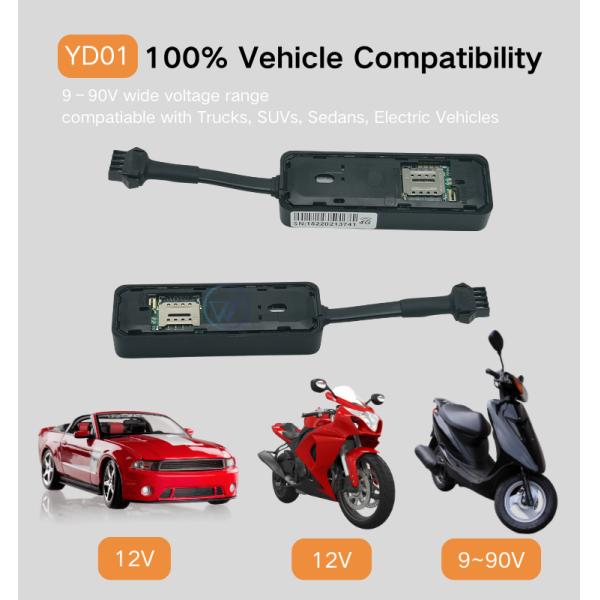

| Wide voltage: | 9–90V |

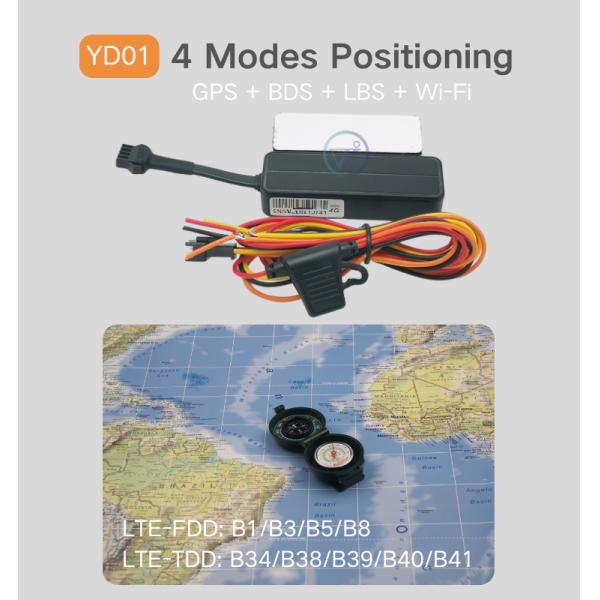

| Locating Mode: | GPS + BDS + LBS + Wi-Fi |
| Built-in Battery: | 150mAh |

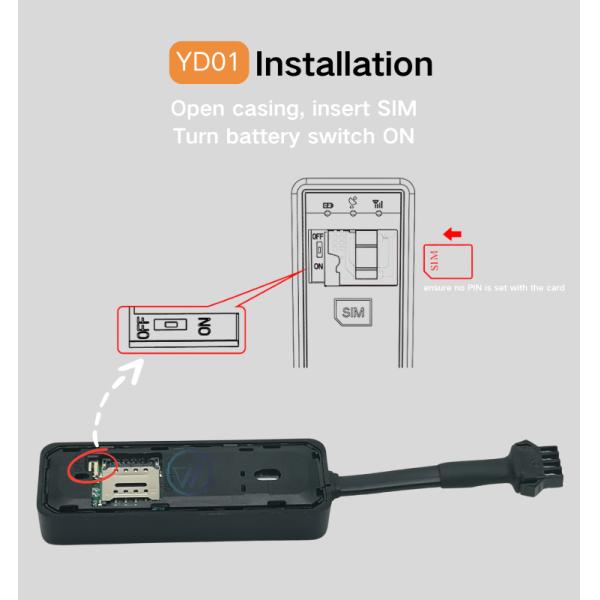

| Sim Card: | Support |

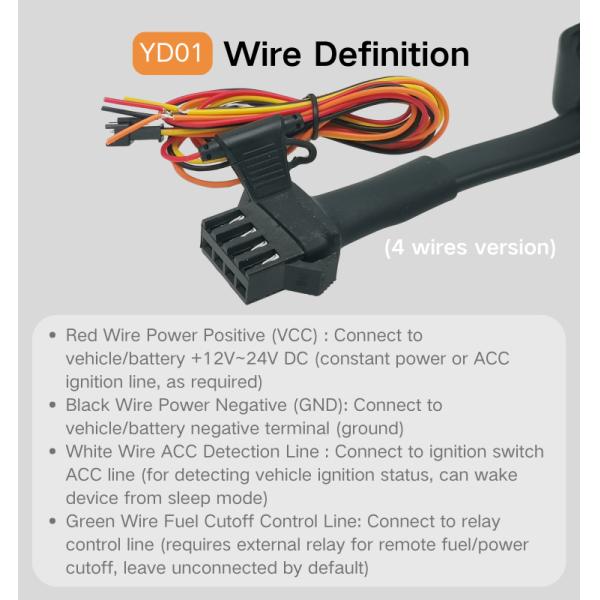

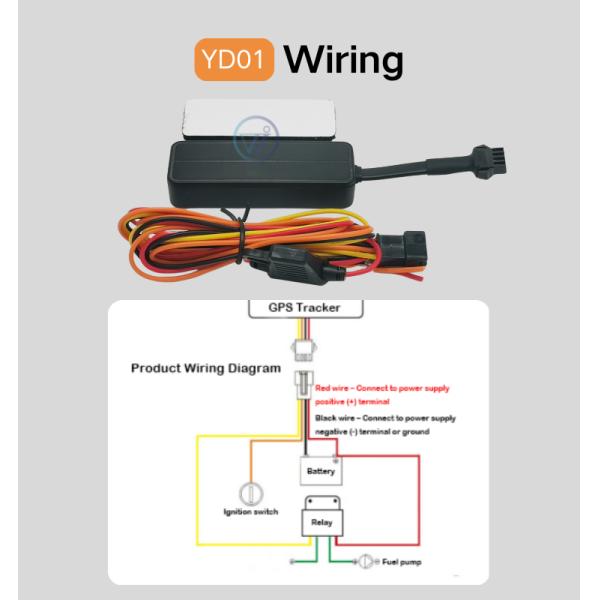

| Wire: | 4 Wires |
| Application: | Car, Motorcycle, Truck, Electric Vehicle |
| Color: | Black |
| Customized Service: | Available |
| API integration: | Support |
| Sensor: | Vibration sensor |
| Company Info. |
| Shenzhen Youwei Communication Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

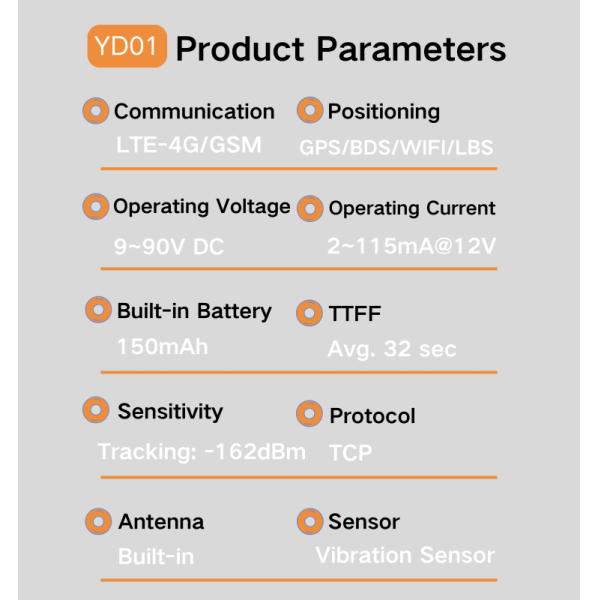

| Specification | Details |
| Model No. | YW-D01 |
| Dimensions | 74 (L) × 26 (W) × 12 (H) mm |
| Weight | 28g (including battery) |
| Built-in Battery | 150mAh (3.7V) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Sensor | Precision vibration sensor |
| Frequency Bands | LTE-FDD: B1/B3/B5/B8 LTE-TDD: B34/B38/B39/B40/B41 |
| Communication Module Brand | 4G full-network module |

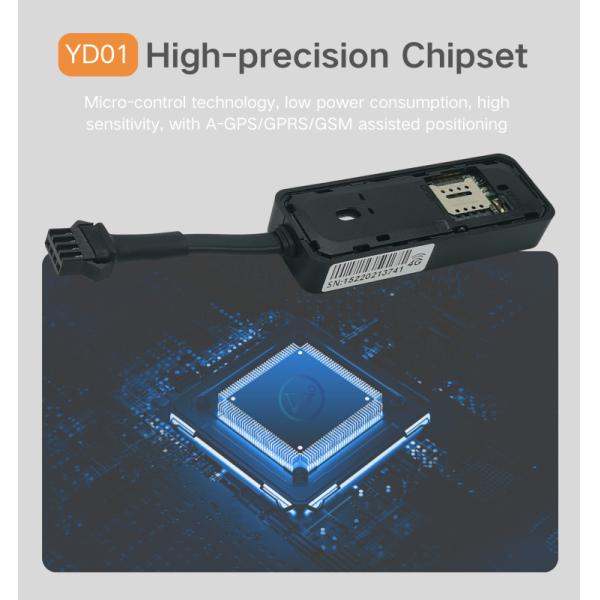

| Positioning Module Brand | GPS & BDS module |
| Max Output Power | EGSM900: 33dBm ±2dB/5dBm ±5dB DCS1800: 30dBm ±2dB/0dBm ±5dB WCDMA: B1/B5/B8: 24dBm +1/-3dB/<-49dBm LTE-FDD: B1/B3/B5/B8: 23dBm ±2dB/<-39dBm LTE-TDD: B34/B38/B39/B40/B41: 23dBm ±2dB/<-39dBm |
| Dynamic Output Range | -15 to -108dBm |
| Receiver Sensitivity | -107dBm |
| Max Frequency Error | ±0.1ppm |
| Sensitivity | Cold start: -145dBm Hot start: -156dBm Warm start: -145dBm Navigation: -160dBm Tracking: -162dBm |
| Time to First Fix (TTFF) | Cold start: Avg. 32 sec |
| GSM Antenna | Built-in |
| GPS Antenna | Built-in |
| LED Indicator | Power/status indicator |
| Transmission Protocol | TCP |
| Power Detection | Alarms if main power is disconnected |
| Data Reporting | Real-time GPS updates, customizable for clients |
| Electronic Fence | TBD |
| Driving Behavior Detection | Alerts if speed exceeds set limit |
| GPS Data | Real-time positioning updates |
| Vibration Alarm | Triggers alarm if vehicle vibrates in armed state |
|
