High Impact PA66 Material Pa66 Plastic Material Oil Resistant For Gears Bearings

Categories PA66 Material
Brand Name: Shulman
Model Number: PA66 66 MV HI
Certification: MSDS
Place of Origin: Germany
MOQ: 25KG
Price: USD4.5-5.4KG
Payment Terms: T/T
Supply Ability: 500TONS
Delivery Time: 7-15days
Packaging Details: PE plastic/paper bag
Material: PA66 66 MV HI
Color: natural color
Material Shape: Pellets
Grade: Injection molding grade
Packing: 25 kg/pack
Port: ShenZhen/GuangZhou,China
Type: Raw Granules Resins
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High Impact PA66 Material Pa66 Plastic Material Oil Resistant For Gears Bearings


Products Description




High impact PA66 plastic 66 MV HI American Shulman impact modified low temperature toughness oil resistant nylon 66 raw material


Material property
Good toughness and impact resistance to various characteristic levels
Wide range of applications
Auto parts: With its good toughness, impact resistance and chemical resistance, it can be used to manufacture a variety of auto parts, such as gears, bearings, rollers, spring brackets, pulleys, bolts, impels, fan blades, propellers, etc.
Electronic and electrical parts and home appliance parts: flame retardant characteristics make it suitable for high temperature electrical socket parts, electrical parts, battery boxes, insulated electrical parts, wire core and other electronic and electrical products, as well as related parts in home appliances.
Wire and cable applications: Meet the requirements of wire and cable for material properties, such as mechanical strength, insulation, chemical resistance, etc.

product feature

PA66
66 MV HI

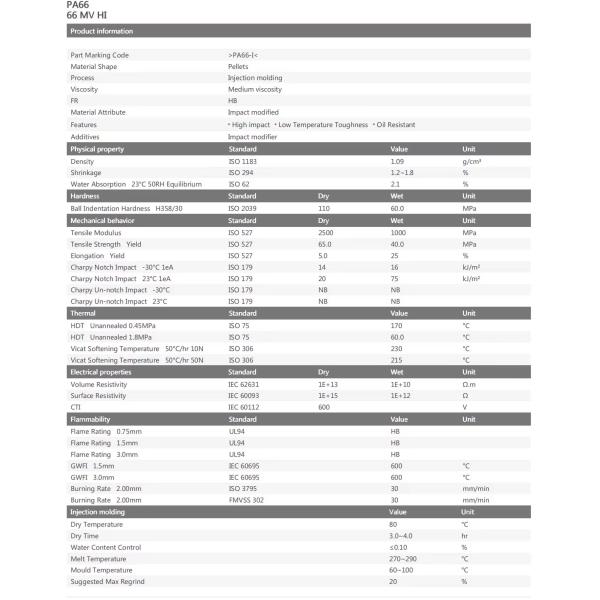

Product information
Part Marking Code>PA66-I<
Material ShapePellets
ProcessInjection molding
ViscosityMedium viscosity
FRHB
Material AttributeImpact modified
Features·High impact ·Low Temperature Toughness ·Oil Resistant
AdditivesImpact modifier
Physical propertyStandardValueUnit
DensityISO 11831.09g/cm³
ShrinkageISO 2941.2~1.8%
Water Absorption 23℃50RH EquilibriumISO 622.1%
HardnessStandardDryWetUnit
Ball Indentation Hardness H358/30ISO 203911060.0MPa
Mechanical behaviorStandardDryWetUnit
Tensile ModulusISO 52725001000MPa
Tensile Strength YieldISO 52765.040.0MPa
Elongation YieldISO 5275.025%
Charpy Notch Impact -30℃ 1eAISO 1791416kJ/m²
Charpy Notch Impact 23℃ 1eAISO 1792075kJ/m²
Charpy Un-notch Impact -30℃ISO 179NBNB
Charpy Un-notch Impact 23℃ISO 179NBNB
ThermalStandardValueUnit
HDT Unannealed 0.45MPaISO 75170
HDT Unannealed 1.8MPaISO 7560.0
Vicat Softening Temperature 50℃/hr 10NISO 306230
Vicat Softening Temperature 50℃/hr 50NISO 306215
Electrical propertiesStandardDryWetUnit
Volume ResistivityIEC 626311E+131E+10Ω.m
Surface ResistivityIEC 600931E+151E+12Ω
CTIIEC 60112600V
FlammabilityStandardValueUnit
Flame Rating 0.75mmUL94HB
Flame Rating 1.5mmUL94HB
Flame Rating 3.0mmUL94HB
GWFI 1.5mmIEC 60695600
GWFI 3.0mmIEC 60695600
Burning Rate 2.00mmISO 379530mm/min
Burning Rate 2.00mmFMVSS 30230mm/min
Injection moldingValueUnit
Dry Temperature80
Dry Time3.0~4.0hr
Water Content Control≤0.10%
Melt Temperature270~290
Mould Temperature60~100
Suggested Max Regrind20%

Application



Optical lighting


It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

Electronic appliances

It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

Mechanical equipment

It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields


Physical Property Parameter​


Company Profile:


Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
our Product Range Includes Engineering Materials And General Mater

Warehouse:


FAQ
How about our package?
1.All the packing can be customized.
2.Plastic bags for inner packing, good quality moisture-proof bags for outer packing.
3.We generally make 25kgs per small bag by accurate weight, this will be very convenient for the customer using. It’s very easy to
handle the dosage.
What are our business principles?
1.For the trial order, 1tons will be acceptable.
2.We will do our best for the customer as long as you choosing us.
3.We promise to solve all the problems during trading process, our quality and the products will be approved by your side.
What are the advantages of our shipping and delivery?
1.We make sure all the products will be inspected strictly before loading.
2.We will make the shipment within 7 days after confirm the payment.
3.We will recommend the best suitable shipping company for our customer from different countries. Saving cost for our client

ApplicationElectronics electrical appliances mobile phones cars
GradeInjection Grade,Extrusion Grade
OEM/ODMAccepted
