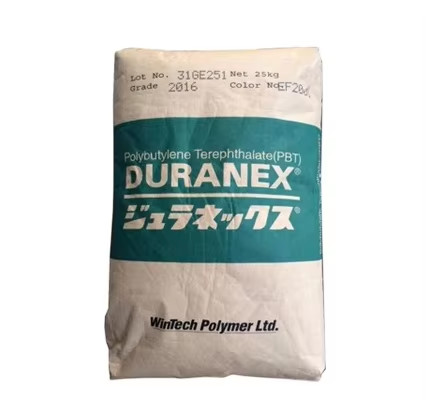

High Stability PBT Polybutylene Terephthalate Low Moisture Absorption

Products Description

PBT 3316 High strength flame retardant chemical resistance high rigidity injection molded automotive parts

Automotive electronic systems: such as automotive engine control modules, sensors and wiring harps, its high temperature performance and flame retardant performance make it an ideal material for automotive electronic systems, but also as a distributor in the car, body parts, igniter coil skeleton, insulation cover, exhaust system parts, motorcycle igniter and so on.
Electronic and electrical field
Electronic equipment components: applicable to the field of electronic equipment, such as power switches, plug-ins, connectors, etc., TV deflector coils, picture tubes and potentiometer brackets, sound output transformer skeleton, adapter skeleton, switch connectors, etc., can maintain stable performance in high temperature environment.

product feature

PBT 3316 Product information Other Certificates Part Marking Code Color Material Shape Process FR Material Attribute specification Features	MSDS >PBT-GF30-FR(17)< NC Pellets Injection molding V-05VB 5VA 30%Glass Fiber Reinforced Halogen ·RoHS ·UL ·High strength·High stiffness·Chemical Resistant ·Office Applications·Instrument parts·Switches ·E&E			Applications·Terminal block
Application	·Connector·Low voltage switches ·Coil skeleton·Home ·Industrial electric·Compacting equipment·Housewares			Appliances Applications application·Cooling fan
Additives	Flame Retardant Agent Lubricant Mold Releases
UL File NO.		E213445
Certificate W MSOS
Physical property		Standard	Value		Unit
Density		ISO 1183	1.66		g/cm³
Mechanical behavior		Standard	Value		Unit
Tensile Strength		ISO 527	143		MPa
Elongation Break		ISO 527	2.0		%
Flexural Strength		ISO 178	224		MPa
Flexural Modulus		ISO 178	10000		MPa
Charpy Notch Impact leA		ISO 179	10.0		kJ/m²
Thermal		Standard	Value		Unit
HDT 1.8MPa		ISO 75	211		℃
CLE Flow 23~55℃		ISO 11359	2E-5		cm/cm/℃
CLE xFlow 23~55℃		ISO 11359	9E-5		cm/cm/℃
Electrical properties		Standard	Value		Unit
Volume Resistivity		IEC 60093	1E16		Ω.cm
Surface Resistivity		IEC 60093	1E17		Ω
Dielectric Strength Break Down		IEC 60243	20		KV/mm
CTI		IEC 60112	250		V
Flammability		Standard	Value		Unit
Flame Rating NC BK 0.38mm		UL94	V-0
Flame Rating All Color 0.75mm		UL94	V-0
Flame Rating NC BK 1.0mm		UL94	V-05VB
Flame Rating All Color 1.5mm		UL94	V-05VA
Flame Rating All Color 3.0mm		UL94	V-05VA
UL		Standard	Value		Unit
UL FlameRating NC BK 0.38mm		UL94	V-0
UL FlameRating ALL 0.75mm		UL94	V-0
UL FlameRating NC BK 1.0mm		UL94	V-05VB
UL FlameRating ALL 1.5mm		UL94	V-05VA
UL FlameRating ALL 3.0mm		UL94	V-05VA
HWI NC BK 0.38mm		UL746A	4		PLC
HWI ALL 0.75mm		UL746A	4		PLC
HWI NC BK1.0mm		UL746A	4		PLC
HWI ALL 1.5mm		UL 746A	2		PLC
HWI ALL 3.0mm		UL 746A	1		PLC
HAI NC BK 0.38mm		UL746A	0		PLC
HAI ALL 0.75mm		UL746A	0		PLC

Optical lighting

It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

Electronic appliances

It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

Mechanical equipment

It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields

Physical Property Parameter

Company Profile:

Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.

Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.

We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.

our Product Range Includes Engineering Materials And General Mater

Warehouse:

FAQ

How about our package?

1.All the packing can be customized.

2.Plastic bags for inner packing, good quality moisture-proof bags for outer packing.

3.We generally make 25kgs per small bag by accurate weight, this will be very convenient for the customer using. It’s very easy to

handle the dosage.

What are our business principles?

1.For the trial order, 1tons will be acceptable.

2.We will do our best for the customer as long as you choosing us.

3.We promise to solve all the problems during trading process, our quality and the products will be approved by your side.

What are the advantages of our shipping and delivery?

1.We make sure all the products will be inspected strictly before loading.

2.We will make the shipment within 7 days after confirm the payment.

3.We will recommend the best suitable shipping company for our customer from different countries. Saving cost for our client

Application	Electronics electrical appliances mobile phones cars
Grade	Injection Grade,Extrusion Grade
OEM/ODM	Accepted

Product Tags:


*From:	Your email address is incorrect!
*To:	Dongguan Pengchen New Materials Co., Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	PBT Plastic Material
Brand Name:	Baoli
Model Number:	PBT 3316
Certification:	MSDS
Place of Origin:	Japan
MOQ:	25KG
Price:	USD5-6.2KG
Payment Terms:	T/T
Supply Ability:	500TONS
Delivery Time:	7-15days
Packaging Details:	Plastic bag/Paper bag
Product name:	PBT 3316
Grade:	injection molding grade
Packing:	25 kg/pack
Application:	Electronic and electrical applications
Port:	ShenZhen/GuangZhou,China
Color:	natural color
