High Rigidity Other Plastic Raw Materials Electronic Shell PBT Plastic Material

Categories Other Plastic Raw Materials
Brand Name: South Korea LG
Model Number: PBT/ABS GN-5006FC
Certification: MSDS
Place of Origin: Korea
MOQ: 25KG
Price: USD1.7-2.2KG
Payment Terms: T/T
Supply Ability: 500T
Delivery Time: 7-15days
Packaging Details: PE plastic/paper bag
Product name: PBT/ABS GN-5006FC
Material Shape: Pellets
Color: Natural Color
MOQ: 1 Ton
Application: Electrical and electronic applications are
Type: 100% Virgin Material
Grade: Injection molding grade
Port: ShenZhen/GuangZhou,China
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High Rigidity Other Plastic Raw Materials Electronic Shell PBT Plastic Material

Products Description



PBT/ABS South Korea LG GN-5006FC injection grade flame retardant grade high impact and high rigidity electrical and electronic shell

Combining the advantages of the two materials: GN-5006FC is an alloy of PBT (polybutylene terephthalate) and ABS (acrylonitrile-butadiene-styrene copolymer), combining the heat and chemical resistance of PBT and the toughness and processability of ABS.
Excellent physical and chemical properties: GN-5006FC has excellent low temperature impact strength, tensile strength, thermal properties, chemical resistance, dimensional stability, its warping and brittle-toughness transition temperature is lower than PBT, the density of PBT is reduced, and the processability is good.
Wide range of applications: Due to its excellent comprehensive performance, GN-5006FC can be used in automotive, electronics, home appliances and other fields

product feature

PBT+ABS
GN5006FC
Product information
Other CertificatesMSDS
Part Marking Code>(PBT+ABS)-FR<
Material ShapePellets
ProcessInjection molding
FRV-2
Material AttributeNon Halogen
specification·UL

Application

·E&E Applications · IT equipment ·Office automation equipment
UL File NO.E248280
Certificate
Physical propertyStandardValueUnit
DensityASTM D7921.05g/cm³
ShrinkageASTM D9550.5~0.7%
Water Absorption 23℃24hrASTM D5700.08%
Melt Index 250℃ 2.16kgASTM D123814g/10min
Mechanical behaviorStandardValueUnit
Tensile Strength Yield 50mm/min 3.2mmASTM D638480kg/cm²
Elongation Break 50mm/min 3.2mmASTM D63813%
Flexural Strength 2.8mm/min 3.2mmASTM D790720kg/cm²
Flexural Modulus 2.8mm/min 3.2mmASTM D79023000kg/cm²
Izod Notch Impact 23℃3.2mmASTM D25615kg-cm/cm
ThermalStandardValueUnit
HDT Unannealed 1.8MPa 6.4mmASTM D64880
Melting TemperatureASTM D3418223
FlammabilityStandardValueUnit
Flame Rating All Color 1.5mmUL94V-2
Flame Rating All Color 3.0mmUL94V-2
ULStandardValueUnit
UL FlameRating ALL 1.5mmUL94V-2
UL FlameRating ALL 3.0mmUL94V-2
RTI Elec ALL1.5mmUL 746B60
RTI Elec ALL3.0mmUL 746B60
RTI Imp ALL1.5mmUL 746B60
RTI Imp ALL 3.0mmUL 746B60
RTI Str ALL 1.5mmUL 746B60
RTI Str ALL 3.0mmUL 746B60
Injection moldingValueUnit
Dry Temperature80
Dry Time4~6hr
Water Content Control≤0.02%
Zonel Temperature220~230
Zone2 Temperature225~235
Zone3 Temperature225~235
Nozzle Temperature230~245
Melt Temperature230~245
Mould Temperature40~60

Application


Optical lighting


It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

Electronic appliances

It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

Mechanical equipment

It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields


Physical Property Parameter​


Company Profile:


Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
our Product Range Includes Engineering Materials And General Mater

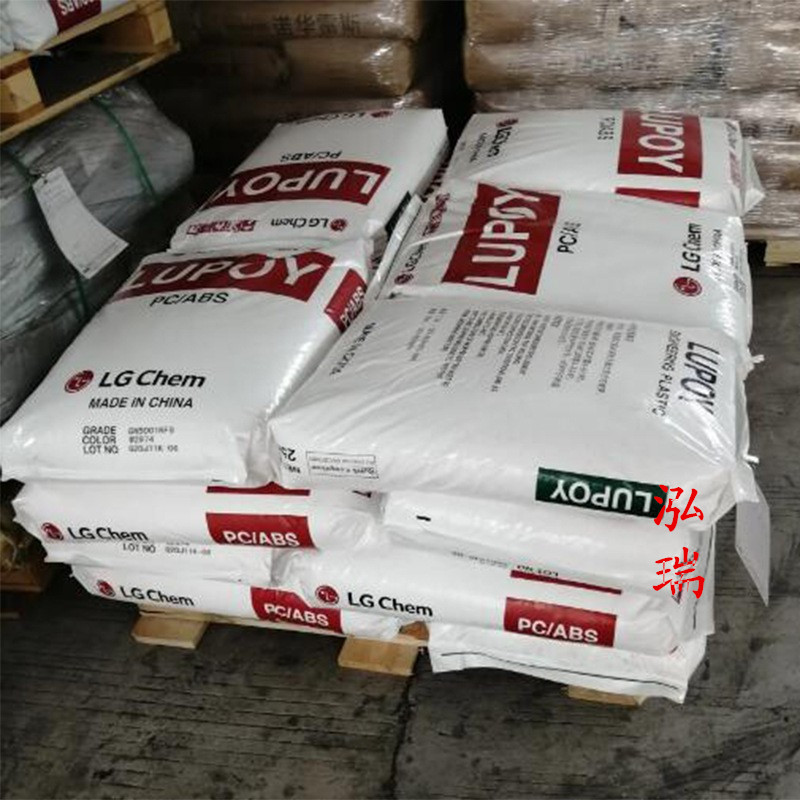

Warehouse:


FAQ
How about our package?
1.All the packing can be customized.
2.Plastic bags for inner packing, good quality moisture-proof bags for outer packing.
3.We generally make 25kgs per small bag by accurate weight, this will be very convenient for the customer using. It’s very easy to
handle the dosage.
What are our business principles?
1.For the trial order, 1tons will be acceptable.
2.We will do our best for the customer as long as you choosing us.
3.We promise to solve all the problems during trading process, our quality and the products will be approved by your side.
What are the advantages of our shipping and delivery?
1.We make sure all the products will be inspected strictly before loading.
2.We will make the shipment within 7 days after confirm the payment.
3.We will recommend the best suitable shipping company for our customer from different countries. Saving cost for our client

ApplicationElectronics electrical appliances mobile phones cars
GradeInjection Grade,Extrusion Grade
OEM/ODMAccepted
