Metal Crushing Machine Waste Rubber Shredder Tyre Shredder Machine Tyre Crushing Machine

Metal crushing machine shredder

The shredder can be customized according to the customer's needs, and the size of the shredder can be produced according to the granularity of the customer. A good product will certainly make customers satisfied.

Description of metal crushing machine shredder
Metal crushing machine shredder crushing machine tyre shredder plastic lump shredder machine can be customized according to the customer's needs, and the size of the shredder can be produced according to the granularity of the customer. A good product will certainly make customers satisfied.
Shredder is one of the main equipment in the crushing raw materials in the charcoal making production process, which Car tire shredder machineis used in the wood chip production and export bases of paper mills, particleboard mills, and fiberboard mills.,through cutting, tearing and extrusion to achieve the purpose of processing the size of the material. It has wide applicability and can process

wood, scrap steel, rubber, plastic, waste paper and other materials. Double shaft shredder can be called "universal shredder".

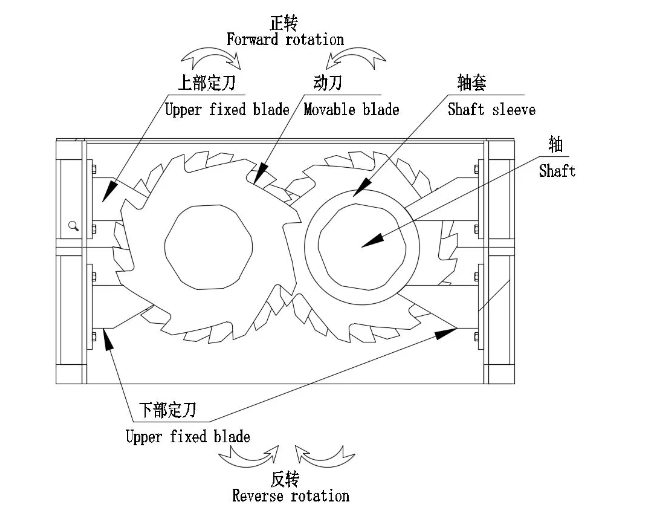

Working principles of metal crushing machine shredder :
Feeding: Materials to be processed (such as wood, plastic, metal, etc.) are sent into the crushing cavity of the shredder through the feeding port.
Cutting and tearing:
The inside of the shredder is usually equipped with rotating knife shafts, and blades are installed on the knife shafts. When the knife shafts rotate, the blades will cut and tear the materials.
Crushing process:
The materials are constantly subjected to shearing, extrusion and tearing forces under the action of the blades, and are gradually crushed into smaller fragments.
Discharging:
The crushed material fragments are discharged from the shredder through the screen or discharge port.

APPLICATION of metal crushing machine shredder

1. Metal: aluminum can bundle, steel drum, car shell, color steel tile, bicycle, copper aluminum radiator, oil filter, scrap wires, cables, aluminum composite plastic panel, steel wire rope, gas tank, iron scrap, zip-top can, engine case, paint bucket, etc.
2. Plastic: plastic pallet, plastic drum, plastic bucket, plastic film, waste appliances shell, garbage plastic drum, IBC drum, IBC barrel,garbage bag, rubbish bag, plastic pipe, washing machine, forklift pallet, lead acid battery shell, etc.
3. Textile: scrap clothes, shoes, fishing net, woven bag, ton bag, jumbo bag, fishing net bundles, dust collector bag, industrial textile waste, etc.
4. Wood: wood mattress, wood furniture, wood pallet, scrap timber, sawdust chipboard, composite board, wooden door, forklift pallet, wood board, wood template, wooden case, wooden box, wood sofa, wood bed, etc.
5. Paper: scrap paper and cartons, including scrap books, carton board, carton box, packaging box, waste newspaper, office paper, printing paper, paperboard, etc.
6. Waste Household Appliances: TV, washing machine, refrigerator shell etc.
7. Pipes: large pipes, pipe fittings, PE pipes etc.
8. Scrap tires: car tires, truck tires etc.
9.All kinds of Kitchen waste: domestic waste, rdf derivatives, medical waste,garden waste etc.

Main Features of metal crushing machine shredder
1.Heavy-duty construction and efficient performance are determined by the precisely processed combined frame made of extra-thick plates

2. Wide angle, hexagon prism of power slewing axis; large hopper with big caliber for feeding large material

3. It adopts PLC control system, automatic overload protection and auto reverse switch

4. The low rotation speed results in a particularly quiet shredding process with low levels of dust generation

5. It can be adjusted according to customer specific requirements for throughput volume, material to be processed, etc

Product Advantages of metal crushing machine shredder:

(1)The main body of the car tire shredder machine is integrally processed and welded with high-quality steel plates, with high stability.
(2)The movable knife material adopts special special alloy tool steel (H19) to ensure cutting performance and service life.
(3)The cutter shaft is processed and refined with high-strength and heavy-duty special steel, which is more reasonably matched with the cutter to provide a strong guarantee for cutting and shredding.
(4)The thickness of the cutter and the number of claws of the double-shaft shredder can be changed according to different materials.
(5)Low speed, low noise, no dust and environmental protection.

Double shaft shredder machine technical parameters
Model	2000	1600	1200	1000	800	600
Power(kw)	55*2	45*2	37*2	30*2	15*2	11*2
Speed(r/min)	30	30	30	30	30	30
Capacity(t/h)	10-25	5-15	3-10	2-10	1-5	1-3
Weight(t)	18	15	12	8	3.5	2.8
No. Of Blades(pic)	50	40	30	26	20	20
No. Of Blades(pic)	according to the particle size after crushing the object to select blade
Blade diameter(mm)	Φ550	Φ400	Φ400	Φ400	Φ300	Φ300
Output size (cm)	3-10	3-10	3-10	3-10	3-10	3-10
Output size (cm)	according to the particle size after crushing the object to select blade
Size (m)	5.52.22.9	4.52.22.4	42.12.2	321.9	31.21.8	2.91.21.8

Q1.Are the engineers available overseas?
A: Yes. We provide comprehensive after-sales services, remote guidance or live teaching, whichever you like.
Q2.MOQ As we are the manufacturer, the MOQ is one set.
Q3.Transportation A: We provide many kinds of transportation and multimodal transportation, which under customers' requirments.
Q4.Warranty A: Normally 12 months.
Q5.Packing A: Wooden cases or containers directly.
Q6.Payment
A: T/T, L/C, Western Union, etc.
Q7.Discount A: Factory direct supply, we will provide each customer the products with highest quality and best price. We will offer discounted prices during the promotion period or for the old customers.
Q8.Lead time A: According to the kinds of the machine, it will be 7-10 working days or 15-30 working days.
