Diesel Engine 26 Inch Cutter Suction Sand Dredging Machine for sale

Home > Lighting Accessories >

Diesel Engine 26 Inch Cutter Suction Sand Dredging Machine

Categories	26 inch cutter suction dredger
Model NO.:	CSD-K9
Slot Type:	CTD
Customized:	Customized
Condition:	New
Warranty:	2 Year
After-sales Service:	Lifelong
Total Weight:	360t
Total Lenght:	46m
Total Height:	2.7m
Total Width:	10.2m
Dredging Depth:	18m
Solid Capacity:	1350m3/H
Discharge Distance:	2000m
Ladder Length:	25m
Main Engine Power:	1641kw
Auxiliary Engine Power:	582kw
Engine Brand:	Cumins
Hydraulic Brand:	Rexroth or Parker
PLC Brand:	Siemens
Cutter Head Power:	450kw
Water Flow:	6000m3/H
Transport Package:	in Bulk
Specification:	26 inch cutter suction dredger
Origin:	Qingzhou. China
HS Code:	8905100000
Production Capacity:	100 Set/Year
Package Size:	3900.00cm * 860.00cm * 220.00cm
Package Gross Weight:	230000.000kg

Contact Now

Add to Cart

Company Info.

Weifang Hairui Xinsheng Environmental Protection Equipment Manufacturing Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Diesel Engine 26 Inch Cutter Suction Sand Dredging Machine

Diesel Engine 26 Inch Cutter suction Sand Dredging machine

1. product introduction :

Our factory brand cutter suction dredger has self-propelled or non self-pRopelled portable cutter suction dredger .hull adopts dismantled and re-assemble with box structure. Cutter suction dredger are made of swing winch lifting winch cutter ladder spud device deck crane hydraulic control system PLC system etc. Cutter suction dredger are used widely in sand dredging river dredging lake dredging reservoir desilting waterway dredging and port construction etc

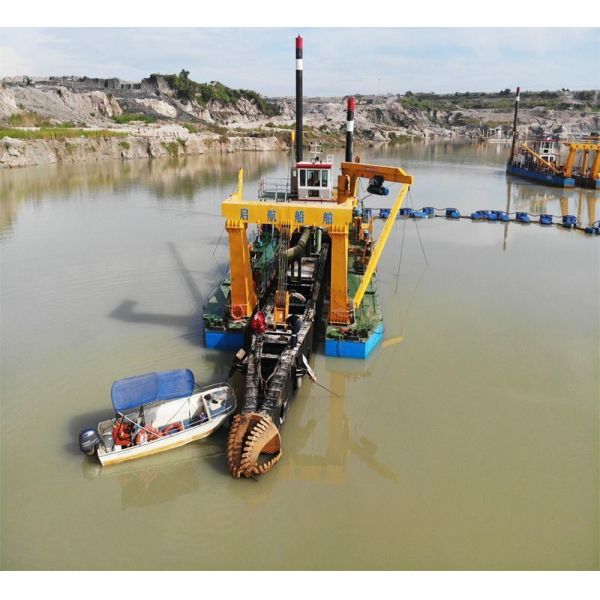

2.Dredger image:

3.26 inch parameter :

Item	Parameter
Capacity (cubic meter )	1200m3
Water flow (cubic meter )	6000m3
Maximum dredging Depth( meter)	20m
Discharge distance (meter)	2000m
Engine power and brand (kw)	2380kw
Main Engine fuel consumption (Liter)	250L
Cutter head diameter(mm)	2100mm
Cutter head power(kw)	350kw
PLC system	Siemens
Hydraulic control system	Rexorth
Slurry pump brand and type	Shijiazhuang WN500
Discharge pipe diameter (mm)	550mm
Total length (meter)	43m
Total width (meter)	9.8m
Total hight (meter)	3.6m
Total weight	460T

4.Basic parameter :

Size item	8 inch	10 inch	12 inch	14 inch	16 inch
Total length	20m	25m	26m	30m	34m
Mainly engine brand power	Cumins220kw	Cumins298kw	Cumins447kw	Cumins447kw	Cumins582kw
Auxiliary engine power	--------	--------	--------	Cumins 224kw	Cumins224kw
Harbour generator	Cumins 20KW	Cumins20KW	Cumins20KW	Cumins30KW	Cumins30KW
Max. dredging depth	8m	9m	10m	11m	13m
Discharge pipe inner diameter	200mm	250mm	300mm	350mm	400mm
Head	30m	30m	30m	45m	45m
Sand pump brand	Shijiazhuang	Shijiazhuang	Shijiazhuang	Shijiazhuang	Shijiazhuang
Water flow	800m3	1000m3	1500m3	2000m3	2500m3
Solid sand capacity	160m2	200m3	300m3	400m3	500m3
Discharge distance	800m	1000m	1200m	1500m	1500m
Cutter head diameter	1300mm	1350mm	1450mm	1450mm	1500mm
Cutter power	30kw	50kw	60kw	70kw	70kw
Displacement	65t	98t	116t	174t	180t
Hydraulic control system	PLC Siemens	PLC Siemens	PLC Siemens	PLC Siemens	PLC Siemens
Total power	244kw	318kw	467kw	701kw	836kw
Total weight	50t	60T	70T	90T	110T
Total fuel oil consumption	34L	36L	78L	105L	112L

Size item	18 inch	20 inch	22 inch	24 inch	26 inch	28 inch	32 inch
Total length	37m	38m	41m	43m	45m	47m	50m
Mainly engine brand power	Cumins895kw	Cumins895kw	Cumins1193kw	Cumins1641kw	Cummins1864kw	Cumins2380kw	Cumins3000kw
Auxiliary engine power	Cumins224kw	Cumins298kw	Cumins298kw	Cumins447kw	Cumins 582kw	Cumins720kw	Cumins1000kw
Harbour generator	Cumins30KW	Cumins40KW	Cumins40KW	Cumins50KW	Cmins75KW	Cumins75KW	Cumins103KW
Max. dredging depth	14m	15m	16m	16m	16m	17m	17m
Discharge pipe inner diameter	450mm	500mm	550mm	600mm	650mm	700mm	800mm
Head	48m	54m	57m	63m	63m	64mm	66m
dredging pump brand	Shijiazhuang	Shijiazhuang	Shijiazhuang	Shijiazhuang	Shijiazhuang	Shijiazhuang	Shijiazhuang
Water flow	3000m3	4000m3	4500m3	5000m3	6000m3	7000m3	7500m3
Solid sand capacity	600m3	800m3	900m3	1000m3	1200m3	1400m3	1500m3
Discharge distance	1500m	2000m	2000m	2000m	2000m	2200m	2500m
Cutter head diameter	1500mm	1700mm	2000mm	2050mm	2100mm	2200mm	2350mm
Cutter power	80kw	170kw	170kw	300kw	350kw	500kw	500kw
Displacement	224t	296t	302t	385t	725t	780t	1100t
Hydraulic control system	PLC Siemens	PLC Siemens	PLC Siemens	PLC Siemens	PLC Siemens	PLC Siemens	PLC Siemens
Total power	1149kw	1233kw	1531kw	2138kw	2521kw	3175kw	4103kw
Total weight	130T	180T	210T	245T	280T	320T	510T
Total fuel oil consumption	123L	179L	229L	245L	290L	365L	471L

5. Main parts introduce : Diesel Engine 26 Inch Cutter Suction Sand Dredging Machine

Main diesel engine :
Make: Cumins.
Power: 2380kw we can according to the requirements offer all size diesel engine
Rpm: 1500r/min.
Cylinders:12-16.
Feature:High efficient . full output long continuous working time. low failure.

High pressure pump:
Make:Shijiazhuang .
Water flow:6000m3/h.(3000m3-15000m3/h can available).
Pump size :WN600
Head :63m.
Capacity:1200m3/h
Discharge distance : 2000m( Booster station can available for long discharge distance )
Feature: Full power working . The biggest output . long service life .low failure.

Cutter head:
Cutter head diameter:2100mm.
Cutter head power:350kw.
Blade quantity:5.
Cutter teeth quantity :30-100 pieces ( according to the all condition to design reasonable quantity )
Materail:K10.40Cr.( we keep on innovate material )
Feature:Long service life . simple replacement.. high efficient .low failure.

6.dredger application:

Maintenance dredging/ Infrastructure dredging/ Environmental-friendly dredging/ Sand mining

RIVER DREDGING CANAL DREDGING SEAPORT DEPENING LAKE CLEANING HORBOUR MAINTENANCE DAMS DREDGING
TRAILING PONDS CLEANING......
7.service :
* Long-time after-sales service
* Rational and practical design according to customers' request
* Field site service
* Within warranty period, free repair if quality problems emerge.
* Free training of operation and maintenance.
* Supply high quality accessories in low price.
* We make an excellent filing of customers for long-term following-up service.

8.Product certification :

Set Sail dredger factory covers an area of 1500 acres with more than 200 employees.

Factory has manufacture experience more than 20 years.

More than 50 certificated engineers and technicians.

We have certification and patent more than 50 item. It contains ISO CE etc.

Set Sail dredger is sold more than 80 countries .
