9149201 9147343 For Hitachi EX120-5 EX130H-5 EX130K-5 EX135USR Excavator Parts Hydraulic PUMP MAIN PUMP PUMP DEVICE Aftermarket Original

9149201 9147343 For Hitachi EX120-5 EX130H-5 EX130K-5 EX135USR Excavator Parts Hydraulic PUMP MAIN PUMP PUMP DEVICE Aftermarket Original

9149201 9147343 For Hitachi EX120-5 EX130H-5 EX130K-5 EX135USR Excavator Parts Hydraulic PUMP MAIN PUMP PUMP DEVICE Aftermarket Original
9149201 9147343 For Hitachi EX120-5 EX130H-5 EX130K-5 EX135USR Excavator Parts Hydraulic PUMP MAIN PUMP PUMP DEVICE Aftermarket Original
Categories Excavator Hydraulic Pump
Brand Name: Hitachi
Model Number: 9149201 9147343 For Hitachi EX120-5 EX130H-5 EX130K-5 EX135USR Excavator Parts Hydraulic PUMP MAIN PUMP PUMP DEVICE Aftermarket Original
Certification: CE,ISO
Place of Origin: China
MOQ: 1 PCS
Price: Negotiable price
Payment Terms: Western Union, T/T
Supply Ability: 300pcs /Month
Delivery Time: 5-8 Weekdays
Packaging Details: Wooden case or as required
Product name: 9149201 9147343 For Hitachi EX120-5 EX130H-5 EX130K-5 EX135USR Excavator Parts Hydraulic PUMP MAIN PUMP PUMP DEVICE Aftermarket Original
Applicable machine model：: Hitachi EX120-5 EX130H-5 EX130K-5 EX135USR Excavator
Applicable Industries：: Mechanical repair shops, retail, construction, energy, mining
category: Hydraulic Pump
Condition: NEW/REBUILT
Brand: Hitachi
Contact Now
Company Info.
Guangzhou Tieqi Construction Machinery Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

9149201 9147343 For Hitachi EX120-5 EX130H-5 EX130K-5 EX135USR Excavator Parts Hydraulic PUMP MAIN PUMP PUMP DEVICE Aftermarket Original

9149201 9147343 For Hitachi EX120-5 EX130H-5 EX130K-5 EX135USR Excavator Parts Hydraulic PUMP MAIN PUMP PUMP DEVICE Aftermarket Original​

PRODUCT DESCRIPTION
Model: 9149201 9147343 For Hitachi EX120-5 EX130H-5 EX130K-5 EX135USR Excavator Parts Hydraulic PUMP MAIN PUMP PUMP DEVICE Aftermarket Original category: Hydraulic Pump
Brand: Hitachi Place of Origin:Other Country
Condition: Original & Oem Warranty: 12 months
MOQ: 1 pcs Production Capacity: 1000pcs /Month
Standard or Nonstandard: Standard Payment Term: L/C,T/T, Western Union, Tradeassurance
Delivery Time: 1-3 days (depend on order) Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS
Guarantee: We will check and send detailed pictures to buyers for confirmation

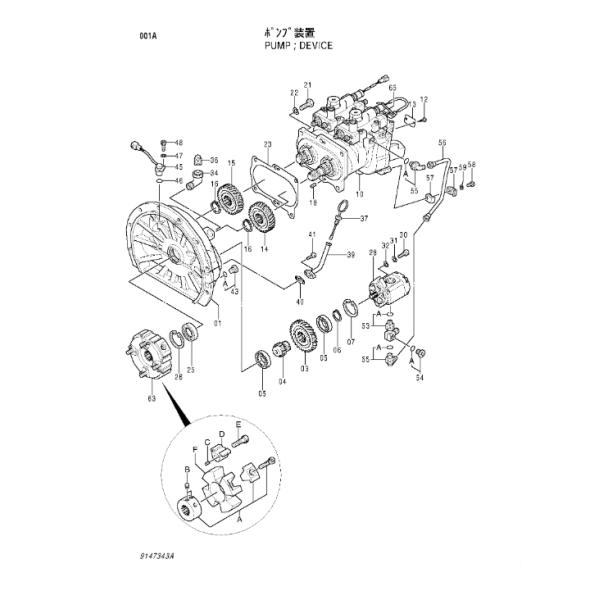

Pos. Part No Qty Parts name Comments
(9149201) [1] PUMP DEVICE
9147343 [1] PUMP DEVICE I 9149201 <for assembly of machine>;9147343A
1 1020524 [1] CASING;GEAR
3 3070066 [1] GEAR;PILOT
4 3055594 [1] SHAFT;GEAR
5 958740 [2] BRG.;BALL
6 962002 [1] RING;RETAINING
7 991725 [1] RING;RETAINING
10 +++++++ [1] PUMP;UNIT 9147342A
12 M492564 [2] SCREW;DRIVE
13 3074659 [1] NAME-PLATE
14 3070062 [1] GEAR
15 3070063 [1] GEAR
16 962002 [2] RING;RETAINING
18 4099290 [2] PIN;SPRING
21 J901445 [6] BOLT
22 A590914 [6] WASHER;SPRING
23 8060011 [1] PACKING
25 4340328 [1] SEAL;OIL
26 930451 [1] RING;RETAINING
28 4276918 [1] PUMP;GEAR 0450900B
30 M341028 [2] BOLT;SOCKET
31 984054 [2] WASHER;SPRING
32 4114402 [2] WASHER
34 94-0649 [1] ELBOW
36 4234782 [1] PLUG
37 4242263 [1] GAUGE;LEVEL
39 9745521 [1] PIPE
40 9742779 [1] PACKING
41 M340816 [2] BOLT;SOCKET
43 9134111 [1] PLUG
43A. 4509180 [1] O-RING
45 4265372 [1] SENSOR;REVOL.
46 4306888 [1] O-RING
47 A590106 [1] WASHER;PLANE
48 M340616 [1] BOLT;SOCKET
53 4278547 [1] ADAPTER
53A. 4506418 [1] O-RING
54 9134110 [1] PLUG
54A. 957366 [1] O-RING
55 4179837 [2] FITTING;PIPE
55A. 957366 [1] O-RING
56 3071962 [1] PIPE
57 9736515 [2] CLAMP
58 J900830 [1] BOLT
59 A590908 [1] WASHER;SPRING
63 4340275 [1] COUPLING
63A. 4366376 [1] HUB
63B. 4334899 [2] SCREW;SET
63C. 4101345 [4] PIN;SPRING
63D. 4334892 [4] INSERT
63E. 4334894 [4] BOLT;SOCKET
63F. 4334891 [1] ELEMENT
65 4055311 [1] CLIP;BAND

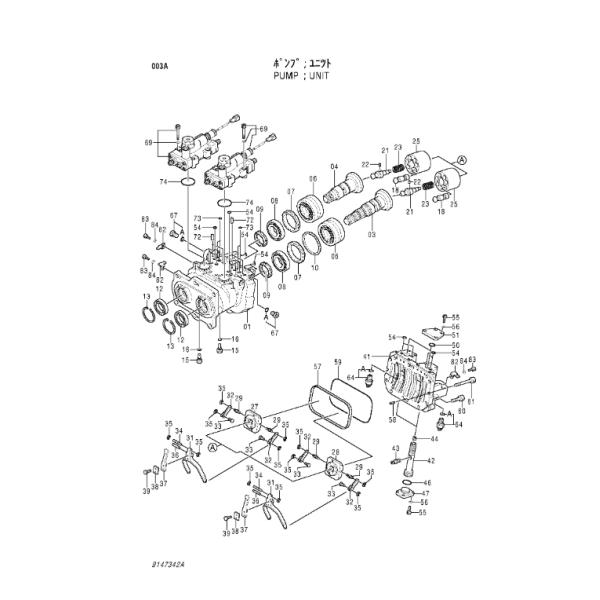

Pos. Part No Qty Parts name Comments
+++++++ [1] PUMP;UNIT 9147342A
1 1020513 [1] CASING;PUMP
3 2036963 [1] DISC;DRIVING
4 2036965 [1] DISC;DRIVING
6 4339254 [2] BRG.;ROL.
7 4348299 [2] RING
8 4338325 [2] BRG.;ROL.
9 4180790 [2] NUT;BRG.
10 4331993 [1] RING;THRUST
12 4340358 [2] SEAL;OIL
13 4086775 [2] RING;RETAINING
15 4233165 [2] PLUG
16 957366 [2] O-RING
18 9742464 [14] PISTON
21 4339296 [2] SHAFT;CENTER
22 4198956 [2] PIN
23 4180786 [2] SPRING;COMPRES.
25 2036958 [2] ROTOR
27 2036441 [1] VALVE
28 2037013 [1] VALVE
29 4179179 [4] PIN
31 3069960 [2] LINK
32 9724756 [4] LEVER
33 4179177 [4] PIN
34 4179176 [2] PIN
35 4146370 [12] RING;RETAINING
36 4200227 [2] PIN
37 4355872 [2] LEVER
38 4358324 [2] PLATE;LOCK
39 J900616 [4] BOLT
41 1020401 [1] HEAD
42 3068226 [2] PISTON;SERVO
43 4330909 [2] PIN
44 4179838 [2] SCREW;SET
46 4355081 [2] O-RING
47 4330951 [2] STOPPER
50 4355080 [2] O-RING
51 4330950 [2] STOPPER
54 4180349 [20] O-RING
55 M340825 [16] BOLT;SOCKET
56 4514388 [16] WASHER;SPRING
57 3071500 [1] RING;BACK-UP
58 4099290 [2] PIN;SPRING
59 4345061 [1] O-RING
60 M341245 [10] BOLT;SOCKET
61 M341290 [2] BOLT;SOCKET
64 4355012 [2] SENSOR;PRES.
64A. 4365826 [1] O-RING
67 9134110 [2] PLUG
67A. 957366 [1] O-RING
69 (9149230) [2] REGULATOR<for transportation> &lt;for transportation&gt;
69 9147341 [2] REGULATOR I 9149230 9147341&lt;for assembly of machine&gt;
72 4515041 [4] PIN;SPRING
73 4343074 [4] O-RING
74 4348665 [2] O-RING
82 4252767 [3] BRACKET
83 M340613 [3] BOLT;SOCKET
84 4169516 [3] WASHER;SPRING
