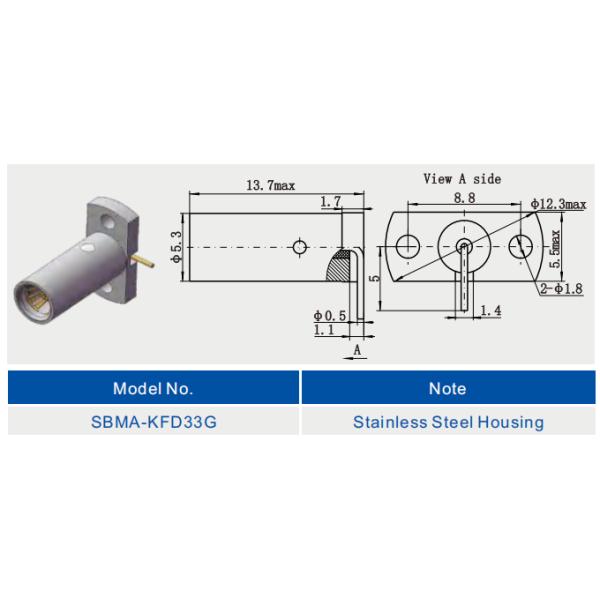

SBMA Straight Stainless Steel Right Angle Pin RF Coaxial Connector

SBMA Straight Stainless Steel Right Angle Pin RF Coaxial Connector​

Product Detail

Environmental Specification:

Features:
1. Reliable connection: blind plug structural design, no need for complex alignment operations when connecting, just insert the plug into the socket to complete the connection, simple and convenient operation, and the connection is firm and reliable, can withstand a certain degree of vibration and shock.
2. Long mechanical life: the general mechanical life of SBMA connectors can reach more than 500 times, and some products are even higher, which can meet the requirements of long-term frequent plugging and unplugging.
3. High degree of standardization: SBMA series RF coaxial connectors follow the relevant international standards and national standards for production and testing, to ensure that the connectors produced by different manufacturers have good compatibility and interchangeability.

Application:
1. RF test equipment: In the test and measurement process of RF signals, it is necessary to use high-precision connectors to connect the test instrument and the device under test.SBMA connectors have good electrical performance and mechanical stability, which can meet the requirements of RF test equipment for signal transmission accuracy and stability, and they are widely used in vector network analyzers, spectrum analyzers and other RF test instruments.
2. General electronic measurement instruments: In addition to RF test equipment, other general electronic measurement instruments, such as oscilloscopes, signal generators, etc., may also use SBMA connectors to connect external signal sources or circuits under test to realize signal input and output.

NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
