4 Seater Electric Golf Cart With Rear Small Cargo CE Approved

Categories Electric Patrol Car
Brand Name: Excar
Model Number: A1S4
Certification: CE
Place of Origin: China
MOQ: 1 unit
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: Negotiable
Delivery Time: 20 days
Origin: Dongguan Guangdong China
Model: A1S4
Specification: 48V electric golf cart
Power Fuel: Electric
Gradeability: 20-30%
Color: Any Color Available
Transport Package: Wood or Steel Via LCL or FCL
Suitable for: Golf Course, Villa, Holiday Village, Tourist Area
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

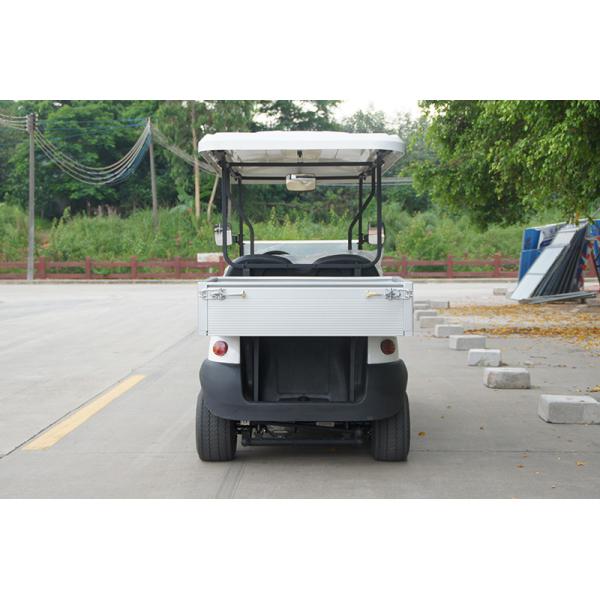

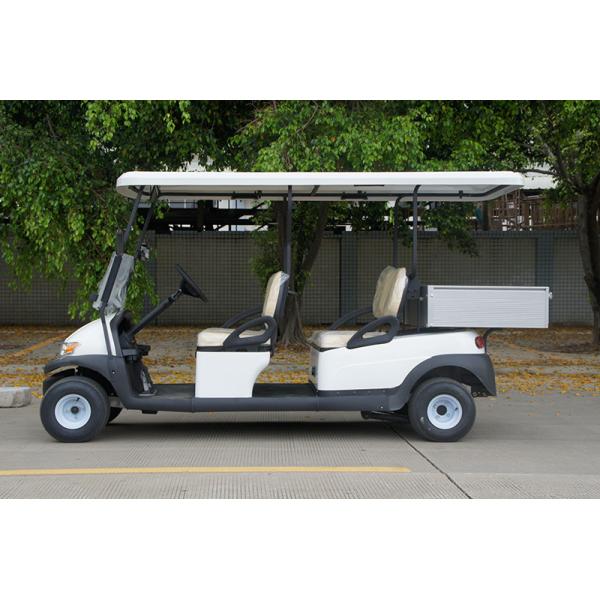

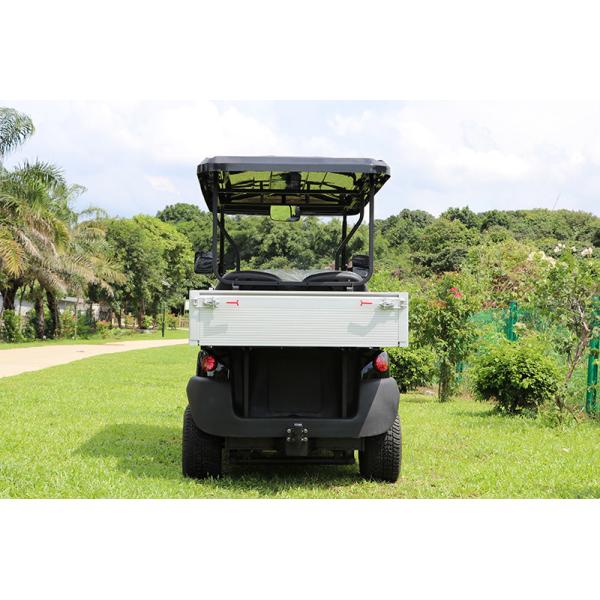

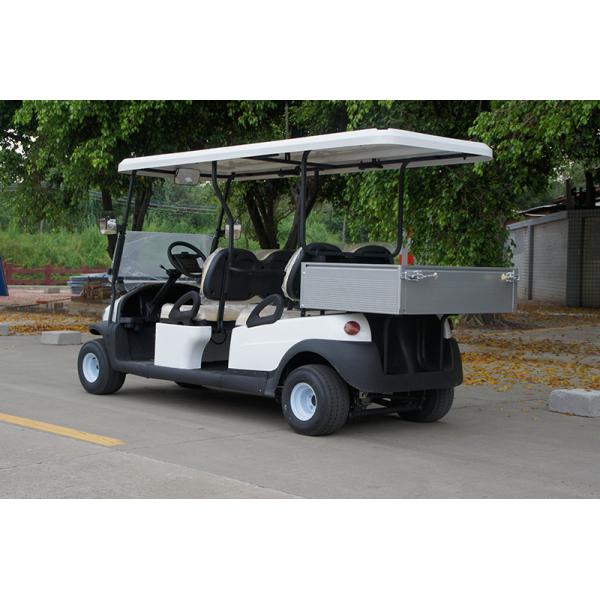

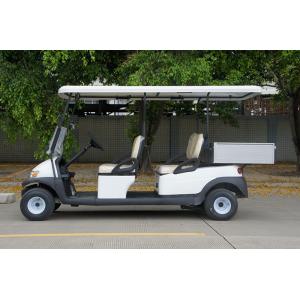

4 Seater Electric Golf Cart With Rear Small Cargo CE Approved

Dimensions

ItemDescription
Overall dimensions (L x W x H)3175x1219x1727mm
Ground clearance114mm
Wheelbase2490mm
Front wheel tread (mm)860mm
Rear wheel tread (mm)970mm

Performance


ItemDescription
systemDC systemAC system
Passenger Capacity44
Climbing capacity(full load)30%35%
Max. forward speed23km/h45km/h
Endurance mileage70-90km80-90km
Charging time8-10 hours8-10 hours
Max. loading weight360kgs360kgs
Min. turning radius3.9m3.9m
Max. movement after brake at speed of 20km/h≤4m≤4m

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.


Electric System

ItemDescription
Lights48V, LED headlight (includes turning light and position light),
LED taillights (includes brake lights and turning light),
HornElectric horn, 48V
Reverse buzzerElectric, 48V
Combination switchControl the lights and horn
Digital Meter (optional)Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock

Steering & suspersion

ItemDescription
Steering SystemSelf-adjusting rack and pinion steering system,
with automatic compensation function
Brake SystemRear wheel mechanical brake
AcceleratorHolzer type, stepless speed change
Front suspensionMcpherson independent spring suspension
Rear suspensionCoil spring hydraulic shock absorber
Driving modelRear axle two stage deceleration, motor direct driving
Wheel & TyreAluminum wheel & USA Carlisle 18*8.5-8 6 layers

Specification


1. Type sofa chair, comfortable

2. Efficient Italy graziano driving axle

3. FR/disc RR/drum, safety golf cart’s higher driving ability

4. Advanced Disc Brake Technology

5. USA Imported Unique E-KEY

6. 100% Waterproof accelerator

7. Special Design Battery Tray

8. Golf cart, sightseeing car, classic car, patrol car, housekeeping car, cargo car, utility car, security series

48V lithium Battery Powered Electric Golf Car EXCAR A1S2+2 White 5

48V lithium Battery Powered Electric Golf Car EXCAR A1S2+2 White 4
