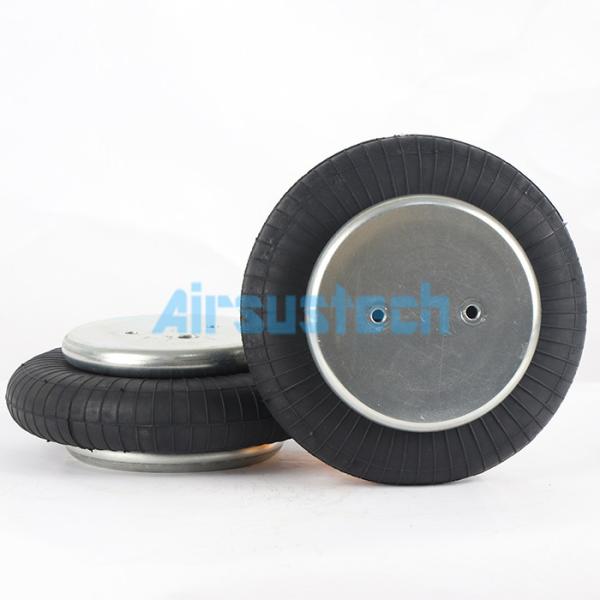

Convoluted Air Spring Weforma WBE 300-E2 Air Suspension Dunlop 8''x1 S08100

Categories Convoluted Air Spring
Brand Name: AIRSUSTECH
Model Number: 1B1209
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou,China
MOQ: 1
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal or Others
Supply Ability: 1000PCS/Week
Delivery Time: 5-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Brand: AIRSUSTECH
Product Number: 1B1209
Firestone: W01-M58-6166
Bosch: 822419008
Quality Assurance: 12 Months
Compressed Height: 50 MM
Air Connection: G1/4
Type: Single Convoluted
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Convoluted Air Spring Weforma WBE 300-E2 Air Suspension Dunlop 8''x1 S08100

Convoluted Air Spring Weforma WBE 300-E2 Air Suspension Dunlop 8''x1 S08100


Product Detailed Datas


Cover Plate
Top Cover Plate Diameter135 mm
Screw Center Distance of Top Cover Plate70 mm
Bottom Cover Plate Diameter135 mm
Screw Center Distance of Bottom Cover Plate70 mm
Nut/Blind Nuts
Top Cover Plate Screw(Nut) Tooth2×M8×1.25
Bottom Cover Plate Screw(Nut) Tooth2×M8×1.25
Gas Hole/Air Inlet/Air Fitting
Air ConnectionG1/4
Rubber Bellow
Rubber Bellow Max. Diameter215 mm
Compressed Height50 mm
Max. Expanded Height115 mm

Vibration isolation - dynamic characteristics

Design height H: recommend 240mm, minimum 220mm

Pressure p [bar]345678
Force (Load) [kN]3.95.36.88.39.610.9
Spring Rate [N/mm]131516201925223025352840
Natural Frequency [Hz]2.92.82.72.62.62.6

Pneumatic application - static characteristics values

Force F [kN]

Pressure p[bar]345678
Height H [mm]1203.14.35.66.98.08.2
1103.95.36.88.39.610.9
1004.56.17.99.711.012.4
905.06.88.910.812.213.8
805.57.49.711.613.315.0
705.97.910.312.314.216.0
606.38.210.713.015.017.0

1B1209 Repalces These Air Bellows/Air Balloons


Weforma Air Spring: WBE 300-E2

Weforma Air Spring: WBE 300E2

Weforma Air Spring: WBE 300 E2

Firestone Air Spring: W01-M58-6166

Firestone Air Spring: W01 M58 6166

Firestone Air Spring: W01M586166
Dunlop(FR) Air Spring: 8''x1 S08100

Dunlop(FR) Air Spring: 8'x1 S08100

Dunlop(FR) Air Spring: 8x1 S08100
Bosch Air Spring: 822419008

We Have Single Convoluted Type Air Suspensions
1B12-305FS 40-6 CISP2906
1B14-350FS 50-5 CISP2334
1B14-352FS 70-7 CISP2913
1B14-364FS 100-10 CISP1536
1B15-376FS 120-10 CISP1537
1B15-378FS 120-12 CISP2523
1B12-313FS 200-10 CISP1540
1B14-351FS 310-12 CISP1543
1B14-362FS 330-11 CI
1B15-377FS 330-14 CI
1B15-375FS 530-11 CI
FS 530-14 CI
FS 960-12 CI
FS 1330-11 CI

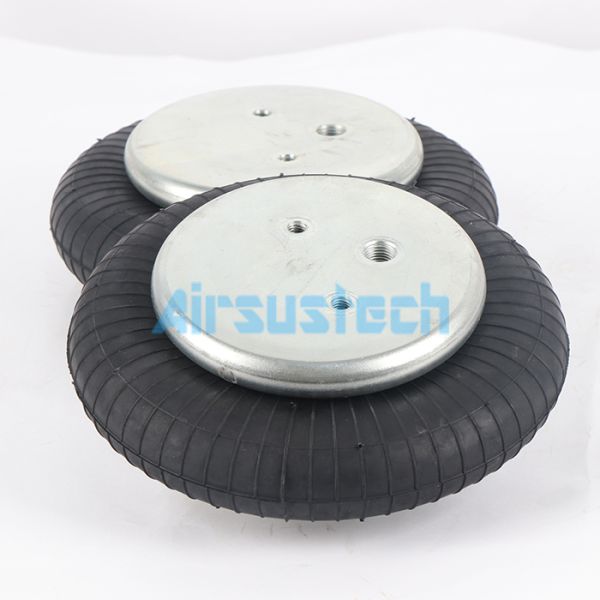

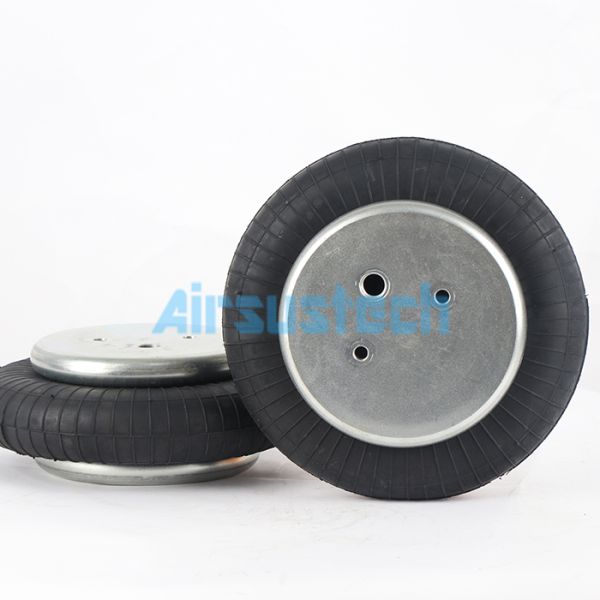

The Detailed Pictures of 1B1209
