Weforma WBE 300-E1 Convoluted Air Shock Suspension Cross Firestone W01-M58-6165

Categories Convoluted Air Spring
Brand Name: AIRSUSTECH
Model Number: 1B1209
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou,China
MOQ: 1
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal or Others
Supply Ability: 1000PCS/Week
Delivery Time: 5-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Supplier: AIRSUSTECH
Product Number: 1B1209
Full Stroke: 65 MM
Type: Single Convoluted
Air Connection: G3/4
OEM Number: Airtech 140293
Warranty: One Year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Weforma WBE 300-E1 Convoluted Air Shock Suspension Cross Firestone W01-M58-6165

Weforma WBE 300-E1 Convoluted Air Shock Suspension Cross Firestone W01-M58-6165


1B1209 Technical Datas


  • Bottom Cover Plate

Bottom Plate Alignment: Parallel
Bottom Plate Center To Center Diameter: 70 mm
Bottom Plate Diameter: 135 mm
Bottom Plate Hole Quantity: 2
Bottom Plate Type: Steel

  • Top Cover Plate

Top Plate Alignment: Parallel
Top Plate Center To Center Diameter: 70 mm
Top Plate Diameter: 135 mm
Top Plate Hole Quantity: 3
Top Plate Type: Steel

  • Rubber Bellow

Bellow Maximum Diameter: 215 mm
Expanded Height: 115 mm
Compressed Height: 50 mm
Spring Type: Single Convoluted
Air Hole/Air Inlet/Gas Hole/Gas Fitting
Air Inlet: G 3/4
Nut/Blind Nuts Type: 2×M8×1.25


OEM Cross References


Firestone W01-M58-6165
Contitech FS 120-9
Dunlop 8''x1, S08101
Bosch 822419003
Festo EB-215-80
Norgren PM/31081(8x1)
Weforma WBE 300-E1
Airtech 140293
Airtech 111003/1B-190FB
Megatech 1S120-9 3/4 M8

Product Core Competitiveness


1. Imported rubber
It is smelted with advanced sol technology, which improves the acid resistance, corrosion resistance and longer life of the product.


2. One-piece casting process
Adopt one-piece casting process, durable, strong air tightness, anti-leakage, high density of skin, anti-burst.


3. Ensure in-situ installation
The shape and size are the same as the original, directly replace the original air spring, no need to change, easy to install.


4. Using high-quality steel
Made of high-quality steel, anti-fracture, corrosion-resistant, long service life.


Other Single Convoluted Air Springs OEM Numbers


1B12-305FS 40-6 CISP2906
1B14-350FS 50-5 CISP2334
1B14-352FS 70-7 CISP2913
1B14-364FS 100-10 CISP1536
1B15-376FS 120-10 CISP1537
1B15-378FS 120-12 CISP2523
1B12-313FS 200-10 CISP1540
1B14-351FS 310-12 CISP1543
1B14-362FS 330-11 CI
1B15-377FS 330-14 CI
1B15-375FS 530-11 CI
FS 530-14 CI
FS 960-12 CI
FS 1330-11 CI

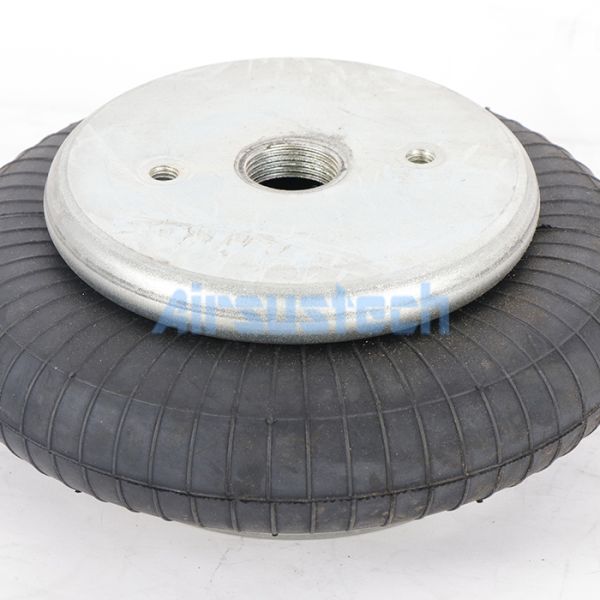

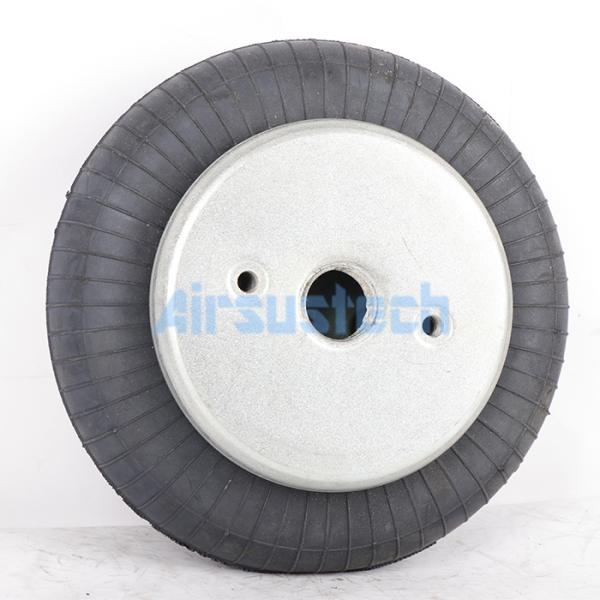

Product Images



Company Profile


Guangzhou Guomate Air Spring Co., Ltd. is located in Guangzhou, China's first open port, just a fifteen-minute drive from Guangzhou Baiyun International Airport. The company boasts a modern building with an area of ​​approximately 20,000 square meters and state-of-the-art production facilities for rubber air springs. It is currently the largest air spring production base in China. The company's products are primarily used in commercial vehicles, rail vehicles, and industrial machinery and equipment. The main products are: rubber air springs, bus airbags, truck airbags, air springs for the paper machine industry, airbags for large washing machines, and rubber air springs for automobiles. We currently offer hundreds of models and designs and can also design and produce according to customer requirements or existing product specifications. New and existing customers are welcome to contact us for a consultation. Our company utilizes state-of-the-art domestic air spring processing facilities and integrates foreign air spring production technologies. Thanks to our unique production process, we produce according to international standards and thus create world-class products.
