| Categories | Low Voltage Cable |
|---|---|
| Brand Name: | Low Voltage Electrical Wire |
| Certification: | IEC,CE,CCC,ISO |
| Place of Origin: | Hebei，China |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | ,L/C,T/T |
| Supply Ability: | 100KM/Week |
| Delivery Time: | 7-30 days based on different Qty |

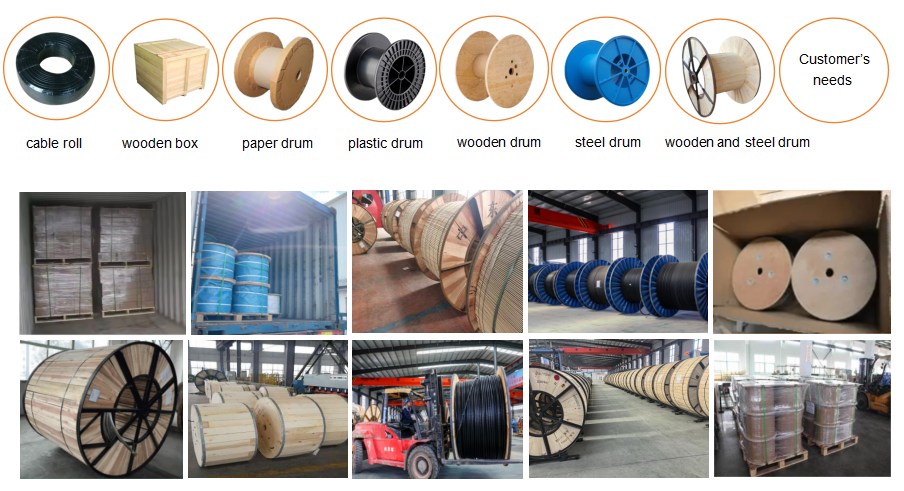

| Packaging Details: | Iron-wooden Drum or Whole Wooden Drum |
| Voltage: | 600V, 1000V |
| Standard: | IEC60502-1 |
| Feature: | LSZH |
| conductor: | Copper or Aluminium |
| Type: | XLPE insulated, PVC sheath, PVC Jacket |
| Armour: | Steel Wire |
| Company Info. |
| Zhongdong Cable Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Suitable for use in power distribution lines with rated voltage 0.6/1KV. For laying in shaft, water underground and large difference of level, able to bear external mechanical pressure and moderate pulling force.
Conductor:Circular, solid, compacted or sector shaped stranded Copper or aluminum
Insulation:XLPE
Filler: Non-hygroscopic material
Inner sheath: PVC
Armouring: Steel Wire
Outer Sheath PVC
Specification
|
Specs |
Conductor diameter |
Nominal thickness of insulation |
Lining thickness |
Nominal thickness of steel wire |
Nominal thickness of sheath |
Approximate outer diameter of cable |
Approximate cable weight |
|
|
Stainless steel wire armor |
Aluminum wire armor |
|||||||
|
1×10 |
4 |
1 |
1 |
0.8 |
1.4 |
13.1 |
353 |
/ |
|
1×16 |
5 |
1 |
1 |
0.8 |
1.4 |
14.1 |
437 |
/ |
|
1×25 |
6.1 |
1.2 |
1 |
0.8 |
1.4 |
15.6 |
571 |
/ |
|
1×35 |
7.2 |
1.2 |
1 |
0.8 |
1.4 |
16.7 |
690 |
/ |
|
1×50 |
8.4 |
1.4 |
1 |
1.25 |
1.5 |
19.4 |
1003 |
775 |
|
1×70 |
10 |
1.4 |
1 |
1.25 |
1.5 |
21 |
1256 |
1002 |
|
1×95 |
12 |
1.6 |
1 |
1.25 |
1.6 |
23.7 |
1613 |
1320 |
|
1×120 |
13 |
1.6 |
1 |
1.6 |
1.7 |
25.6 |
2021 |
1627 |
|
1×150 |
14.9 |
1.8 |
1 |
1.6 |
1.7 |
27.9 |
2409 |
1961 |
|
1×185 |
16.5 |
2 |
1 |
1.6 |
1.8 |
30.1 |
2845 |
2365 |
|
1×240 |
18.4 |
2.2 |
1 |
1.6 |
1.9 |
32.6 |
3520 |
2987 |
|
1×300 |
21 |
2.4 |
1.2 |
2 |
2 |
37.2 |
4542 |
3792 |
|
1×400 |
23.4 |
2.6 |
1.2 |
2 |
2.1 |
40.3 |
5547 |
4714 |
|
1×500 |
26.6 |
2.8 |
1.2 |
2 |
2.2 |
44.1 |
6788 |
5871 |
|
1×630 |
30 |
2.8 |
1.2 |
2 |
2.4 |
47.9 |
8293 |
7293 |
Voltage Rating: Uo/U:0.6/1kV Um:1.2kV
Maximum operating temperature of conductor:+70℃
Operating ambient temperature: -20℃~+45℃
Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
Minimum Bending Radius: Single core:15D multi core:12D (D is the actual outer diameter of the cable)
Q: Are you the trading company or Manufacturer?
A: We are the manufacturer, and we supply the factory price to you.
Q: How long does it take to get a quote back?
A: Most quotes are returned within 24 hours.
Q: What's your payment terms?
A: T/T,L/C,Western Union,etc.
Q: Do you offer free sample?
A: Yes, we offer free sample, but freight collect.
Q: How long can I expect to get the sample?
A: After you pay the freight charge , the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 days.
Q: Where is your factory?
A: Our factory is located in Yingli, HeBei, China. If you want to visit our company, we will arrange everything for you.
Q:What the warrenties do your products carry?
A: We guarantee all of our products, wires and cables, are free from defects. We will take back any product that does not meet the agreed quality by both parties.
|
