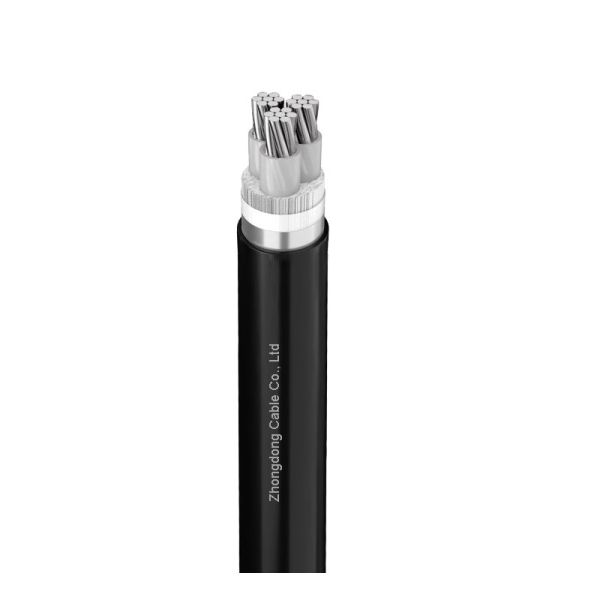

Aluminium Conductor Medium Voltage Cable 3 Core Steel Tape Armoured 21/35kV

Aluminium Conductor Medium Voltage Cable 3 core Steel Tape Armoured AL/XLPE/PVC/ 21/35kV

Application

This product is used in power grids or industrial installations with a rated voltage of 35kV or below. Having a job
High temperature, large current carrying capacity, simple structure, light weight, unrestricted installation by drop, medium
Features such as minimal damage, resistance to chemical corrosion and environmental stress, and easy maintenance.

Construction

Conductor:Class 2 Aluminium/Copper circular, stranded
Conductor Screen:Semi-conductive XLPE (Cross-Linked Polyethylene)
Insulation :XLPE (Cross-Linked Polyethylene)
Insulation Screen :Semi-conductive XLPE (Cross-Linked Polyethylene)
Tape Plastic tape is applied over the screen
Filler Extruded polymeric material
Bedding PVC (Polyvinyl Chloride)
Armour :STA (Galvanized Steel Wire Armoured)
Sheath :Extruded PVC (Polyvinyl Chloride) type ST2


Product parameters 	 			Specification
 			Outer diameter
 			Approx. outer diameter of cable
 			Approx. weight of cable
 			Max. D.C. resistance of conductor at 20℃

 			mm2
 			mm
 			mm
 			kg/km
 			Ω/km




 			Cu
 			Al
 			Cu
 			Al

 			3×50
 			8.4
 			80.4
 			10082
 			9222
 			0.387
 			0.641

 			3×70
 			10
 			84.1
 			11219
 			9979
 			0.268
 			0.443

 			3×95
 			11.5
 			87.6
 			12487
 			10762
 			0.193
 			0.32

 			3×120
 			13
 			92
 			13784
 			11611
 			0.153
 			0.253

 			3×150
 			14.5
 			94.4
 			14923
 			12236
 			0.124
 			0.206

 			3×185
 			16.2
 			98.8
 			16650
 			13294
 			0.0991
 			0.164

 			3×240
 			18.4
 			103.3
 			18842
 			14427
 			0.0754
 			0.125

 			3×300
 			20.5
 			108.2
 			21293
 			15746
 			0.0601
 			0.1

 			3×400
 			23.5
 			114.7
 			24939
 			17862
 			0.047
 			0.0778
