PVC Insulated AWA Armoured Control Cable 3 Core Electrical Cable Low Voltage

PVC Insulated AWA Armoured Electrical Cable Three Core Control Cable

Application

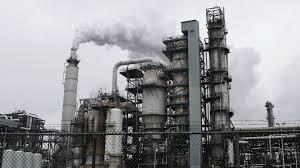

PVC-armored control cables are commonly used in environments requiring mechanical protection and resistance to harsh conditions, such as Factories, plants, and automation systems where cables are exposed to abrasion, impacts, or vibrations,Chemical plants, oil refineries, and mining sites needing corrosion and moisture resistance.

Construction

1. Conductor: Circular, solid, compacted or sector shaped stranded Coppe
2. Insulation:PVC
3. Filler:Non-hygroscopic material
4. Binder tape: Non-hygroscopic material
5. Amour: steel tape
6. Sheath: PVC

Description

1. Rated voltage 450/750V or less,The control cable can be made as flame retardant when customer required.
2. Laying Temperature:during laying environment temperature shall not be less than 0℃,the cable should be preheated.
3. Operating Temperature:max permissible continuous operating temperature of conductor shall not exceed 70℃.
4. Bending Radius:16D for armored cable

Zhongdong Cable Co., Ltd. is a professional cables and wires manufacturer in China since 2006, the company covers an area of over 38000 square meters, 30 advanced cable production lines and 40 sets of testing equipment, we have a strong R&D ability with almost 100 Senior technical personnel team.

 As a ISO9001-2008 and ISO14001 - 2004 certified company, we have been committed to providing high-quality, reliable, and innovative cable solutions to meet the needs of customers in various fields.and built an outstanding reputation within the industry.

 We are specialized in the production of 0.6-110kV power cables, ABC Cable,Bare Conductor,Rubber Cable,Control Cable,MC Cable,Electrical Wire and Solar Cable etc. We can provide cables that comply with GB, IEC, BS, ICEA, ASTM, DIN, VDE, and JIS standards, as well as various special wires and cables that are flame retardant, fire-resistant, waterproof, oil resistant, low smoke, halogen-free, and environmentally friendly. We can also develop, design, and manufacture the required cables according to your requirements.

 We always adhere to the business philosophy of quality first, customer first, integrity and compliance, and win-win development, constantly pursuing excellence and creating greater value for our customers. Please contact us for better cables and for a better future.
