| Brand Name: | HANYU |
| Model Number: | TYDJ-80 |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 2set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50sets/month. |
| Delivery Time: | 15-35days |
| Packaging Details: | Case |
| Type: | TYDJ Cableway puller |
| Rated power: | 30kw |
| Rated speed (round/min): | 2600 |
| Weight: | 885kgs |
| Meas.: | 1730x1500x1050mm |
| Pull force: | 84kN |
| Company Info. |
| Wuxi Hanyu power equipment co.,ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

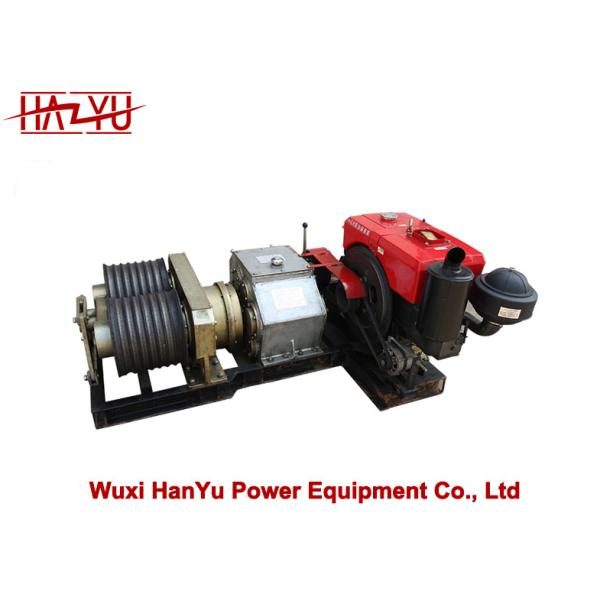

Overhead Line Stringing Tools TYDJ-80 Cableway Puller 30kw Rated Power
| TYDJ Cableway puller | ||||||||
| Cableway puller is a kind of engineering machinery specially designed to the requirements of the cableway transportation construction. It is a kind of ideal puller equipment for overhead transportation in the mountainous areas without electricity. | ||||||||
| Model | Gear | Rope speed (meter/min) | Pull force (KN) | Rated power | Rated speed (round/min) | Weight (kgs) | Meas.(mm) | |
| TYDJ-80 | Drive | I | 15 | 84 | 30kw | 2600 | 885 | 1730x1500x1050 |
| II | 37 | 35 | ||||||
| III | 51 | 25 | ||||||
| IV | 123 | 10 | ||||||
| Reverse | I | 31 | 40 | |||||
| II | 103 | 12 | ||||||
| Diesel engine water cooled; Electric start; Wheel base diameter: 326mm; Groove no.: 6; Applicable steel rope diameter 16~18mm | ||||||||
| TYDJ-50 | Drive | I | 18 | 34.4 | 27kw | 2200 | 938 | 1450x1300x800 |
| II | 31 | 31 | ||||||
| III | 59 | 15 | ||||||
| Reverse | I | 18 | 34.4 | |||||
| II | 31 | 31 | ||||||
| III | 59 | 15 | ||||||
| Diesel engine water cooled; Electric start; Wheel base diameter: 300mm; Groove no.: 6; Applicable steel rope diameter 16~18mm | ||||||||

|
