| Categories | Gas Detector Sensor |
|---|---|
| Brand Name: | KACISE |
| Model Number: | KAN108 |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | 1000 Piece/Pieces per Week negotiable |
| Delivery Time: | 5-8 work days |
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Detection Principle and Gases: | Electrochemical/Infrared/Photoionization/Catalytic Combustion, Multi - in - one |
| Detection Range and Sampling Method: | Diffusion type, see gas type table and product nameplate |
| Communication Distance: | Two - wire bus ≤ 500m (RVSP2.5mm²) |
| Electrical Interface: | G3/4" internal thread |
| Explosion - proof Mark and Protection Level: | Ex db IIC T6 Gb : Ex tb IIIC T80°C Db IP66/IP67 |
| Communication Method: | TBUS two - wire bus |
| Company Info. |
| Xi'an Kacise Optronics Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

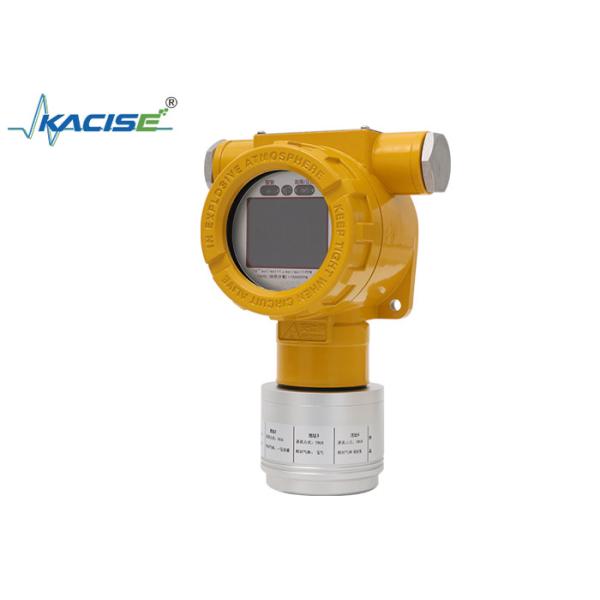

KAN108 Toxic and Hazardous Gas Detection (Alarm) (Multi - function)
Product Introduction
The detector features a high level of integration, which can fully meet the actual needs of various scenarios. It is highly responsive and has strong anti - poisoning capabilities. This new - style five - in - one industrial gas detector allows for free combinations of multiple sensors.
Product Description
| Detection Principle and Gases | Detection Range and Sampling Method | Operating Voltage and Power | Communication Distance |
| Electrochemical/Infrared/Photoionization/Catalytic Combustion, Multi - in - one | Diffusion type, see gas type table and product nameplate | DC24V ± 6V Normal power consumption ≤ 1.5W (DC24V) Alarm power consumption ≤ 3W (DC24V) | Two - wire bus ≤ 500m (RVSP2.5mm²) |
| Electrical Interface | Explosion - proof Mark and Protection Level | Output Capacity | Communication Method |
| G3/4" internal thread | Ex db IIC T6 Gb : Ex tb IIIC T80°C Db IP66/IP67 | 2 sets of passive switch outputs: 220VAC/24VDC, 2A 1 set of active audible and visual alarm output | TBUS two - wire bus 485 bus |
| Alarm Value | Operating Temperature and Humidity | Display Method | Specification |
| 25% LEL - 50% LEL (factory - set value) | -40°C - +70°C (for combustible gases) -10°C - +55°C, ≤ 93%RH | 2.1 - inch high - brightness color LED display screen 4 - digit 8 - segment digital + graphic display | Cast aluminum ≤ 1.5Kg, 206×165×80 |
|
